Spare parts > Husqvarna > BRUSHCUTTERS/CLEARING SAWS > 243 RJ 243 RJ, 2009-03 > CYLINDER PISTON
Back to

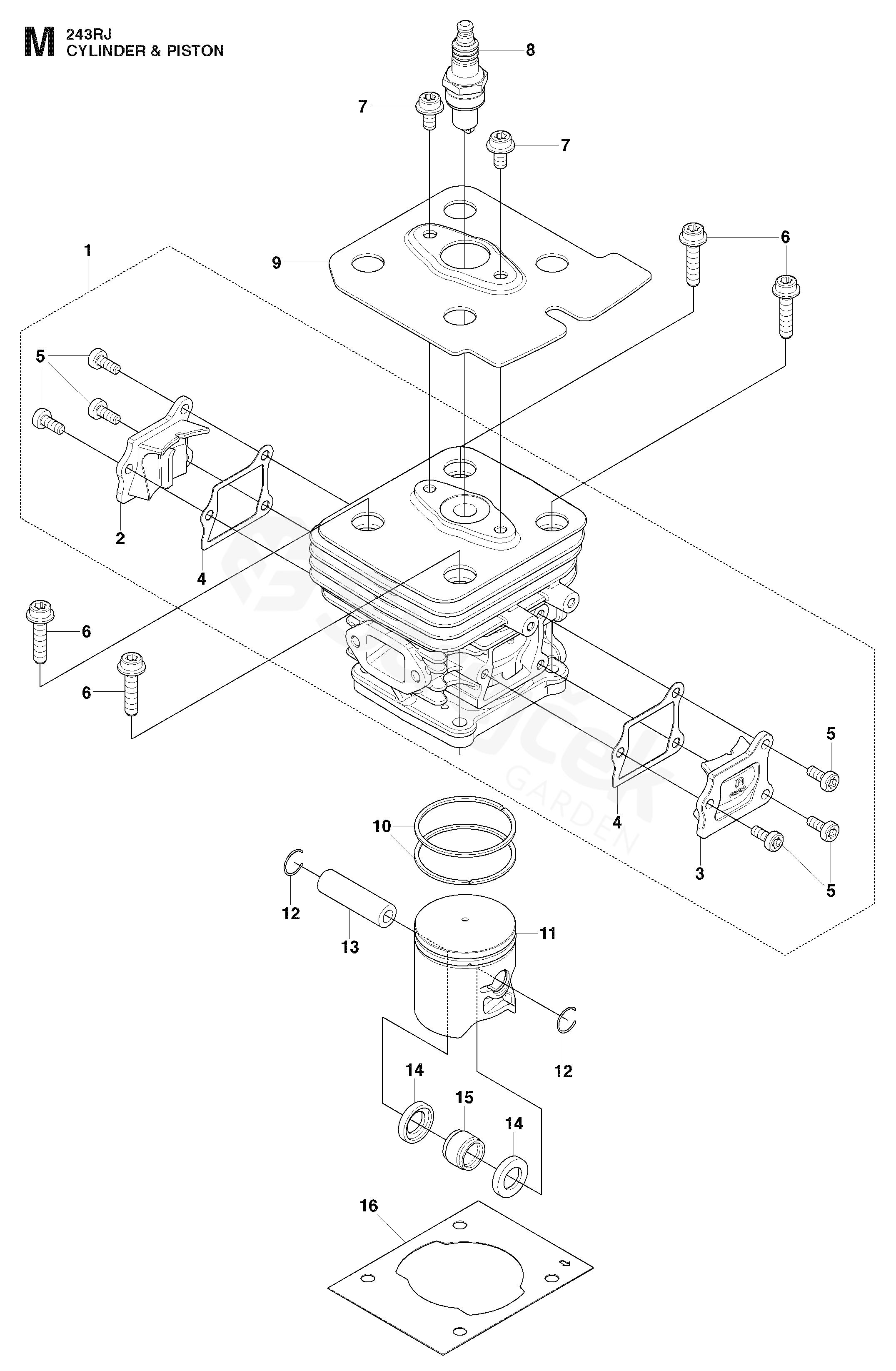

CYLINDER PISTON
243 RJ 243 RJ, 2009-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 243 RJ, 2009-03
1 CYLINDER-COMP 521621901
2 COVER 521622101
3 COVER 521622201
4 GASKET 521622301
5 BOLT 521515601
6 BOLT 506616001
7 BOLT 521515901
8 SPARK PLUG 506615101
9 PLATE 525418101
10 RING 516802001
11 PISTON 525417901
12 KROUŽEK 516283001
13 PEN 521522701
14 PODLOŽKA 516965701
15 ROLLER BEARING 521794701
16 GASKET 521622001
