Spare parts > Jonsered > BRUSHCUTTERS/CLEARING SAWS > RS44 RS44, 2002-08 > BEVEL GEAR & SHAFT
Back to

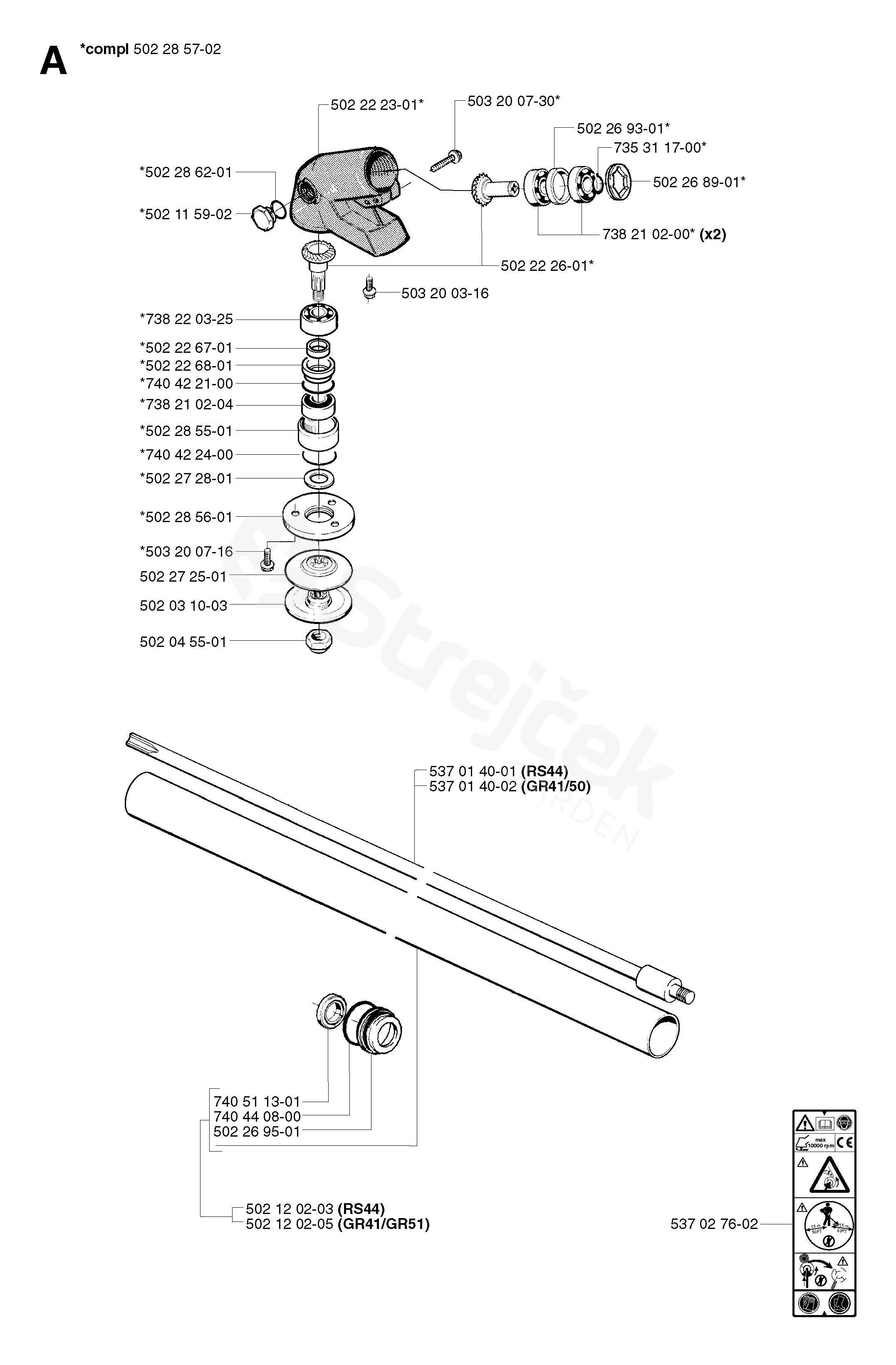

BEVEL GEAR & SHAFT
RS44 RS44, 2002-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RS44, 2002-08
502031003 SUPPORT FLANGE ASSY 502031003
502045501 NUT 502045501
502115902 PLUG 502115902
502120203 TUBE ASSY 240F
RS44 		502120203
502120205 TUBE ASSY 240R
GR41/GR51 		502120205
502222301 GEAR HOUSING 502222301
502222601 GEAR WHEEL 502222601
502226701 SPACER RING 502226701
502226801 SEALING COLLAR 502226801
502268901 CIRCLIP 502268901
502269301 SPACER RING 502269301
502269501 SEALING RING HOLDER 502269501
502272501 DRIVER 502272501
502272801 WASHER 502272801
502285501 BEARING HOUSING 502285501
502285601 GEAR CASE COVER 502285601
502285702 GEAR 502285702
502286201 WASHER 502286201
503200316 SCREW IHSCFM 503200316
503200716 SCREW IHSCFM 503200716
503200730 SCREW IHSCFM 503200730
537014001 DRIVE SHAFT ASSY 240F
RS44 		537014001
537014002 DRIVE SHAFT ASSY 240R
GR41/50 		537014002
537027602 LABEL 537027602
735311700 CIRCLIP 735311700
738210200 BALL BEARING 738210200
738210204 BALL BEARING 738210204
738220325 BALL BEARING 738220325
740422100 O-RING 740422100
740422400 O-RING 740422400
740440800 O-RING 740440800
740511301 SEALING RING 740511301
