Spare parts
>
Jonsered
>
BRUSHCUTTERS/CLEARING SAWS
>
BP40 BP40, 1995-02
>

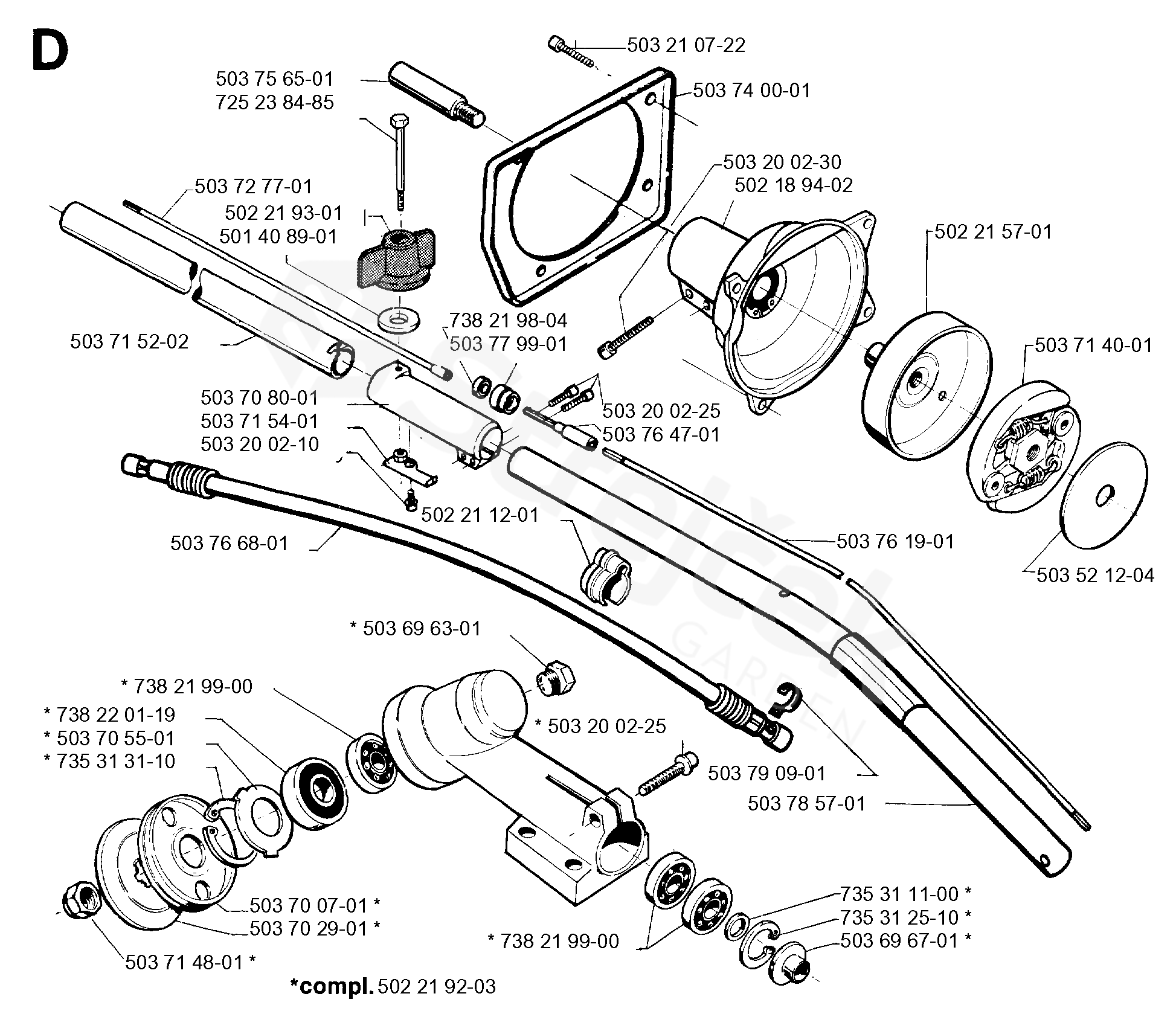

BEVEL GEAR & SHAFT
Back to
BP40
BP40, 1995-02
BEVEL GEAR & SHAFT
BP40
BP40, 1995-02
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BP40, 1995-02
501408901
WASHER
501408901
502189402
CLUTCH COVER ASSY
502189402
502211201
SKOBA
502211201
502215701
BUBEN SPOJKY KOMPL.
502215701
502219203
GEAR
502219203
502219301
TURNING KNOB
502219301
503200210
SCREW IHSCFM
503200210
503200225
SCREW IHSCFM
503200225
503200230
SCREW IHSCFM
503200230
503210722
SCREW IHSCT
503210722
503521204
PODLOŽKA
503521204
503696301
PLUG
503696301
503696701
GASKET RING UPPER
503696701
503700701
DRIVER
503700701
503702901
SUPPORT FLANGE
503702901
503705501
COVER WASHER
503705501
503708001
COMPRESSION SLEEVE
503708001
503714001
CLUTCH ASSY
503714001
503714801
NUT BLADE
503714801
503715202
TUBE
503715202
503715401
LOCKING PLATE
503715401
503727701
DRIVE SHAFT ASSY
503727701
503740001
COVER
503740001
503756501
ADAPTER
503756501
503761901
SHAFT FLEXIBLE
503761901
503764701
ADAPTER
503764701
503766801
HOUSING
503766801
503779901
BEARING CAGE
503779901
503785701
TUBE
503785701
503790901
CIRCLIP
503790901
725238485
SCREW EHHM
725238485
735311100
CIRCLIP
735311100
735312510
CIRCLIP
735312510
735313110
CIRCLIP
735313110
738219804
BALL BEARING
738219804
738219900
BALL BEARING
738219900
738220119
BALL BEARING
738220119
