Jonsered
>
CULTIVATORS/TILLERS
>
CT2154 CT2154, 965896701, 2012-01
>
PRODUCT COMPLETE
Back to
CT2154
CT2154, 965896701, 2012-01
PRODUCT COMPLETE
CT2154
CT2154, 965896701, 2012-01

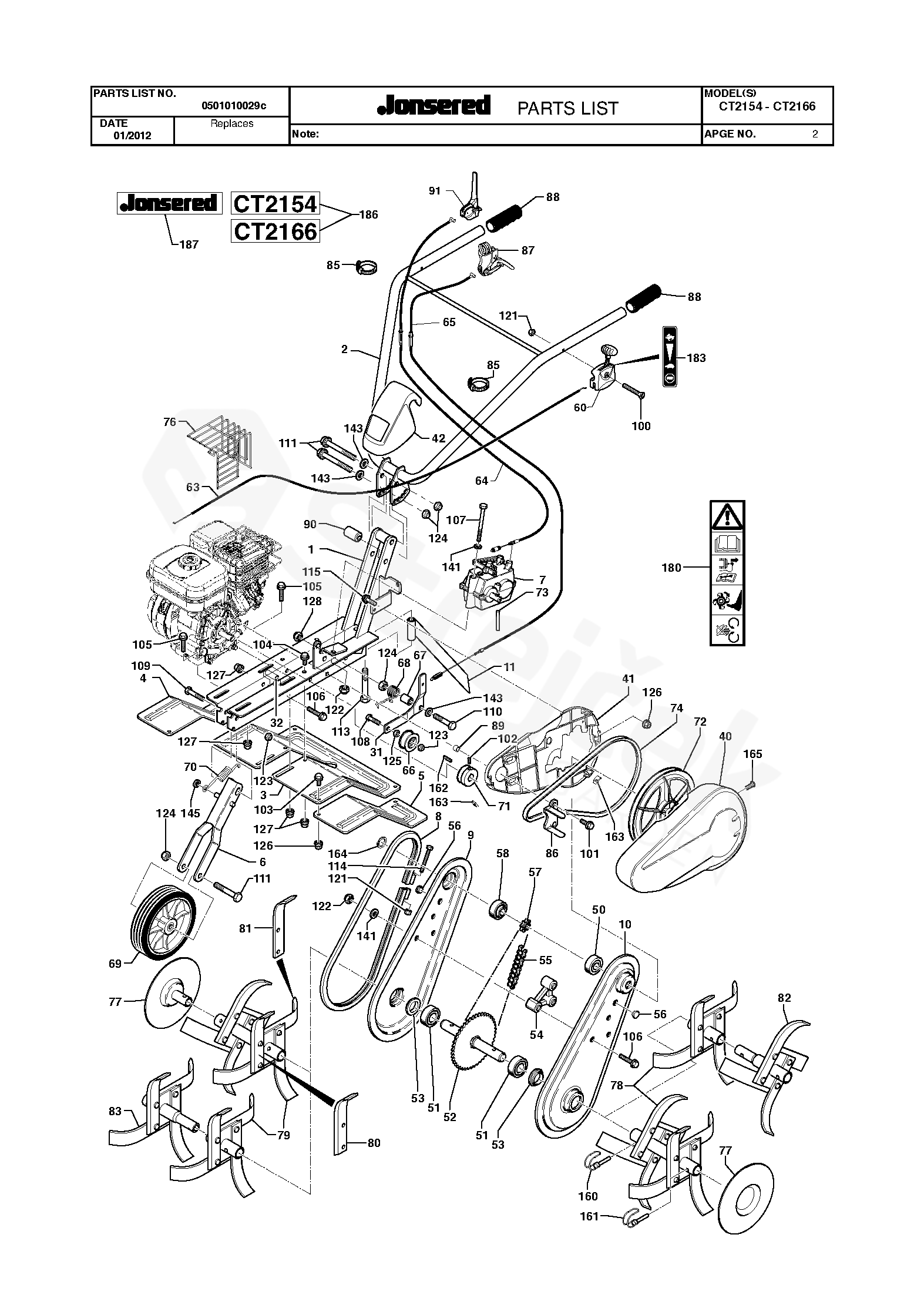

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CT2154, 965896701, 2012-01
1
CHASSIS
501005701
2
HANDLEBAR
501005601
3
PROTECTIVE COVER
544192001
4
EXTENSION
544192101
5
EXTENSION
544193401
6
SUPPORT
519653460
7
GEAR
519653092
8
FLANGE
544192201
9
HOUSING
519653041
10
HOUSING
519653042
11
TAIL-SKID
531008206
31
LEVER
519653407
32
SPACER
519653424
40
BELT COVER
544192301
41
PLATE
531008208
42
COVER
501005501
50
BALL BEARING
519002631
51
BEARING
519653053
52
ŘETĚZKA
519653007
53
RING
531008576
54
ROZPĚRKA
519653006
55
CHAIN
519653009
56
PLUG
519653391
57
PINION
519653057
58
RING
531008546
60
THROTTLE LEVER
577453001
63
THROTTLE CABLE
580317901
64
HANDLEBAR
580317501
65
CABLE
577547401
66
PULLEY
519653457
67
ROD
519653451
68
SPRING
519653090
69
KOLO
519653000
70
PRUŽINA
519650260
71
PULLEY
519653068
72
PULLEY
519653060
73
SHAFT
519653067
74
BELT
519653058
76
GRILL
531008582
77
COVER
519653362
78
BLADE
simple
531008211
79
BLADE
simple
531008213
80
BLADE
519653447
81
BLADE
519653448
82
TINE
531008214
83
TINE
531008215
85
COLLIER 13249
519653232
86
BELT GUIDE
531008577
87
LEVER
577547801
88
HANDLE
519000113
89
SPACER
531008216
90
SPACER
576145301
91
LEVER
580317201
100
SCREW
519653461
101
SCREW
519653412
102
SCREW
519653020
103
SCREW
519653435
104
BOLT
531008202
105
SCREW
519653413
106
SCREW
519653463
107
SCREW
519653045
108
SCREW
519653455
109
SCREW
519653046
110
SCREW
519653454
111
SCREW
519653131
113
BOLT
531008220
114
SCREW
519653010
115
SCREW
531008253
121
HEXAGON LOCKING NUT
732261601
122
MATICE
519006200
123
NUT
519653458
124
SCREW EHHM
725255051
125
NUT
519653456
126
NUT
519653432
127
NUT
519653430
128
NUT
531008221
141
WASHER
519653450
143
WASHER
519653453
145
WASHER
519653462
160
CLIP
531009410
161
PIN RETAINING SCREW
531009411
162
KEY
519653021
163
CLIP
519653425
164
RETAINING RING
519653466
165
SCREW
519653426
180
DECAL
531008540
183
DECAL
519646680
186
LABEL CT2166
CT2166
577591101
187
LABEL
544192501
TRANSMISSION
544199201
