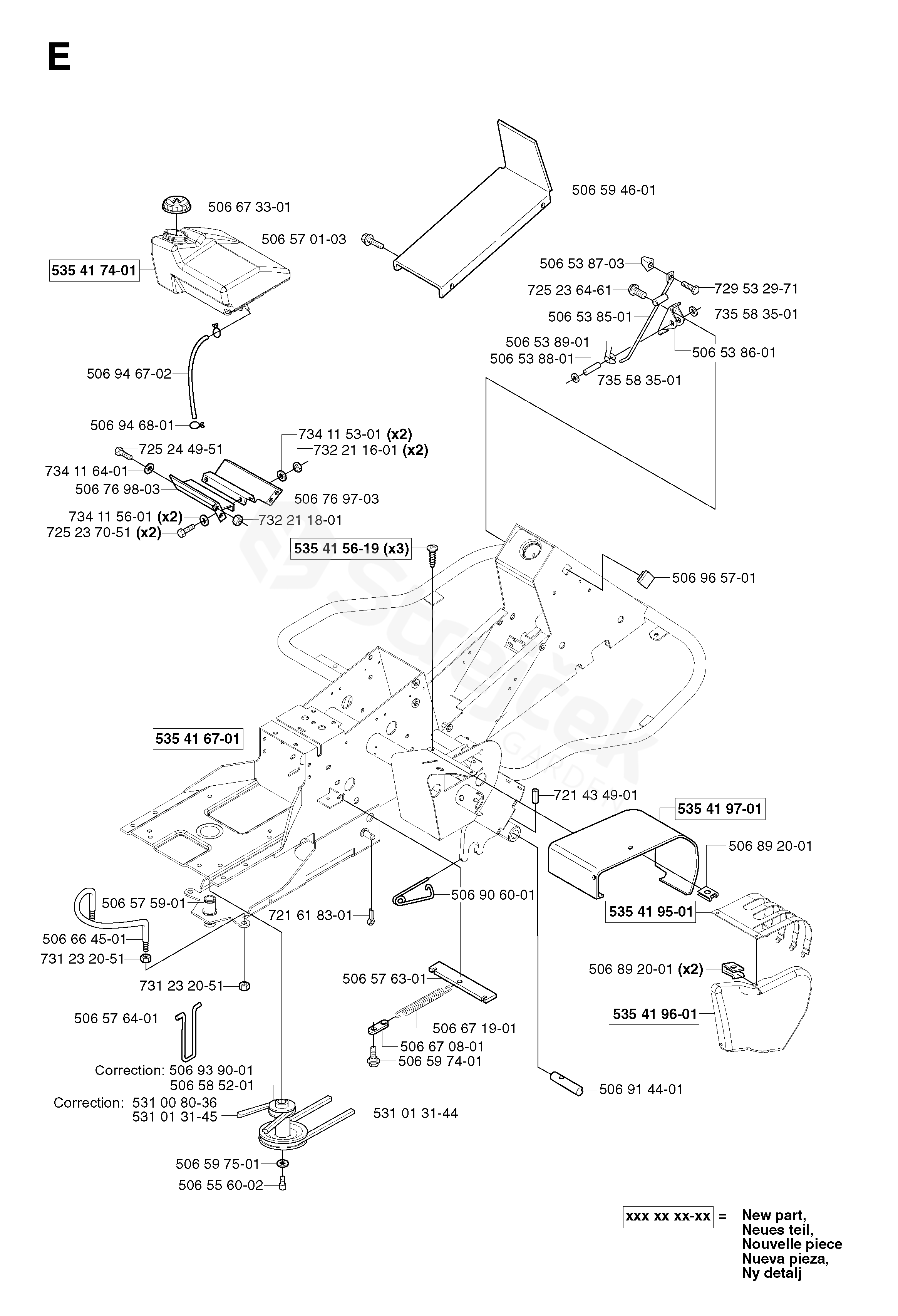

FR2113 A FR2113 A, 2002-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FR2113 A, 2002-03

506538501	LOCKING ARM	506538501
506538601	BRACKET	506538601
506538703	CONTROL BUTTON	506538703
506538801	SHAFT	506538801
506538901	SPRING	506538901
506556002	SCREW UNC	506556002
506570103	SCREW EHHFM	506570103
506575901	PIVOT	506575901
506576301	SPRING RETAINER	506576301
506576401	CABLE HOLDER	506576401
506594601	LOCK GOLVTUNNEL	506594601
506597401	SCREW EHHFM	506597401
506597501	PODLOŽKA	506597501
506664501	BELT GUIDE	506664501
506670801	ČLÁNEK	506670801
506671901	PRUŽINA	506671901
506673301	TANK CAP ASSY	506673301
506769703	BRACKET	506769703
506769803	BRACKET	506769803
506892001	SPEED NUT	506892001
506906001	SAFETY NEEDLE	506906001
506914401	WHEEL AXLE	506914401
506939001	PULLEY CORRECTION:	506939001
506946702	FUEL HOSE	506946702
506946801	TRÅDKLÄMMA	506946801
506965701	PLUG	506965701
531008036	BELT CORRECTION:	531008036
531013144	BELT	531013144
535415619	SCREW	535415619
535416701	FRAME	535416701
535417401	FUEL TANK	535417401
535419501	CONTROL PLATE	535419501
535419601	CONTROL COVER	535419601
535419701	COVER	535419701
721434901	SPRING PIN	721434901
721618301	SPLIT PIN	721618301
725236461	SCREW EHHFT	725236461
725237051	SCREW	725237051
725244951	SCREW	725244951
729532971	SCREW CRPANT	729532971
731232051	HEXAGON NUT	731232051
732211601	LOCK NUT	732211601
732211801	LOCK NUT	732211801
734115301	WASHER	734115301
734115601	SPRING	734115601
734116401	PODLOŽKA	734116401
735583501	PODLOŽKA	735583501
