Spare parts > Jonsered > FRONTRIDERS > FR2312 MA FR2312 MA, 967237101, 2014 > MOWER DECK / CUTTING DECK
Back to

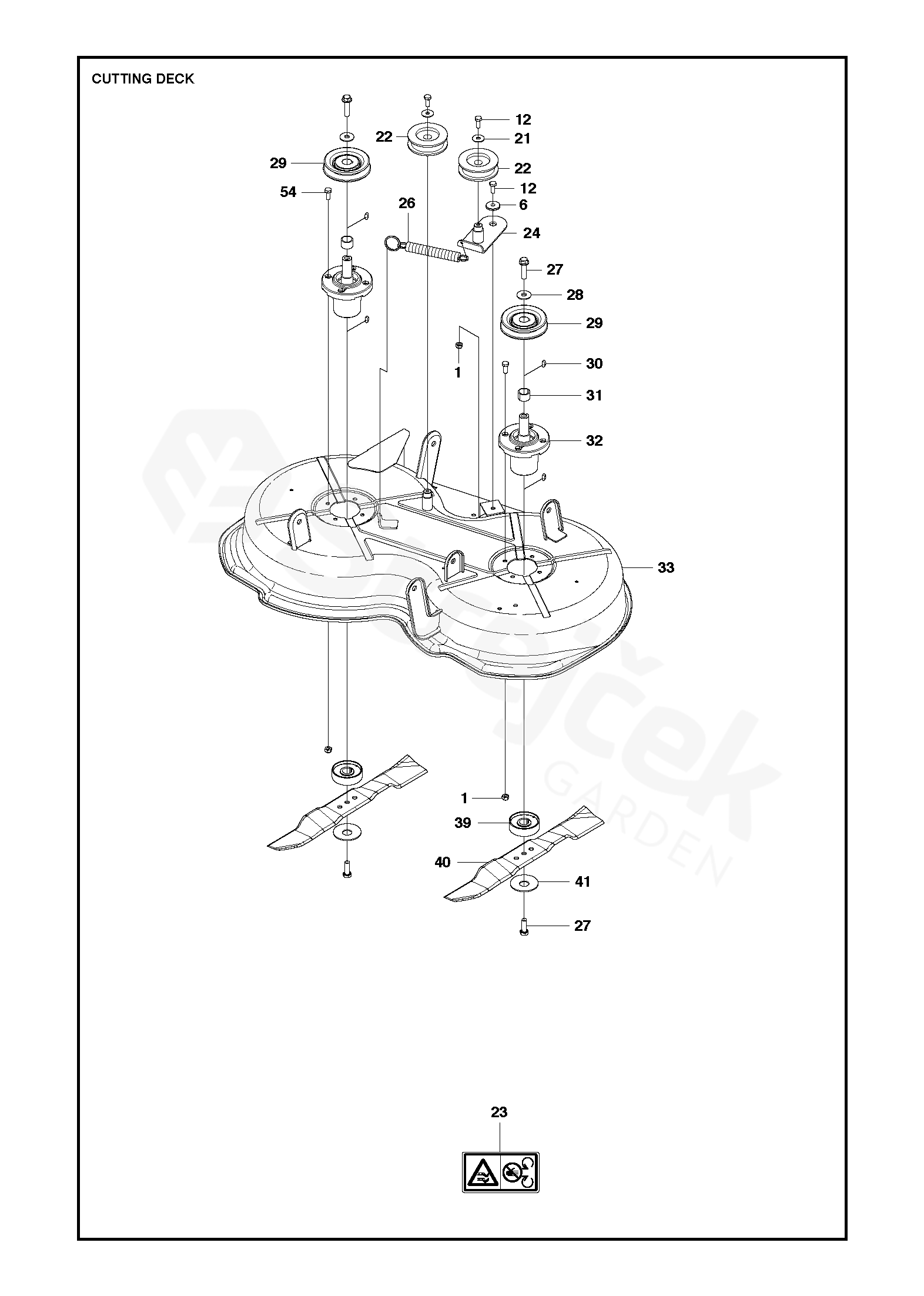

MOWER DECK / CUTTING DECK
FR2312 MA FR2312 MA, 967237101, 2014
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2312 MA, 967237101, 2014
1 LOCK NUT 732211801
6 PODLOŽKA 506918702
12 SCREW EHHM 725245371
21 PODLOŽKA 734116441
22 BELT TENSIONER WHEEL 506793202
23 DECAL 574510001
24 BELT TENSIONER 573969501
26 SPRING 584298801
27 SCREW EHHFM 506675402
28 PODLOŽKA 734117441
29 PULLEY 574460701
30 PARALELNÍ KLÍN 506533501
31 TUBE 573966501
32 BEARING HOUSING ASSY 573968601
33 CUTTING DECK 581061102
39 ADAPTER 581249701
40 BLADE 581083501
41 KNIFE PLATE 506792303
54 SCREW EHHM 725245171
. CUTTING DECK
Complete, Not shown 		586147002
