Spare parts > Jonsered > FRONTRIDERS > FR2312 MA FR2312 MA, 967237101, 2014 > CHASSIS REAR
Back to

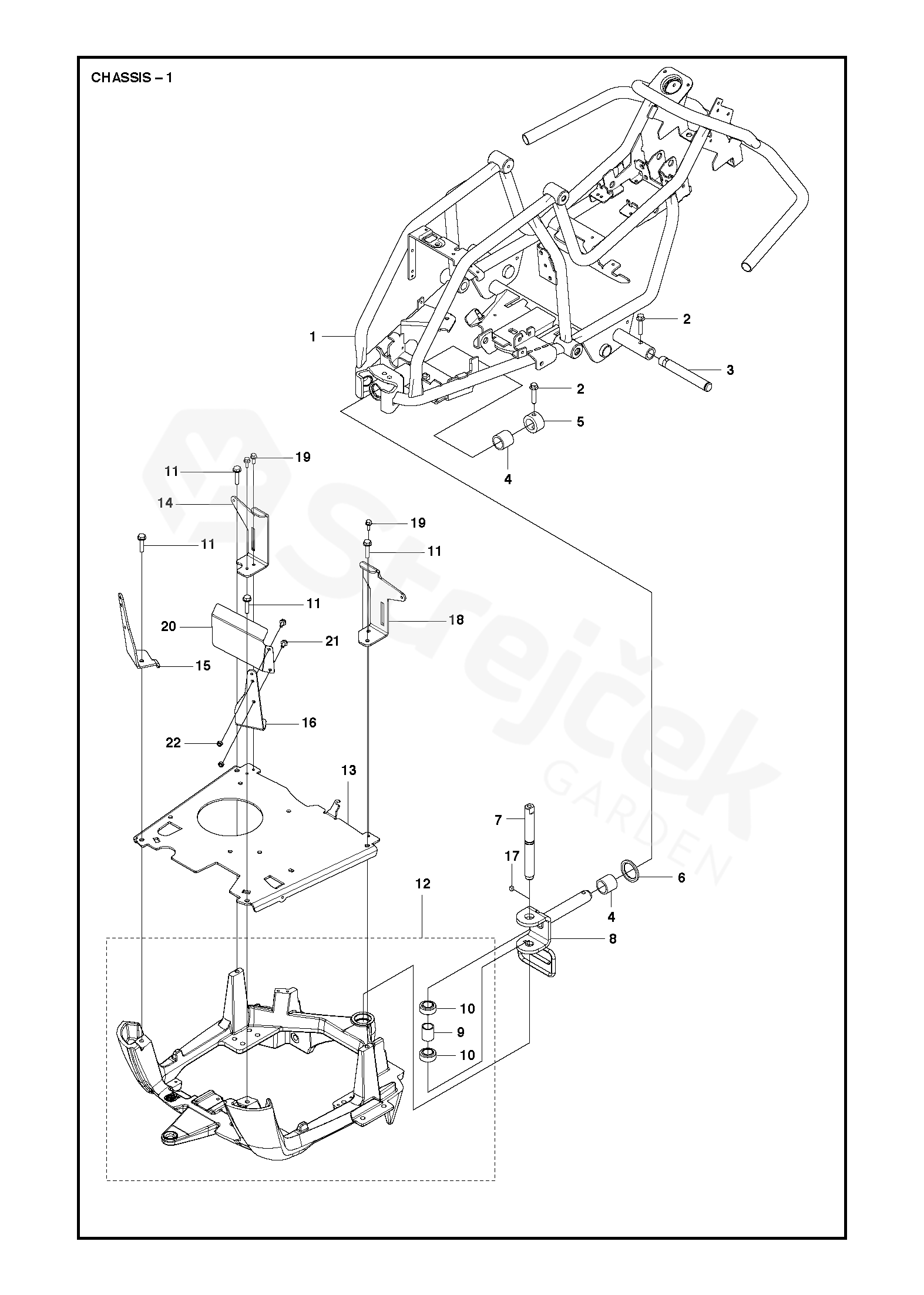

CHASSIS REAR
FR2312 MA FR2312 MA, 967237101, 2014
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2312 MA, 967237101, 2014
1 FRAME 581274102
2 SCREW EHHFT 725245961
3 WHEEL AXLE 535470802
4 GLIDLAGER 506986101
5 STOP SLEEVE 522425201
6 SPACER 522425301
7 SHAFT 579720401
8 SWING AXLE 580267401
9 SLEEVE 522424501
10 BEARING 574368501
11 SCREW EHHFM 506570106
12 FRAME ASSY 590268202
13 BRACKET 581550902
14 BRACKET 581613501
15 BRACKET 581613601
16 BRACKET 581613602
17 KEY 577708901
18 BRACKET 584899201
19 SCREW EHHFT 725236861
20 HEAT SHIELD 585022601
21 SCREW EHHFM 535475212
22 LOCK NUT 732211601
