Spare parts > Jonsered > FRONTRIDERS > FR2312 MA FR2312 MA, 966639801, 966639885, 2011-02 > TRANSMISSION
Back to
TRANSMISSION
FR2312 MA FR2312 MA, 966639801, 966639885, 2011-02

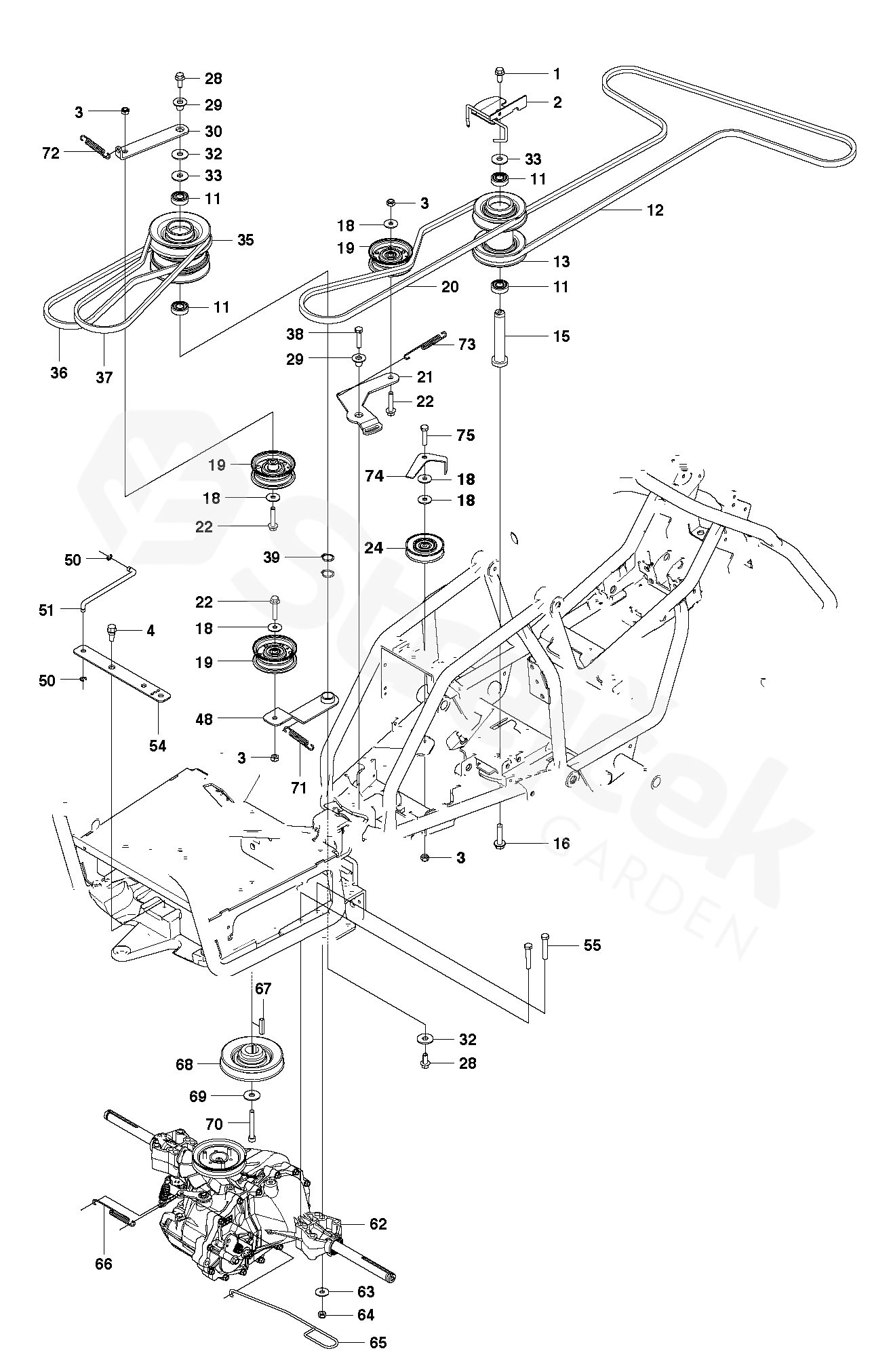

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2312 MA, 966639801, 966639885, 2011-02
1 SCREW EHHFM 506570103
2 BRACKET 577592101
3 LOCK NUT 732211801
11 BALL BEARING 738210404
12 BELT 506775801
13 PULLEY 574259501
15 SHAFT 574259801
16 SCREW EHHFM 506675402
18 PODLOŽKA 734116441
19 PULLEY 539919078
20 BELT 575225501
21 BELT TENSIONER 522602901
22 SCREW EHHM 725245951
24 BELT TENS WHEEL ASSY 506946901
28 SCREW EHHFM 506570105
29 PODLOŽKA 574874101
30 BRACKET 522831601
32 PODLOŽKA 734117441
33 PODLOŽKA 506504805
35 PULLEY 525403901
36 BELT 575225701
37 BELT 575225601
38 SCREW EHHFM 506570105
39 CIRCLIP 735312200
48 BRACKET 574411901
50 E-CLIP 735311020
51 ROD 525408101
54 LINK ARM 522823201
55 SCREW 725246651
62 TRANSMISSION 574449101
63 PODLOŽKA 734116401
64 HEXAGON LOCKING NUT 731231801
65 ARM 525391901
66 PRUŽINA 506834301
67 WEDGE 506555902
68 PULLEY 522827601
69 PODLOŽKA 506597501
70 SCREW UNC 506556002
71 SPRING 574506201
72 SPRING 574506101
73 SPRING 575567201
74 BRACKET 577418501
75 SCREW 725245751
