Spare parts > Jonsered > FRONTRIDERS > FR2113 MA 4X4 FR2113 MA 4X4, 2007-01 > ELECTRICAL
Back to

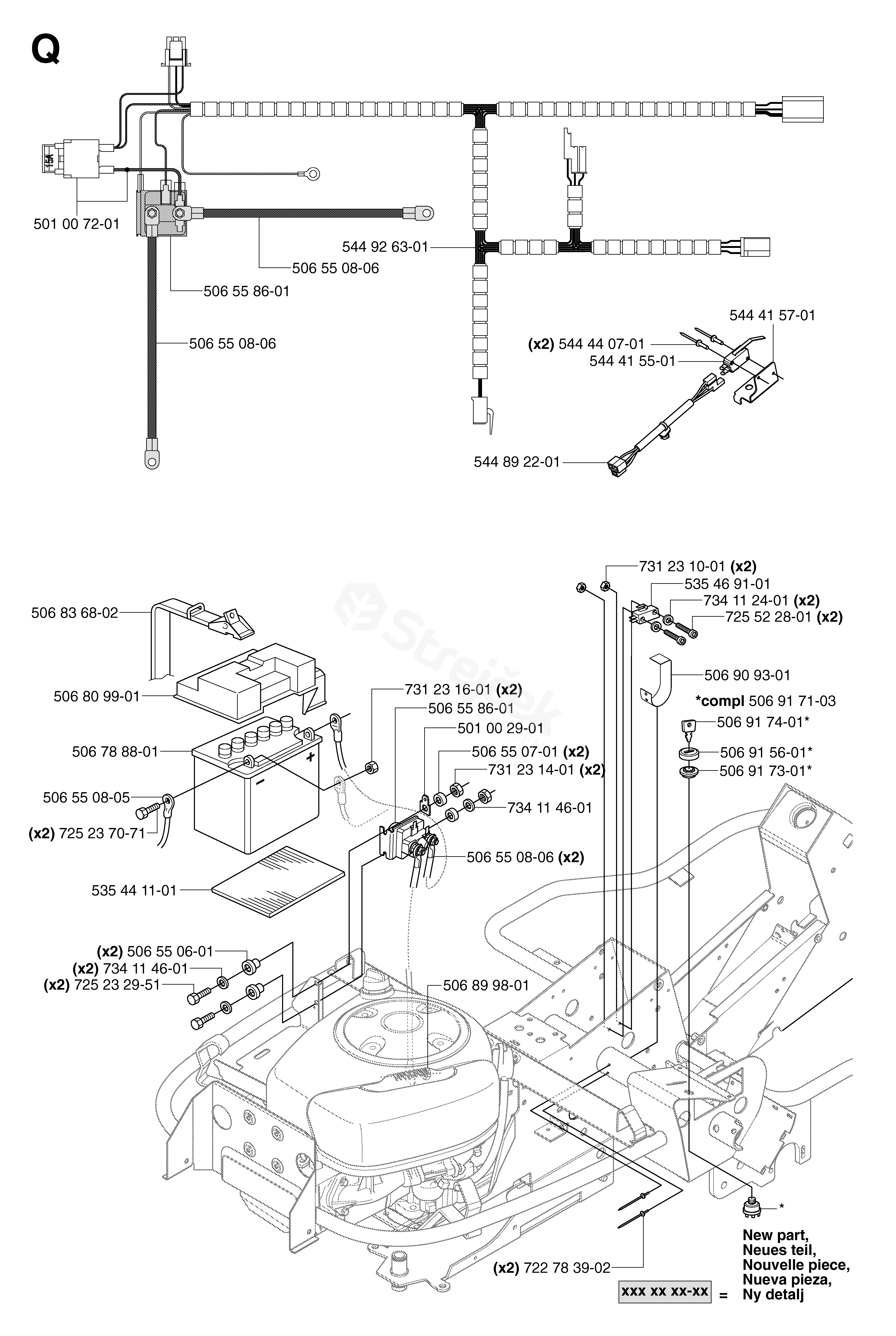

ELECTRICAL
FR2113 MA 4X4 FR2113 MA 4X4, 2007-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2113 MA 4X4, 2007-01
506550601 PLUG 506550601
506550701 INSULATING WASHER 506550701
506550805 STARTKABEL BATT-JORD 506550805
506550806 STARTKABEL BATT-RELÄ 506550806
506558601 RELAY 506558601
506788801 BATTERY 506788801
506809901 BATTERY COVER 506809901
506836802 BELT 506836802
506899801 MATICE 506899801
506909301 PLATE SPRING 506909301
506915601 PROTECTION 506915601
506917103 IGNITION LOCK 506917103
506917301 NUT 506917301
506917401 KEY 506917401
535441101 BATTERY MAT 535441101
535469101 SWITCH 535469101
544415501 SWITCH 544415501
544415701 BRACKET 544415701
544440701 NÝT 544440701
544892201 WIRING 544892201
544926301 WIRING 544926301
722783902 BLIND RIVET 722783902
725232951 SCREW 725232951
725237071 SCREW EHHM 725237071
725522801 SCREW IHSCM 725522801
731231001 HEXAGON NUT 731231001
731231401 HEXAGON NUT 731231401
731231601 HEXAGON NUT 731231601
734112401 WASHER 734112401
734114601 PODLOŽKA 734114601
