Spare parts
Everything for your machines
Spare parts > Jonsered > FRONTRIDERS > FR2216 FA FR2216 FA, 966773601, 2012 > ENGINE
Back to

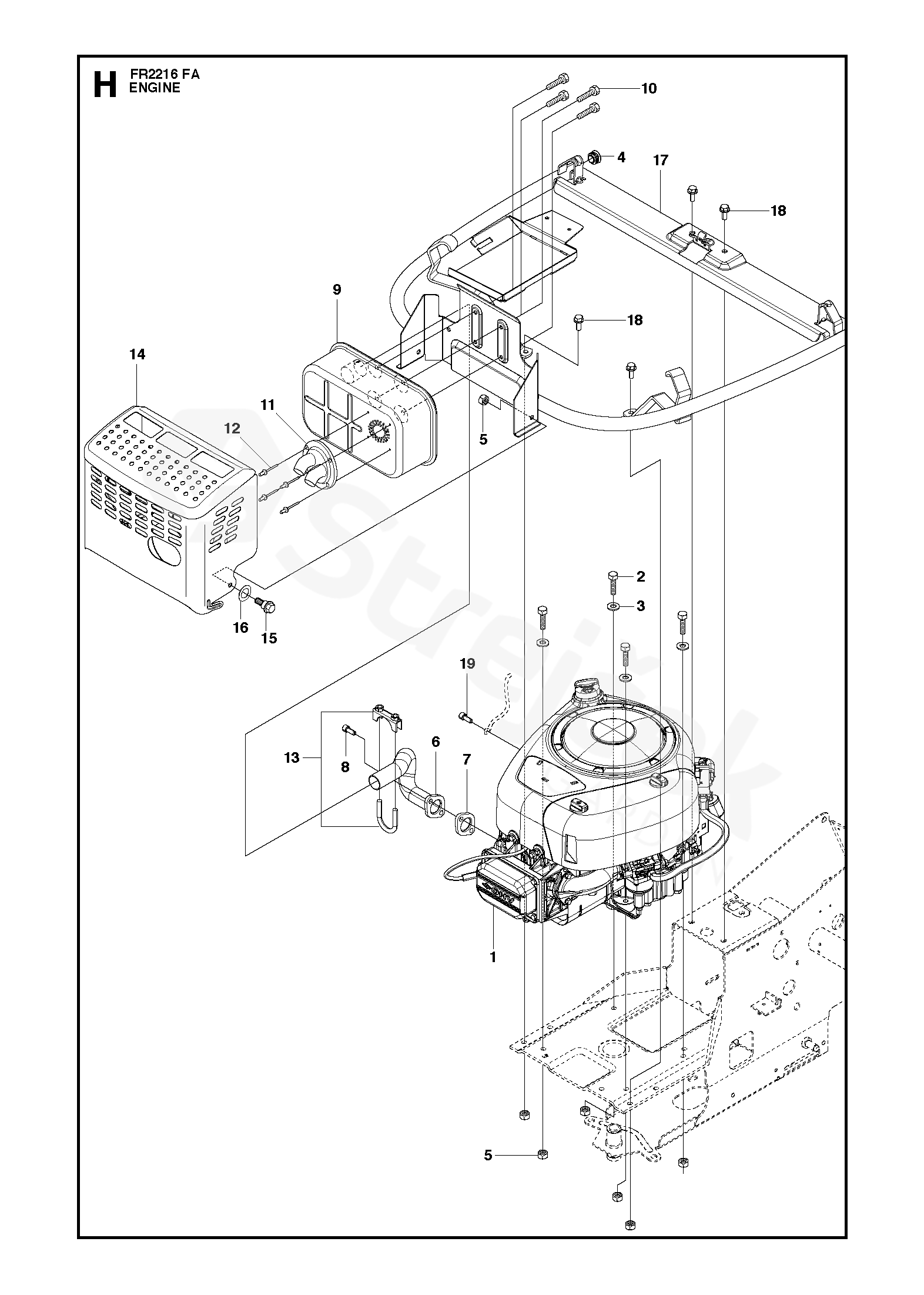

ENGINE
FR2216 FA FR2216 FA, 966773601, 2012
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2216 FA, 966773601, 2012
1 ENGINE 577343401
2 SCREW 725245751
3 PODLOŽKA 734116401
4 PLUG 506810101
5 LOCK NUT 732211801
6 EXHAUST PIPE 580661302
7 GASKET 506914501
8 SCREW UNC 506556301
9 MUFFLER ASSY 535400801
10 SCREW EHHFT 725236861
11 DEFLECTOR 506827901
12 RIVET 722792309
13 CLAMP ASSY 506668401
14 HEAT PROTECTOR 535416201
15 SCREW EHHFM 506597401
16 PRUŽNÁ PODLOŽKA 506839401
17 ENGINE FRAME 578784701
18 SCREW EHHFM 506570104
19 SCREW UNC 506556302
