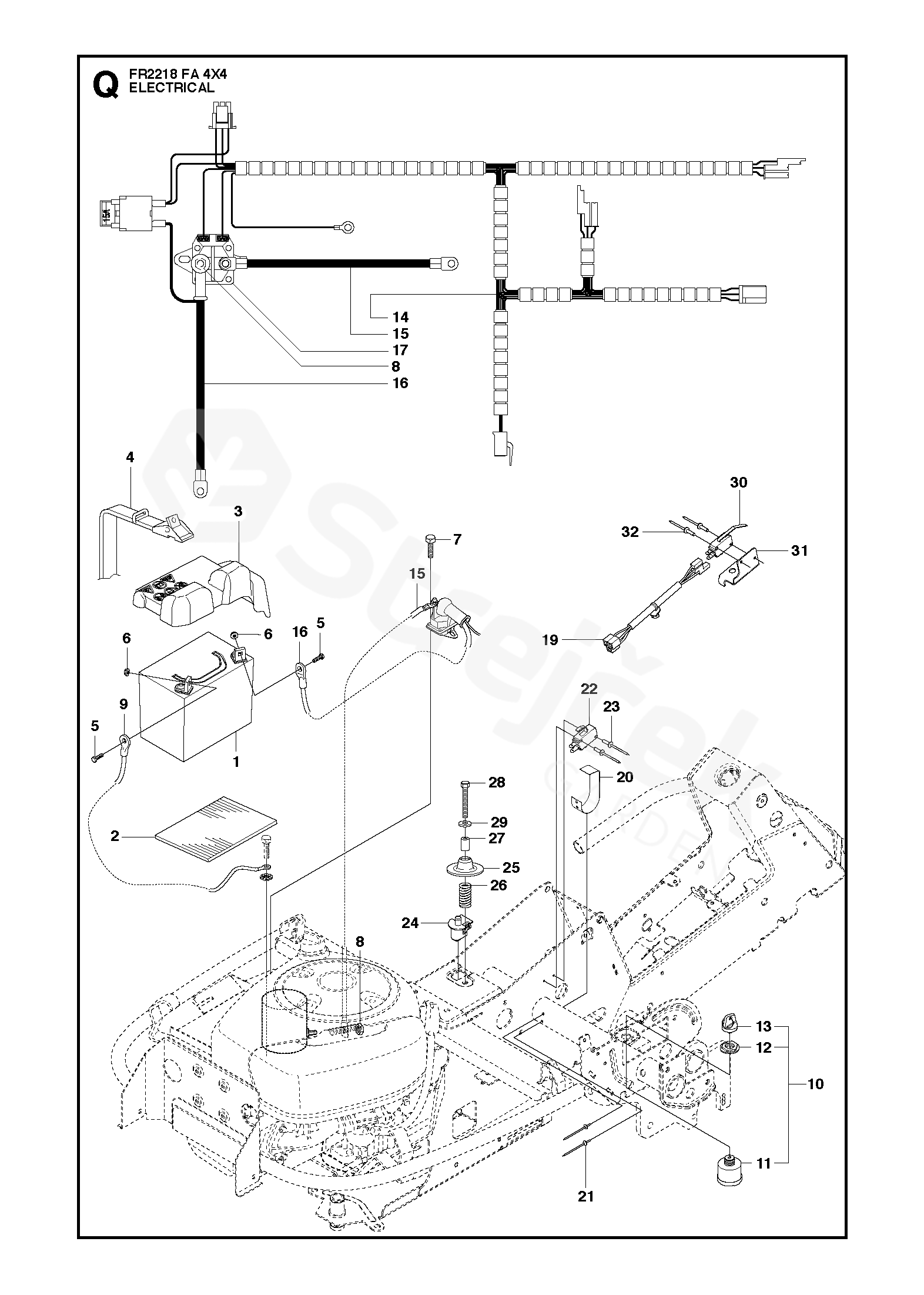

Spare parts > Jonsered > FRONTRIDERS > FR2218 FA 4x4 FR2218 FA 4x4, 966773701, 2012 > ELECTRICAL
Back to
ELECTRICAL
FR2218 FA 4x4 FR2218 FA 4x4, 966773701, 2012
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2218 FA 4x4, 966773701, 2012
1 BATTERY 510138501
2 BATTERY MAT 535441101
3 COVER 510026901
4 BELT 506836802
5 SCREW EHHM 522622101
6 NUT 522624301
7 SCREW EHHFT 725236461
8 MATICE 506899801
9 CABLE 544967603
10 IGNITION SWITCH 544442101
11 IGNITION SWITCH 544442201
12 MATICE 544442301
13 IGNITION KEY 544442401
14 WIRING 578338301
15 CABLE 544928601
16 CABLE 544926104
17 RELAY 544439801
19 WIRING 576185401
20 PLATE SPRING 506909301
21 BLIND RIVET 722783902
22 SWITCH 574316001
23 NÝT 544440701
24 SWITCH 506909601
25 SPRING WASHER 506909701
26 SPRING 544441201
27 SPACING TUBE 506909902
28 SCREW EHHM 725246051
29 PODLOŽKA 734116401
30 SWITCH 574316101
31 BRACKET 544415701
32 NÝT 544440701
