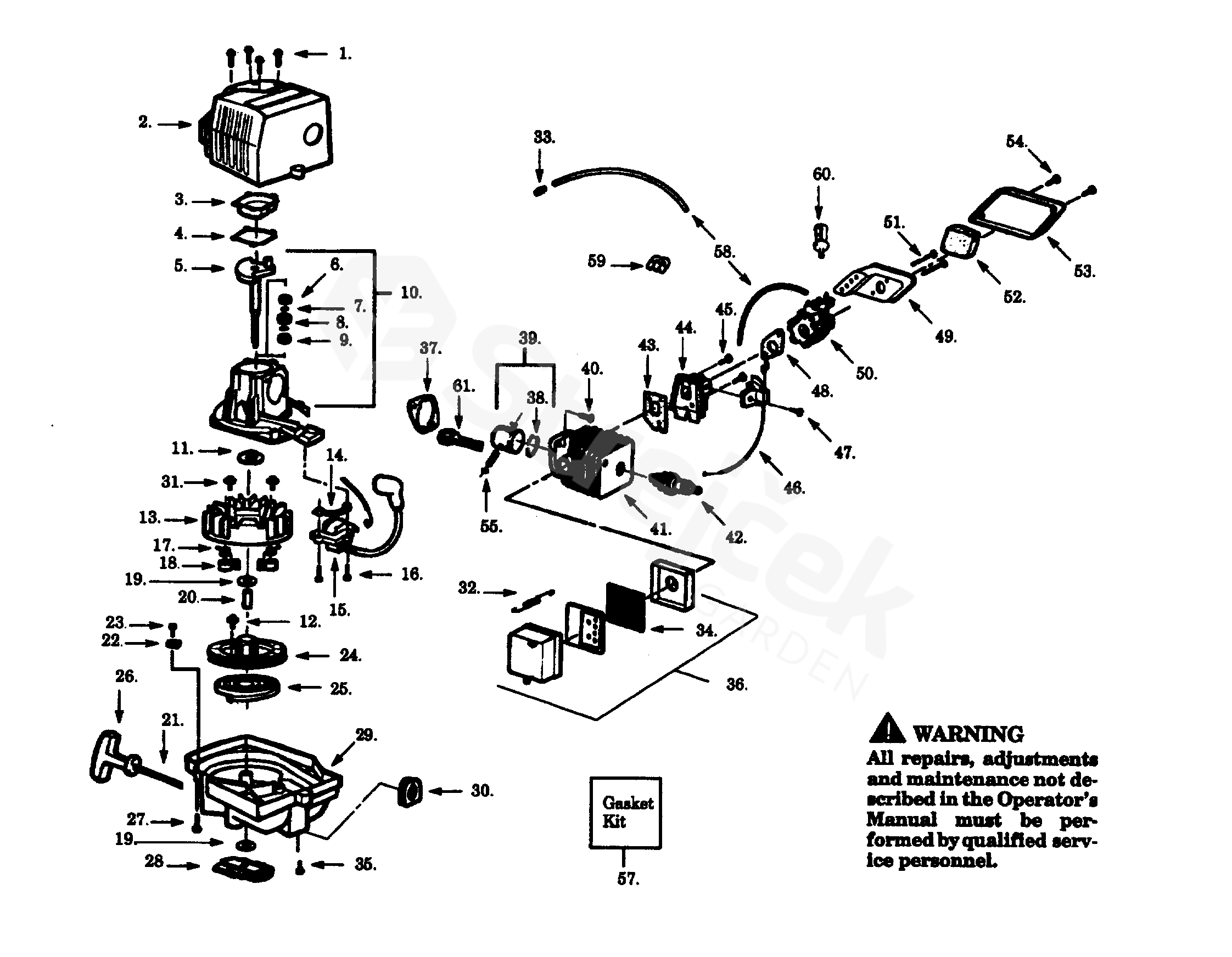

HT21 HT21, 1996-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HT21, 1996-03

1	SCREW	530015810
2	SHROUD	530038013
3	COVER	530029929
4	GASKET	530019181
5	CRANKSHAFT	530014307
6	BEARING	530032125
7	CLIP	530015945
8	SEALING	530019179
9	BEARING	530032124
10	CRANKCASE	530014861
11	CLIP	530015941
12	SCREW	530016080
13	FLYWHEEL	530039149
14	HOLDER	530036145
15	IGNITION MODULE	530039163
16	SCREW	530015954
17	SPRING	530037730
18	PAWL	530029939
19	PODLOŽKA Washer	530015828
20	SPACER	530015930
21	STARTER ROPE	530069232
22	WASHER	530015963
23	SCREW	530015496
24	STARTER PULLEY	530069353
25	RECOIL SPRING	530029395
26	STARTER HANDLE	530027569
27	SCREW	530015886
28	CLUTCH	530014396
29	COVER	530014610
30	PROTECTION	530019182
31	SCREW	530015882
32	SPRING	530029930
33	NIPPLE	530023877
34	SPARK ARRESTOR	530036180
35	SCREW	530015934
36	MUFFLER	530069659
37	GASKET	530019223
38	PISTON RING	530029924
40	SCREW	530015953
42	SPARK PLUG	530030075
43	GASKET	530019233
44	ADAPTER	530038017
45	SCREW	530016014
46	THROTTLE WIRE	530014384
47	SCREW	530015775
48	GASKET	530019194
49	AIR BOX	530036192
51	SCREW	530015849
52	AIR FILTER	530029934
53	COVER	530036193
54	SCREW	530015635
55	CIRCLIP	530015162
57	GASKET KIT	530069616
58	HOSE	530069599
59	CLIP	530016103
60	FILTER	530014362
61	CONNECTING ROD	530069615
530035306	CARBURETTOR	530035306
530069350	PISTON	530069350
530069613	PISTON	530069613
530069614	CYLINDER	530069614
530069619	CYLINDER	530069619
530069682	CARBURETTOR	530069682
