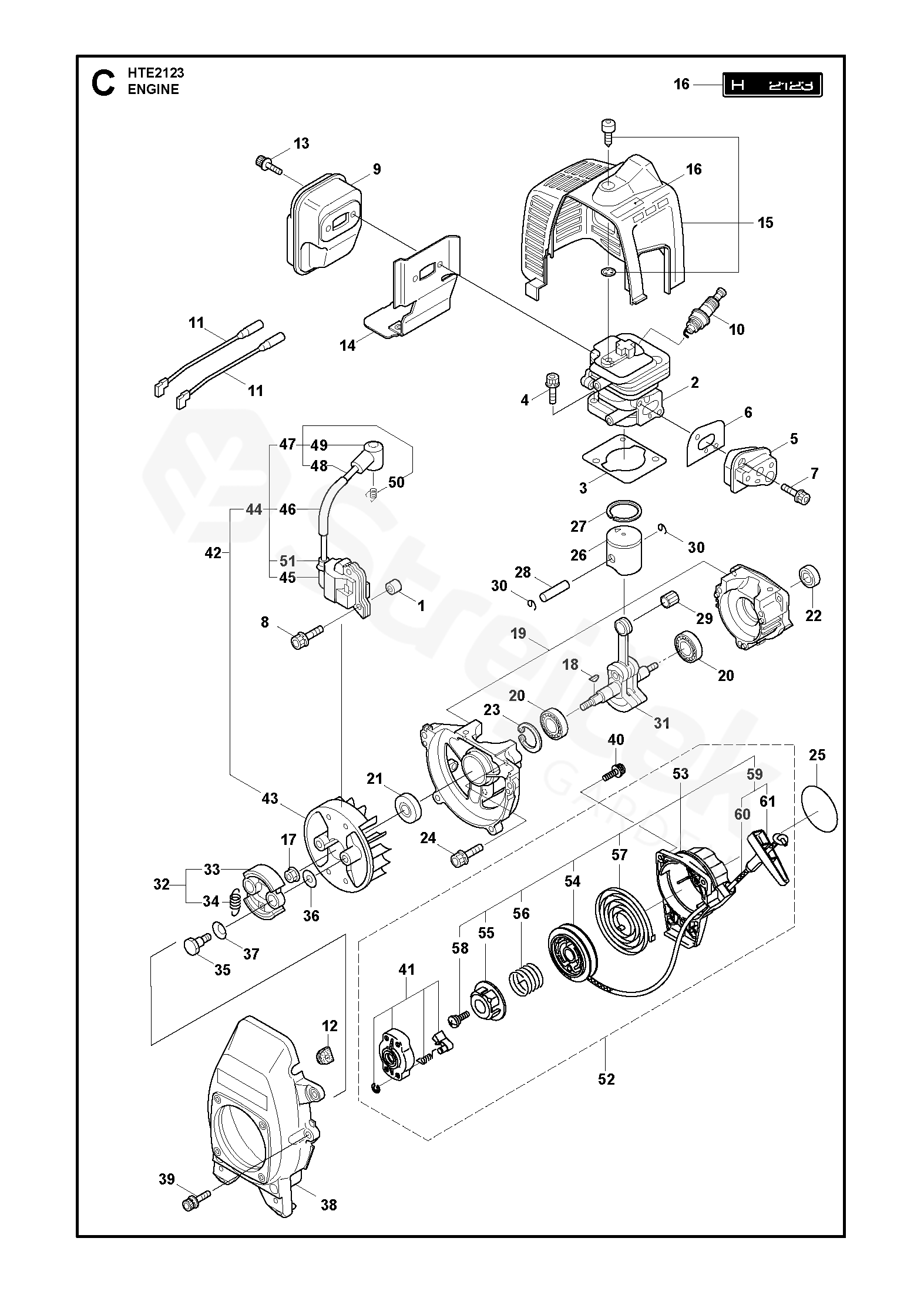

HTE2123 HTE2123, 2010-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HTE2123, 2010-03

1	SPACER	523122301
2	CYLINDER	575366801
3	GASKET	575366901
4	SCREW	544295501
5	INSULATOR	575367001
6	GASKET	575367101
7	CAP SCREW	575367201
8	SCREW	544292001
9	MUFFLER	575367301
10	SPARK PLUG	544292201
11	WIRE.LEAD	575370501
12	GROMMET	575370601
13	CAP SCREW	575367401
14	GASKET	575367501
15	TOP COVER ASSY	575367801
16	DECAL	501382806
17	NUT.ROTOR	575370401
18	WOODRUFF KEY	523103501
19	CRANKCASE	575368001
20	BEARING	575368101
21	OIL SEAL	575368201
22	OIL SEAL	575368301
23	SNAP RING	575365501
24	CAP SCREW	523099801
25	DECAL	575397601
26	PISTON	575368501
27	PISTON RING	575368601
28	PISTON PIN	575368701
29	BEARING. NEEDLE	575368801
30	CLIP	575368901
31	CRANKSHAFT	575369001
32	CLUTCH ASSY	575369101
33	CLUTCH SHOE	575369201
34	SPRING.CLUTCH	575369301
35	BOLT	575369401
36	WASHER	575369501
37	WAVE WASHER	575369601
38	FAN COVER	575369701
39	SCREW	544291901
40	CAP SCREW	575367601
41	STARTER PAWL ASSY	575371701
42	MAGNETO ASSY	575369801
43	ROTOR/FAN	575369901
44	IGNITION COIL ASSY	575370001
45	COIL	575370101
46	INSULATOR	544296601
47	SPARK PLUG	544295701
48	SPARK PLUG WIRE	575370201
49	PLUG BOOT	575370301
50	CONNECTOR	523103201
51	HUB CAP	523103401
52	RECOIL STARTER ASSY	575370701
53	STARTER ASSY	575370801
54	REEL	575370901
55	CAM	575371001
56	SPRING	575371101
57	SPIRAL SPRING	575371201
58	SCREW	575371301
59	STARTER ROPE ASSY	575371401
60	STARTER ROPE	575371501
61	STARTER GRIP	575371601
