Spare parts > Jonsered > Hedge Trimmers > HTE2123 HTE2123, 2010-03 > HANDLE & CONTROLS
Back to

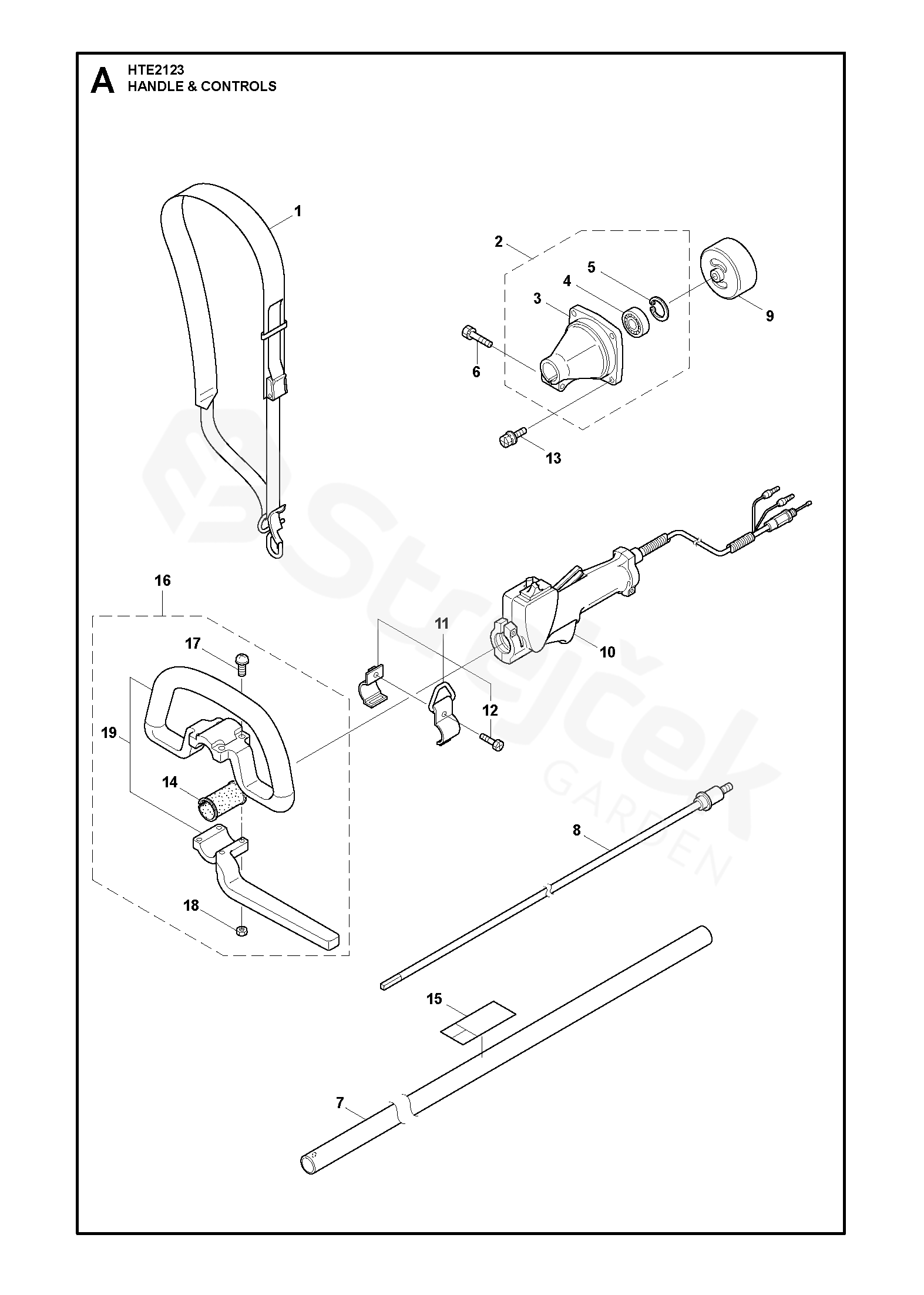

HANDLE & CONTROLS
HTE2123 HTE2123, 2010-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HTE2123, 2010-03
1 HARNESS 537216201
2 CLUTCH COVER ASSY 576262401
3 CLUTCH COVER 576262501
4 BEARING 575363101
5 SNAP RING 575363201
6 BOLT 575680201
7 TUBE DRIVESHAFT 576262601
8 DRIVESHAFT ASSY 576262701
9 CLUTCH DRUM 575363401
10 THROTTLE TRIGGER 575363701
11 HANGING BRACKET ASSY 575363801
12 BOLT 575363901
13 BOLT 523098101
14 PACKING 575364201
15 LABEL 537083902
16 LOOP HANDLE ASSY 575364001
17 SCREW 575364301
18 NUT 575364401
19 LOOP HANDLE 575364101
