Spare parts > Jonsered > CHAIN SAWS > CS2125 T CS2125 T, 2009-08 > CLUTCH & OIL PUMP
Back to

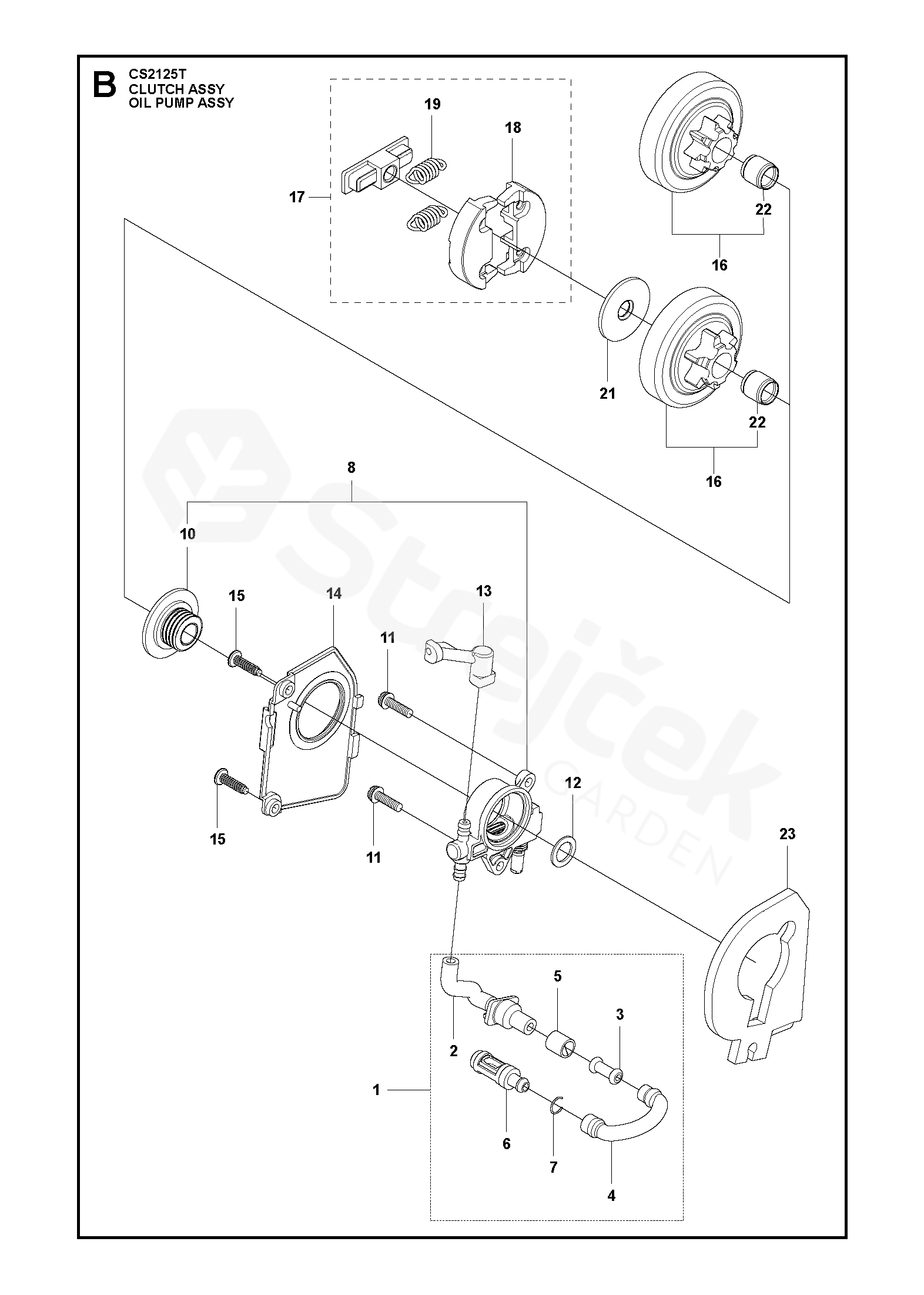

CLUTCH & OIL PUMP
CS2125 T CS2125 T, 2009-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2125 T, 2009-08
1 PIPE COMP 505044601
2 PIPE 505044701
3 JOINT 505044801
4 PIPE 505044901
5 CLIP 505045001
6 FILTER 505045101
7 KROUŽEK 505045201
8 OIL PUMP ASSY 505052901
10 WORM 505053101
11 SCREW 505041601
12 WASHER 505053301
13 PIPE 505053501
14 COVER 513733001
15 SCREW 505047001
16 CLUTCH DRUM ASSY 3/8 6-Tooth
3/8 6-Tooth 		525615301
17 CLUTCH 505049801
18 SHOE.CLUTCH 505049901
19 SPRING 505050001
21 PLATE 505050201
22 BEARING 505050301
23 SEAL 505053401
