Spare parts > Jonsered > CHAIN SAWS > 2077 2077, 1998-03 > CHAIN BRAKE & CLUTCH COVER
Back to

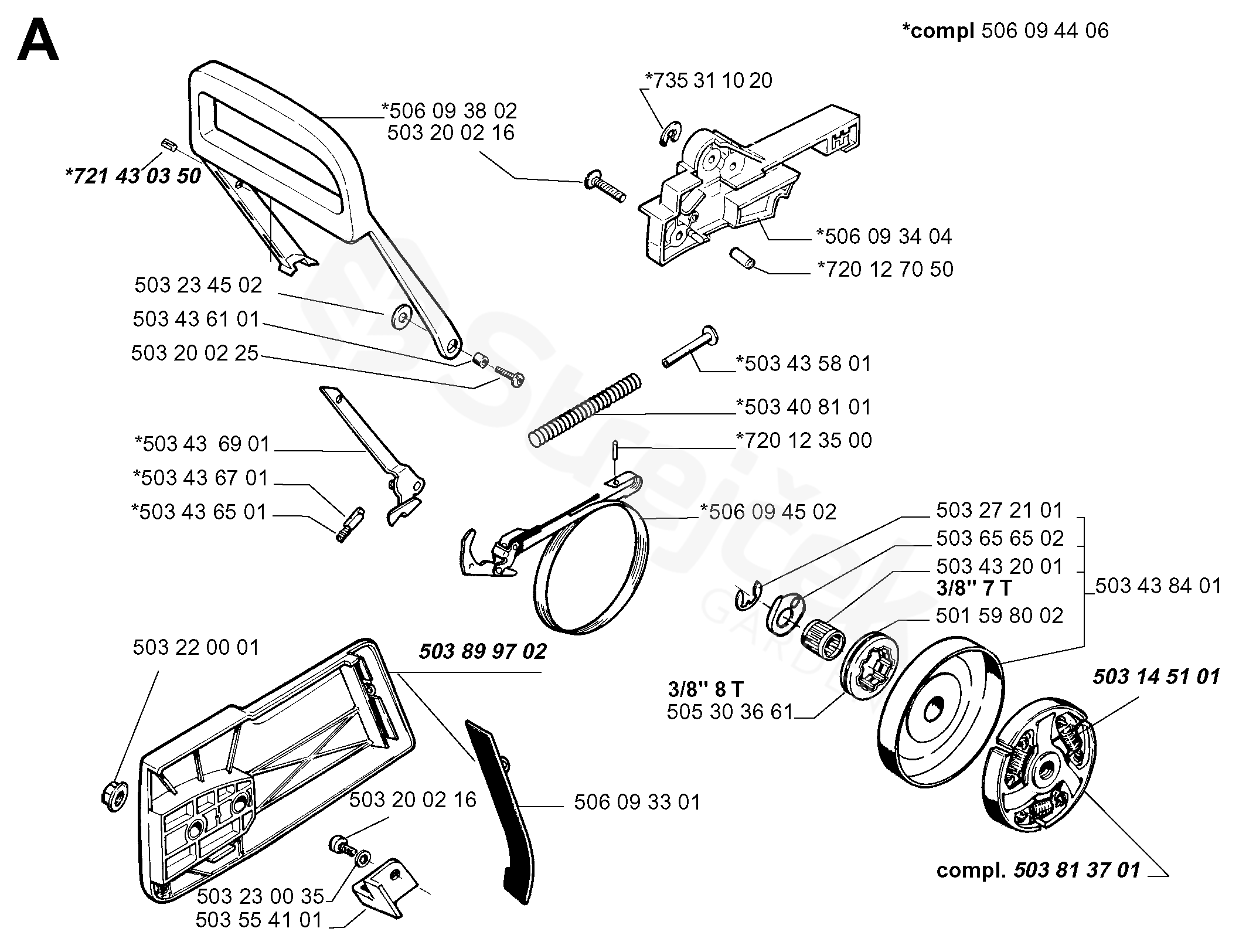

CHAIN BRAKE & CLUTCH COVER
2077 2077, 1998-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 2077, 1998-03
501598002 RÁFEK 501598002
503145101 CLUTCH SPRING 503145101
503200216 SCREW IHSCFM 503200216
503200225 SCREW IHSCFM 503200225
503220001 HEXAGON NUT 503220001
503230035 WASHER 503230035
503234502 WASHER 503234502
503272101 E-CLIP 503272101
503408101 BRAKE SPRING 503408101
503432001 DRŽÁK JEHLY
3/8 7 T 		503432001
503435801 BUSHING 503435801
503436101 SLEEVE 503436101
503436501 POLOHOVÁ PRUŽINA 503436501
503436701 LOCK 503436701
503436901 BRAKE LEVER ASSY 503436901
503438401 CLUTCH DRUM 503438401
503554101 BRACKET 503554101
503656502 WASHER 503656502
503813701 CLUTCH ASSY 503813701
503899702 CLUTCH COVER 503899702
505303661 RÁFEK 3/8 x 8T
3/8 8 T 		505303661
506093301 CHIP GUARD 506093301
506093404 BRAKE CASSETTE 506093404
506093802 HAND GUARD 506093802
506094406 CHAIN BRAKE ASSY 506094406
506094502 BRAKE MECHANISM 506094502
720123500 PARALLEL PIN 720123500
720127050 PARALLEL PIN 720127050
721430350 SPRING PIN 721430350
735311020 E-CLIP 735311020
