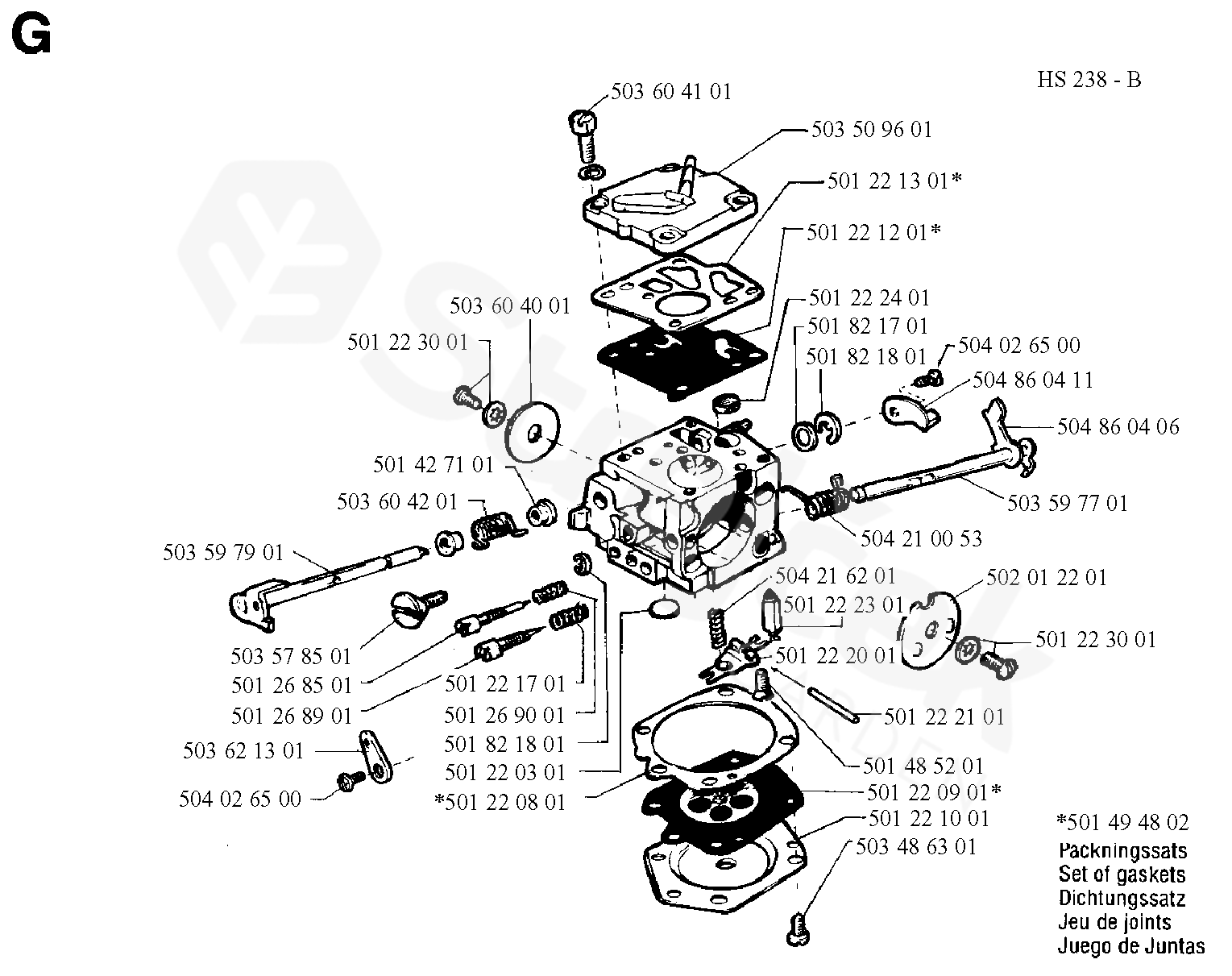

Spare parts - Partlist - 2094 2094, 1991-06 - CARBURETOR DETAILS

Everything for your machines

2094 2094, 1991-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 2094, 1991-06

501220301	PLUG WELCH	501220301
501220801	DIAPHRAGM 501 49 48 02 SET OF GASKETS	501220801
501220901	DIAPHRAGM 501 49 48 02 SET OF GASKETS	501220901
501221001	DIAPHRAGM	501221001
501221201	FUEL PUMP DIAPHRAM 501 49 48 02 SET OF GASKETS	501221201
501221301	FUEL PUMP 501 49 48 02 SET OF GASKETS	501221301
501221701	MIXTURE SCREW SPRING	501221701
501222001	LEVER	501222001
501222101	PIN RETAINING SCREW	501222101
501222301	NEEDLE	501222301
501222401	SCREEN	501222401
501223001	SCREW&LOCKWASHER	501223001
501268501	IDLE MIXTURE SCREW	501268501
501268901	MAIN MIXTURE SCREW	501268901
501269001	MIXTURE SCREW SPRING	501269001
501427101	CHOKE SHAFT	501427101
501485201	PIN RETAINING SCREW	501485201
501821701	WASHER	501821701
501821801	THROTTLE SH."E"RING	501821801
502012201	CHOKE SHUTTER	502012201
503486301	SCREW	503486301
503509601	FUEL PUMP COVER	503509601
503578501	IDLE SPEED SCREW	503578501
503597701	CHOKE SHAFT	503597701
503597901	THROTTLE SHAFT&LEVER	503597901
503604001	THROTTLE SHUTTER	503604001
503604101	SCREW	503604101
503604201	SPRING THROTT.RETURN	503604201
503621301	CHOKE LEVER	503621301
504026500	THRO.LEVER RET.SCREW	504026500
504210053	SPRING	504210053
504216201	SPRING	504216201
504860406	CHOKE LEVER	504860406
504860411	THROTTLE LEVER	504860411
