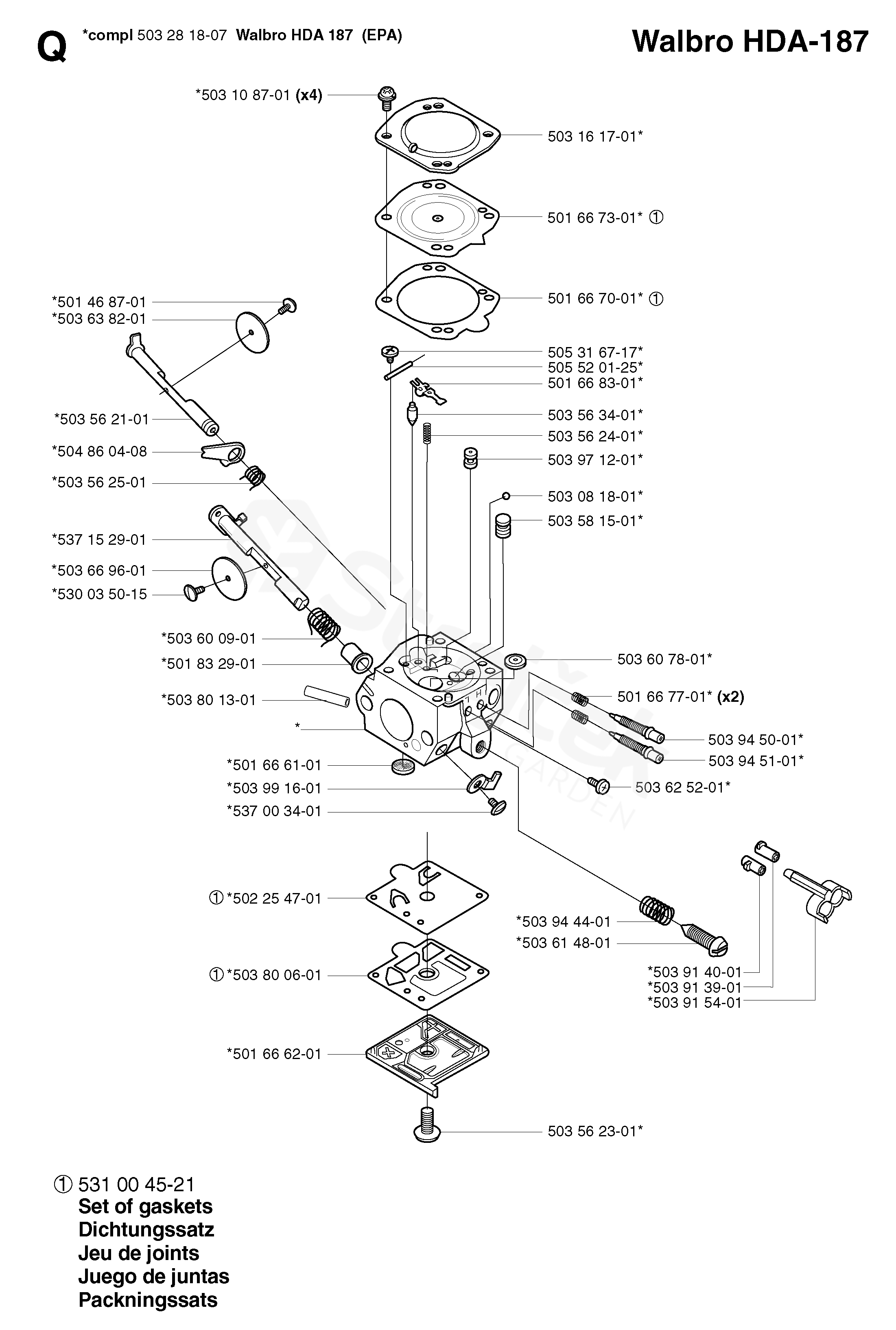

Spare parts - Partlist - 252 RX 252 RX EPA, 2002-08 - CARBURETOR DETAILS

Everything for your machines

252 RX 252 RX EPA, 2002-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 252 RX EPA, 2002-08

501468701	SCREW	501468701
501666101	SCREEN	501666101
501666201	COVER	501666201
501667001	GASKET 531 00 45-21 SET OF GASKETS	501667001
501667301	GASKET KIT 531 00 45-21 SET OF GASKETS	501667301
501667701	SPRING	501667701
501668301	LEVER	501668301
501832901	BUSHING	501832901
502254701	DIAPHRAGM PUMP 531 00 45-21 SET OF GASKETS	502254701
503081801	PLUG	503081801
503108701	SCREW	503108701
503161701	COVER	503161701
503281807	CARBURETTOR WALBRO HDA 187 (EPA)	503281807
503562101	SHAFT ASSY	503562101
503562301	SCREW	503562301
503562401	PRUŽINA	503562401
503562501	SPRING	503562501
503563401	NEEDLE VALVE	503563401
503581501	NOZZLE ASSY	503581501
503600901	SPRING	503600901
503607801	PLUG WELCH	503607801
503614801	SCREW	503614801
503625201	SCREW ASSY	503625201
503638201	VALVE CHOKE	503638201
503669601	VALVE THROTTLE	503669601
503800601	GASKET 531 00 45-21 SET OF GASKETS	503800601
503801301	FITTING	503801301
503913901	LIMITER CAP	503913901
503914001	LIMITER CAP	503914001
503915401	RETAINER	503915401
503944401	SPRING	503944401
503945001	NEEDLE	503945001
503945101	NEEDLE	503945101
503971201	JET	503971201
503991601	LEVER	503991601
504860408	LEVER	504860408
505316717	SCREW	505316717
505520125	PIN	505520125
530035015	SCREW	530035015
531004521	GASKET KIT	531004521
537003401	SCREW	537003401
537152901	SHAFT ASSY	537152901
