Spare parts > Jonsered > CHAIN SAWS > CS2163 CS2163, EPA, 2003-05 > CLUTCH & OIL PUMP
Back to

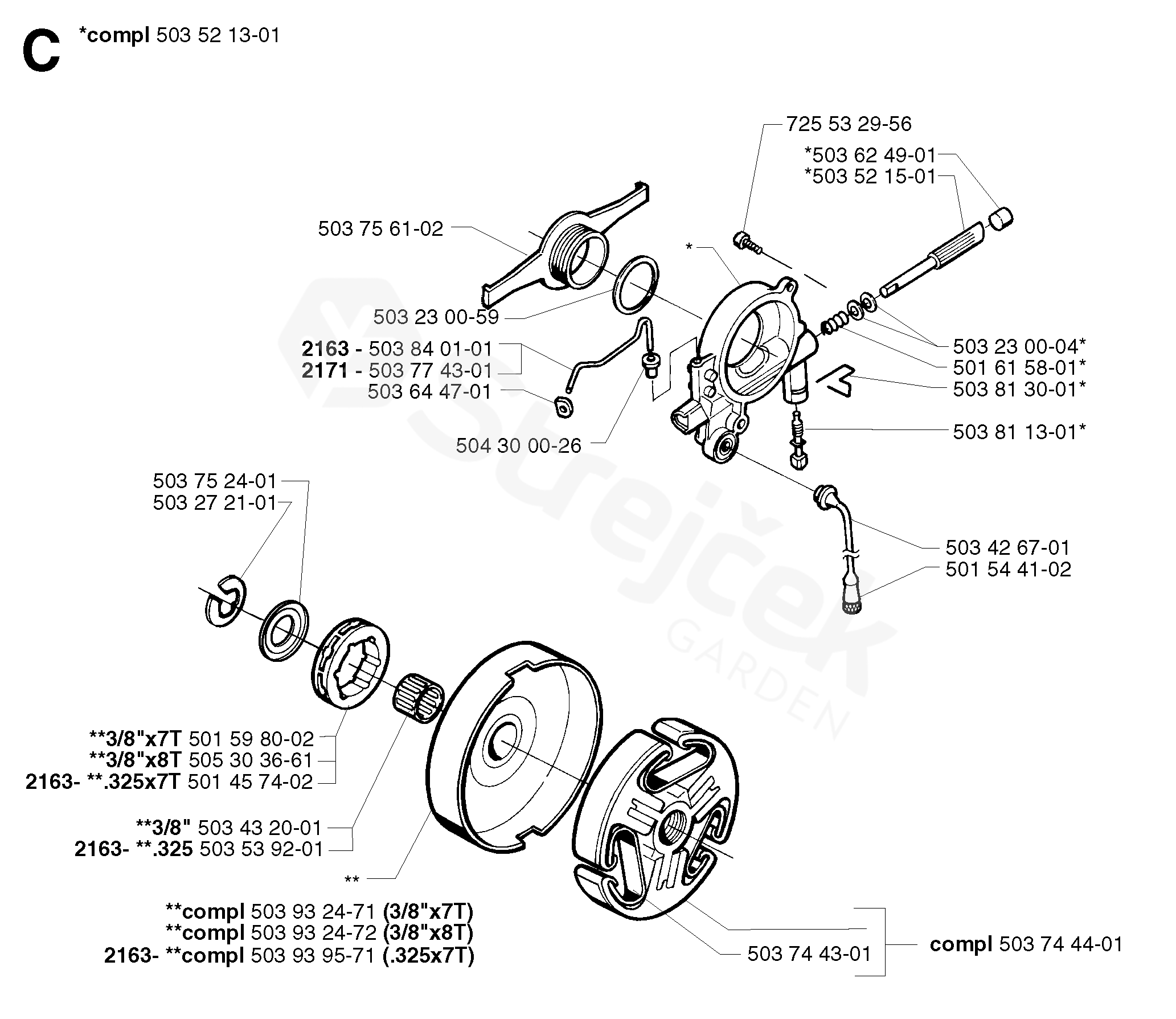

CLUTCH & OIL PUMP
CS2163 CS2163, EPA, 2003-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2163, EPA, 2003-05
501457402 RÁFEK
2163 .325X7T 		501457402
501544102 OIL SCREEN 501544102
501598002 RÁFEK
**3/8X7T 		501598002
501615801 PRUŽINA 501615801
503230004 PODLOŽKA 503230004
503230059 WASHER 503230059
503272101 E-CLIP 503272101
503426701 OIL HOSE 503426701
503432001 DRŽÁK JEHLY
**3/8 		503432001
503521301 OIL PUMP ASSY 503521301
503521501 PÍST ČERPADLO 503521501
503539201 JEHLOVÉ LOŽISKO
2163 .325 		503539201
503624901 SEALING PLUG 503624901
503644701 INLET PIPE 503644701
503744301 CLUTCH SPRING 503744301
503744401 CLUTCH ASSY 503744401
503752401 PODLOŽKA 503752401
503756102 GEAR WHEEL 503756102
503774301 OIL PIPE
2171 		503774301
503811301 PIN SCREW 503811301
503813001 PRUŽINA 503813001
503840101 OIL PIPE
2163 		503840101
503932471 CLUTCH DRUM
3/8X7T 		503932471
503932472 CLUTCH DRUM
3/8X8T 		503932472
503939571 CLUTCH DRUM
2163 .325X7T 		503939571
504300026 SEALING 504300026
505303661 RÁFEK 3/8 x 8T
**3/8X8T 		505303661
725532956 SCREW IHSCM 725532956
