Spare parts
Everything for your machines
Spare parts
>
Jonsered
>
CHAIN SAWS
>
CS2260/CS2260 WH CS2260/CS2260 WH
>

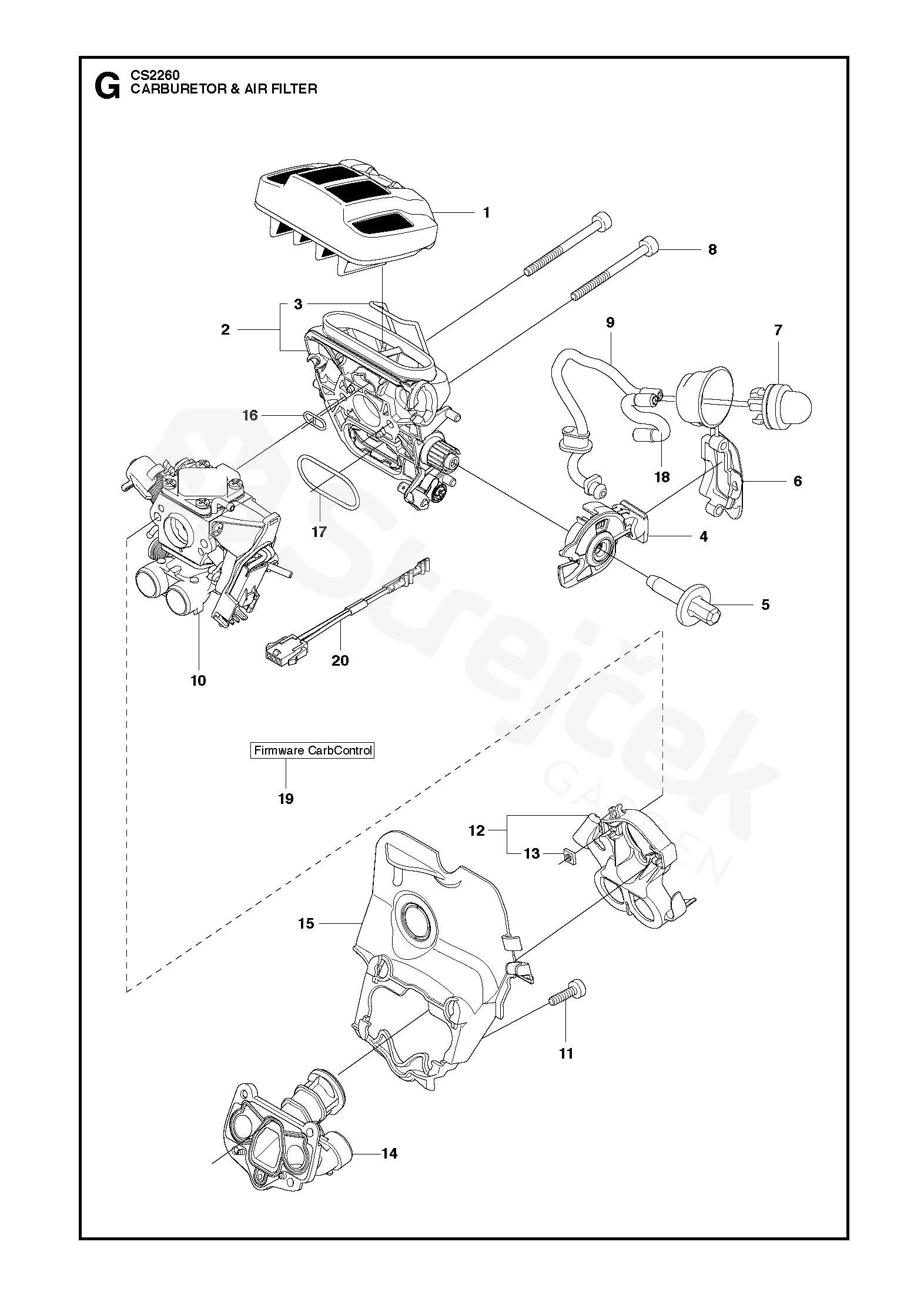

KARBURÁTOR & VZDUCHOVÝ FILTR
Back to
CS2260/CS2260 WH
CS2260/CS2260 WH
KARBURÁTOR & VZDUCHOVÝ FILTR
CS2260/CS2260 WH
CS2260/CS2260 WH
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CS2260/CS2260 WH
1
VZDUCHOVÝ FILTR KOMPL. NYLON 25 µm orange
505126307
2
DRŽÁK FILTRU KOMPL. WH
525397906
3
ZÁVĚS
505176901
4
CHOKE CONTROL ASSY
510017202
5
SCREW
505156201
6
SEALING
525588101
7
PURGE
503936601
8
SCREW IHSCM
503202550
9
VENTILAČNÍ OTVOR From s/n 20153900097
587645404
10
CARBURETTOR KIT ZAMA140055A
501463303
11
ŠROUB IHSCM
510020601
12
PŘÍRUBA
505165201
13
ČTYŘHRANNÁ MATICE
503226503
14
SACÍ POTRUBÍ
583964101
15
INTERMEDIATE WALL
520290901
16
SEALING
525619201
17
SEALING
525619001
18
FUEL HOSE
523056801
19
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
000000000
20
MONTÁŽNÍ SESTAVA KABELŮ
577536401
