Spare parts > Jonsered > CHAIN SAWS > CS2260/CS2260 WH CS2260/CS2260 WH > VYHŘÍVANÉ RUKOJETI
Back to

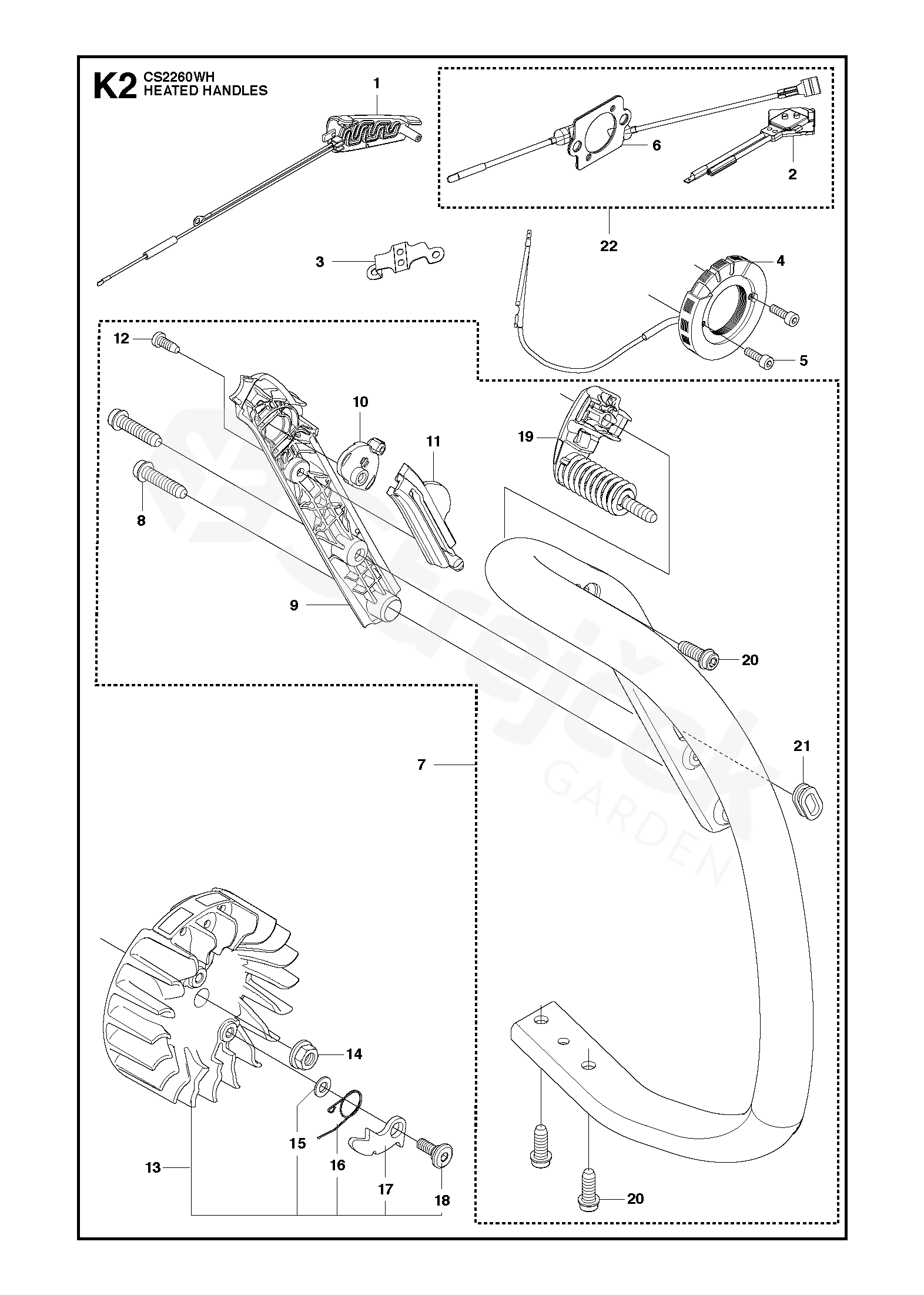

VYHŘÍVANÉ RUKOJETI
CS2260/CS2260 WH CS2260/CS2260 WH
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2260/CS2260 WH
1 VLOŽKA RUKOJETI 522741903
2 TERMOSTAT KOMPL. 578864601
3 POJISTNÝ KROUŽEK 537210801
4 STATOR GENERÁTORU 522611401
5 ŠROUB IHSCM 510020602
6 FOLIE 588168602
7 PŘEDNÍ RUKOJEŤ KOMPL. 576789202
8 SCREW IHSCT 503218876
9 COVER 505157404
10 RUKOJEŤ 537252502
11 KONTAKTNÍ PROUŽEK 510097802
12 SCREW CCRPANT 503212813
13 VENTILÁTOR KOMPL. 504872402
14 MATICE 503220401
15 PODLOŽKA 503230042
16 PRUŽINA 501673501
17 PAWL 501673201
18 SCREW 501819901
19 ANTIVIBRAČNÍ PRVEK 505129703
20 SCREW IHSCT 503218872
21 GROMMET 537088301
22 TERMOSTAT KOMPL. s/n up to 20164199999 582829601
