Spare parts > Jonsered > CHAIN SAWS > CS2171 CS2171, 2010-05 > CLUTCH & OIL PUMP
Back to

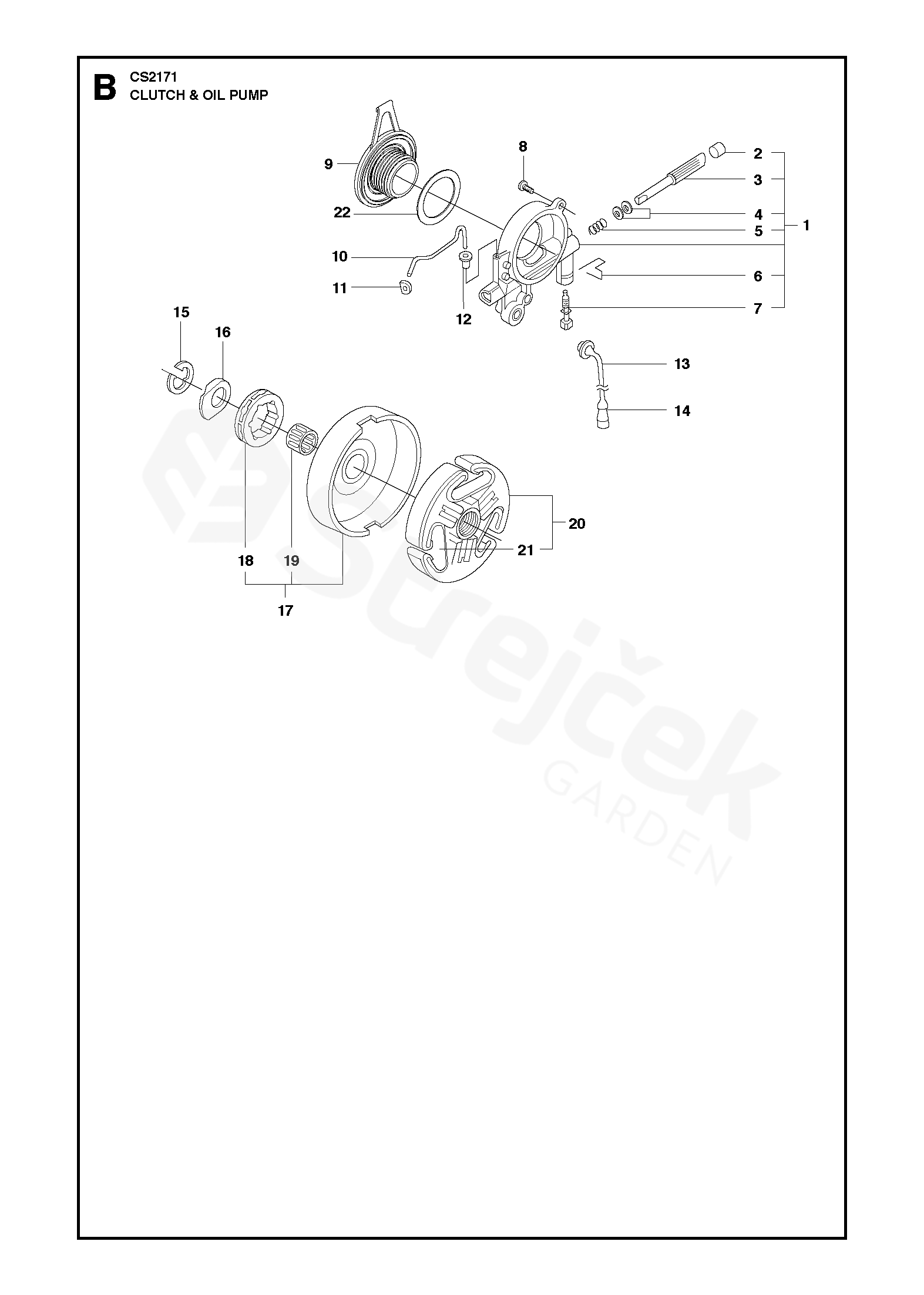

CLUTCH & OIL PUMP
CS2171 CS2171, 2010-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2171, 2010-05
1 OIL PUMP ASSY 503521303
2 SEALING PLUG 503624901
3 PÍST ČERPADLO 503521501
4 PODLOŽKA 503230004
5 PRUŽINA 501615801
6 PRUŽINA 503813001
7 PIN SCREW 503811301
8 SCREW IHSCM 725532956
9 PUMP PINION 537207805
10 OIL PIPE 503774301
11 INLET PIPE 503644701
12 SEALING 504300026
13 OIL HOSE 503426701
14 OIL SCREEN 501544102
15 E-CLIP 503272101
16 PODLOŽKA 503752401
17 CLUTCH DRUM
"3/8""x8T" 		503932472
18 RÁFEK 3/8 x 8T
"3/8""x8T" 		505303661
19 DRŽÁK JEHLY
"3/8""" 		503432001
20 CLUTCH ASSY 503744401
21 CLUTCH SPRING 537360601
22 WASHER 503230059
