Spare parts
>
Jonsered
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
600 RDII 600 RDII, 954130006, 1997-04
>
PRODUCT COMPLETE
Back to
600 RDII
600 RDII, 954130006, 1997-04
PRODUCT COMPLETE

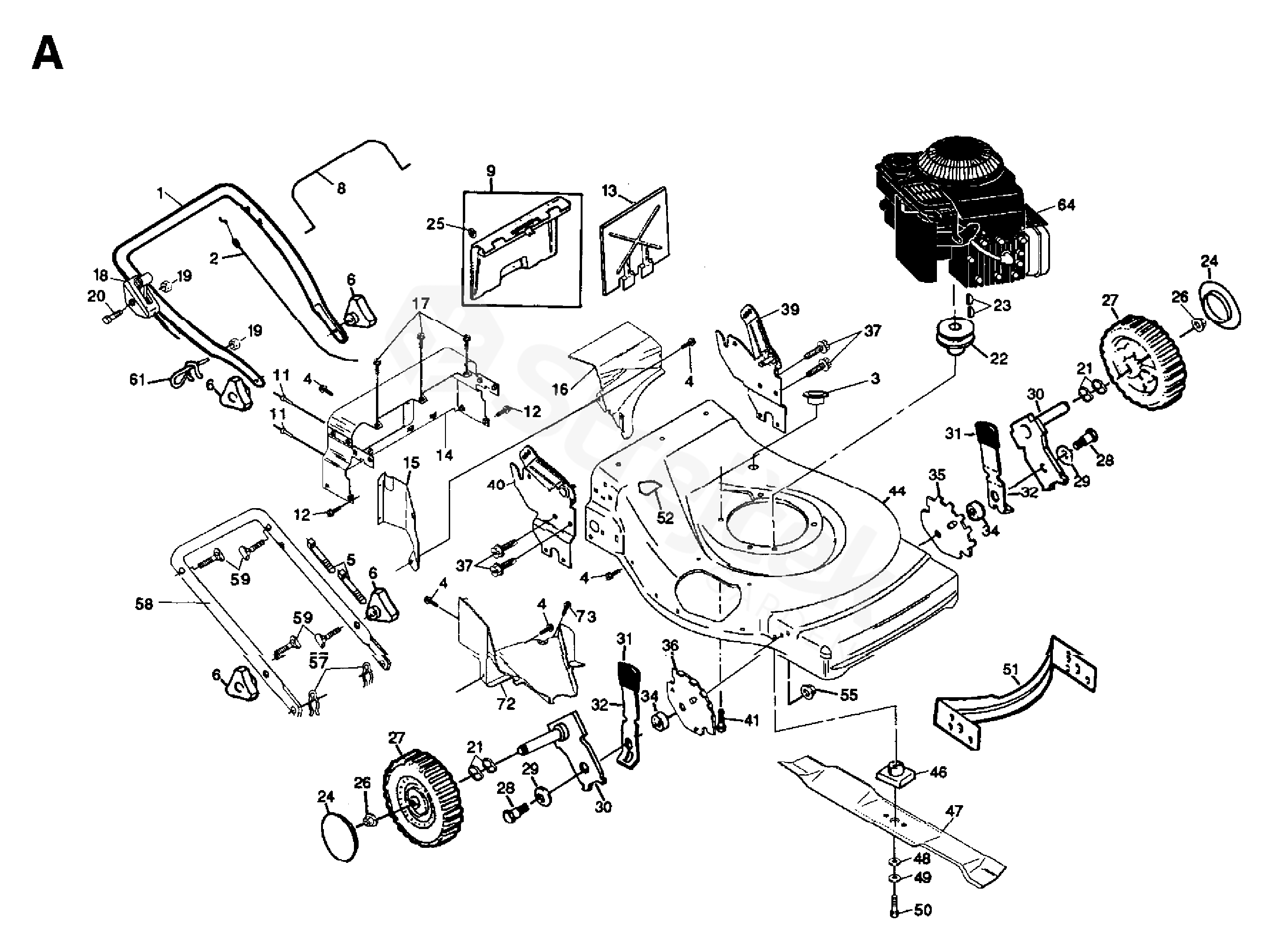

600 RDII
600 RDII, 954130006, 1997-04
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
600 RDII, 954130006, 1997-04
1
HANDLE
532155060
2
CABLE
532149771
3
PROTECTOR
532145073
4
SCREW
532150050
5
CLIP
532151517
6
KNOB
532136376
8
LOOP
532145641
9
COVER
532147690
11
NÝT
532128415
12
SCREW
532054583
13
PLUG
532150099
14
PROTECTOR
532153819
15
PROTECTOR
532153827
16
PROTECTOR
532153824
17
SCREW
532149027
18
THROTTLE TRIGGER
532700644
19
NUT
532063601
20
SCREW
532059935
21
WASHER
532057143
22
PULLEY
532084596
23
KEY
532087677
24
HUB CAP
532150182
25
RETAINING RING
812000014
26
MATICE
532083923
27
WHEEL
532151163
28
BOLT
532142748
29
WASHER
532062335
30
SHAFT
532151254
31
KNOB
532132800
32
SPRING
532125066
34
SPACER
532146630
35
BRACKET
532134341
36
BRACKET
532134340
37
SCREW
532150078
39
BRACKET
532153821
40
BRACKET
532153820
41
BOLT
532150406
44
HOUSING
532153748
46
BLADE ADAPTOR
532851514
47
MOWER BLADE
532141443
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
51
PARTITION
532148902
52
DECAL
532145494
55
LOCKNUT 3/8-16 RL508A/B
532751592
57
PIN RETAINING SCREW
532051793
58
HANDLE
532153825
59
BOLT
532131959
61
ROPE GUIDE
532132001
72
COVER
532145062
73
SCREW
817411312
