Jonsered
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>

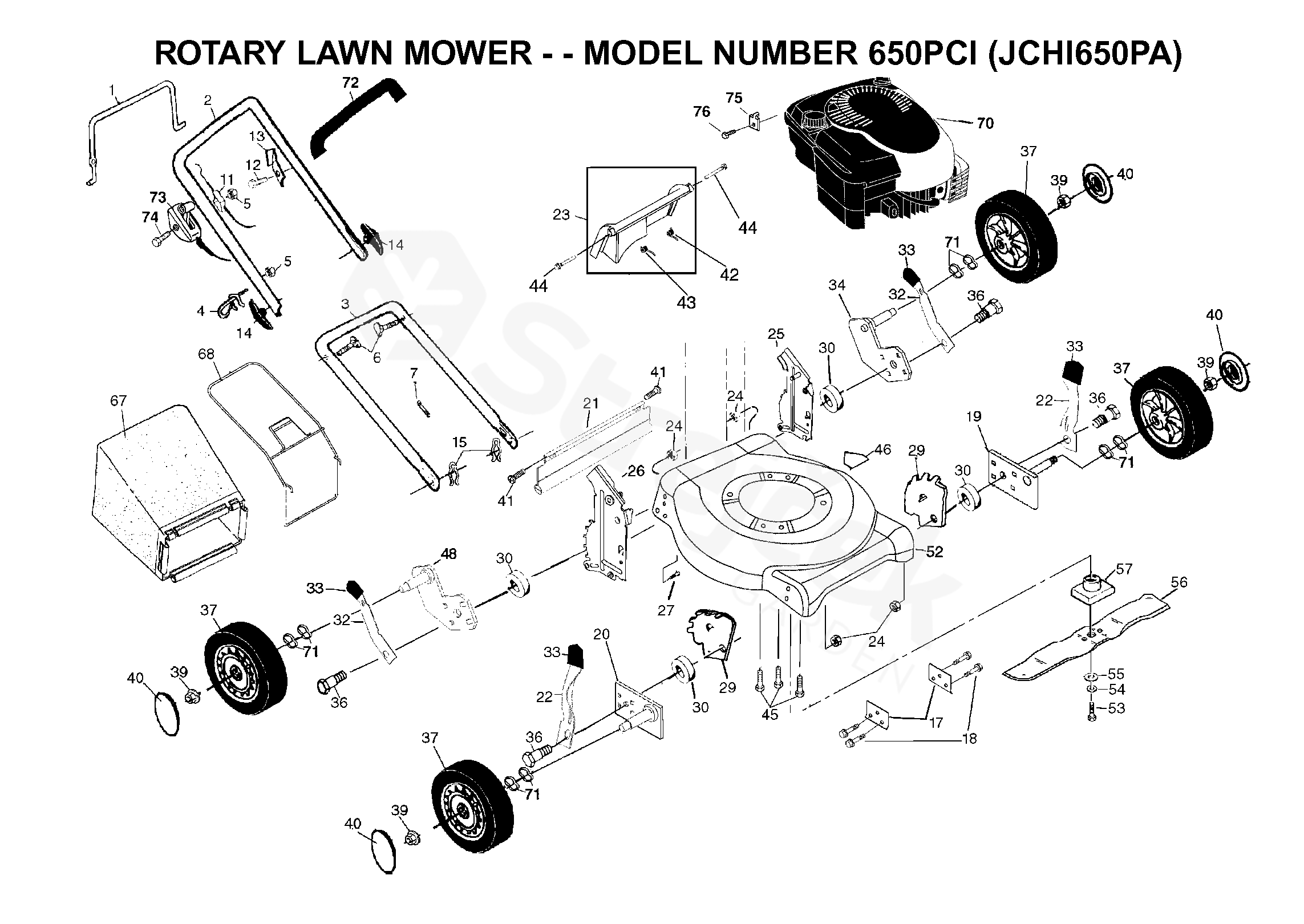

650 PCI 650 PCI, JCHI650PA, 2001-03
>
PRODUCT COMPLETE
Back to
650 PCI
650 PCI, JCHI650PA, 2001-03
PRODUCT COMPLETE
650 PCI
650 PCI, JCHI650PA, 2001-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
650 PCI, JCHI650PA, 2001-03
1
CONTROL BAR
532086902
2
HANDLE
532173440
3
HANDLE
532174110
4
ROPE GUIDE
532132001
5
NUT
532063601
6
BOLT
532131959
7
HOOP
532066426
11
CABLE
532701181
12
SCREW HEX HEAD RL508A/B
532750097
13
DESKA
532125162
14
KNOB
532136376
15
PIN RETAINING SCREW
532051793
17
SUPPORT BRACKET
532174112
18
SCREW
817600406
19
SHAFT
532168605
20
SHAFT
532168604
21
PLATE
532165858
22
SPRING
532168599
23
REAR DOOR
532166875
24
BOLT
532751153
25
HANDLE BRACKET
532174105
26
HANDLE BRACKET
532174106
27
SCREW
532851856
29
ADJUSTING BRACKET
532165704
30
SPACER
819112222
32
SPRING
532174107
33
KNOB
532701037
34
SHAFT
532174108
36
BOLT
532160828
37
WHEEL
532143593
39
MATICE
532083923
40
HUB CAP
532150182
41
SCREW
532088652
42
SPRING
532165766
43
SPRING
532165767
44
BOLT
532165912
45
BOLT
532150406
46
DECAL
532085463
48
SHAFT
532174109
52
CHASSIS
532178283
53
SCREW
532851084
54
PODLOŽKA
532850263
55
PODLOŽKA
532851074
56
MOWER BLADE
532165833
57
BLADE ADAPTOR
532851514
67
GRASS BAG
532178282
68
CATCH
532165755
71
WASHER
532057143
72
HANDLE
532164265
73
THROTTLE CONTROL
532166971
74
SCREW
532144929
75
CLAMP
532111190
76
SCREW
532083816
OPERATORS MANUAL
532178280
