Spare parts - Partlist - 961480022 961480022, 96148002200, 2011-01 - FRAME

Everything for your machines

961480022 961480022, 96148002200, 2011-01

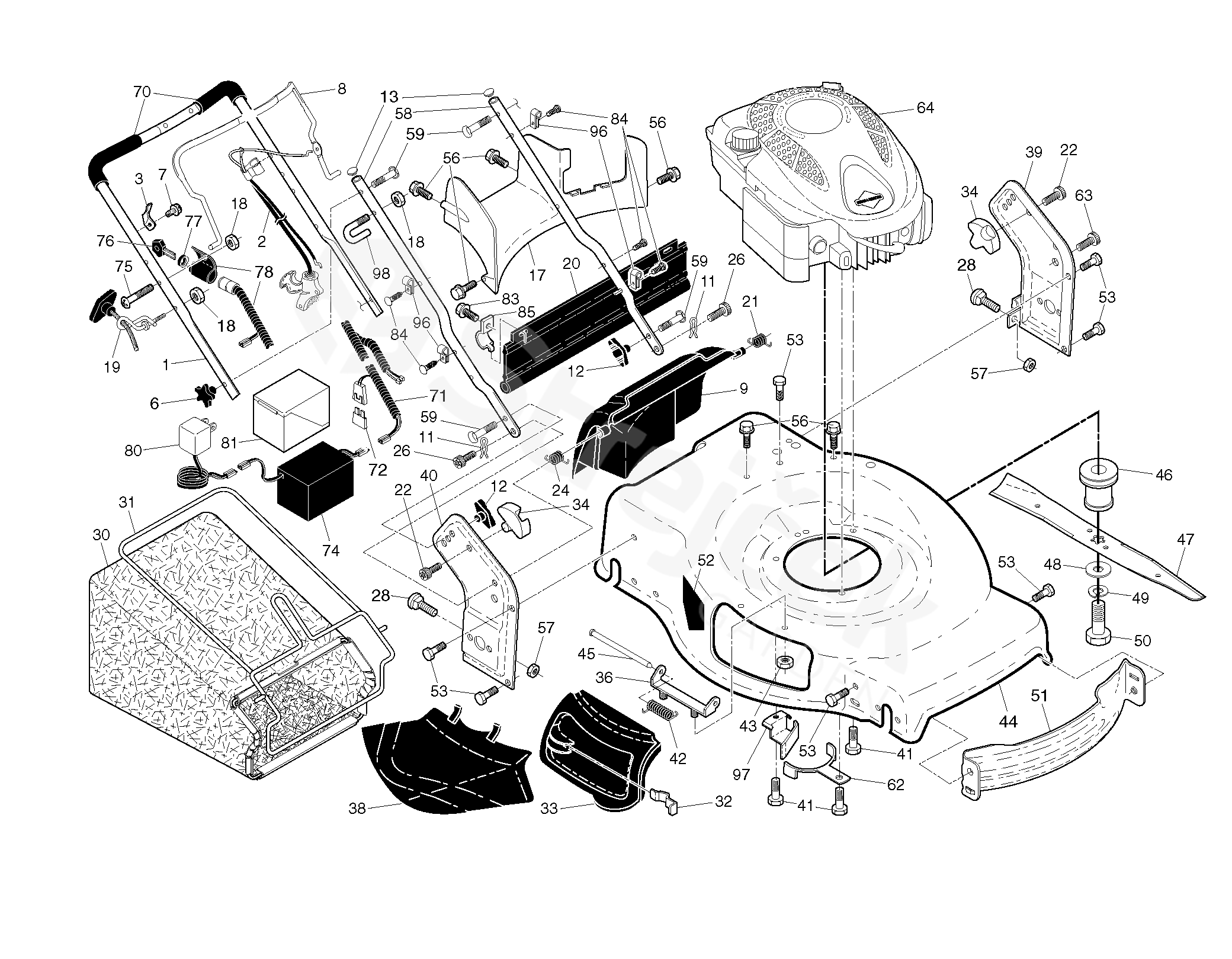

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 961480022, 96148002200, 2011-01

1	HANDLE HALF	532184576
2	CABLE	532433745
3	BRACKET	532430034
6	KNOB	532182398
7	SCREW	532750634
8	OPERATOR-PRESENCE CONTROL	532426505
9	DOOR ASY	532421088
11	HAIR PIN COTTER	532425575
12	KNOB	532191938
13	PLUG	532437516
17	BAFFLE	532431238
18	MATICE	532132004
19	GUIDE	532194788
20	DOOR	532429157
21	SPRING	532419949
22	SCREW	532141841
24	SPRING RH	532419948
26	SCREW	532419945
28	BOLT	872250505
30	GRASS BAG	532429018
31	GRASSBAG	532419951
32	LATCH	532441192
33	MULCH DOOR	532432642
34	PIVOT	532426125
36	HINGE	532175735
38	DEFLECTOR	532426129
39	HANDLE BRACKET LH	532442530
40	HANDLE BRACKET RH	532440527
41	BOLT	532150406
42	HINGE	532193000
43	MATICE	532191730
44	HOUSING	532438894
45	ROD	532175650
46	ADAPTER	532421782
47	BLADE.22PLUS	532420463
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	BAFFLE	532430599
52	DECAL	532404763
53	BOLT	817000510
56	SCREW	817411312
57	MATICE	532155377
58	HANDLE	532441197
59	HANDLE BOLT	532191574
62	BRACKET	532435059
63	SCREW	532178848
64	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 128T05-1548-B1 FOR SERVICE & PARTS 1-800-233-3723	000000000
70	HANDLE	532182748
71	HARNESS	532425019
72	FUSE	532425937
74	BATTERY	532424010
75	SCREW	532186159
76	KEY	532180331
77	NUT CAP	532194848
78	HARNESS	532194847
80	BATTERY CHARGER	532428626
81	BATTERY BOX	532428221
83	SCREW HEX HEAD RL508A/B	532750097
84	FASTENER	532428124
85	BRACKET	532434530
96	CLIP	532197991
97	BRACKET	532434893
98	CLIP	532401607
