Jonsered
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
LM 2146 CD LM 2146 CD, 96515990101, 2009-01
>
PRODUCT COMPLETE
Back to
LM 2146 CD
LM 2146 CD, 96515990101, 2009-01
PRODUCT COMPLETE

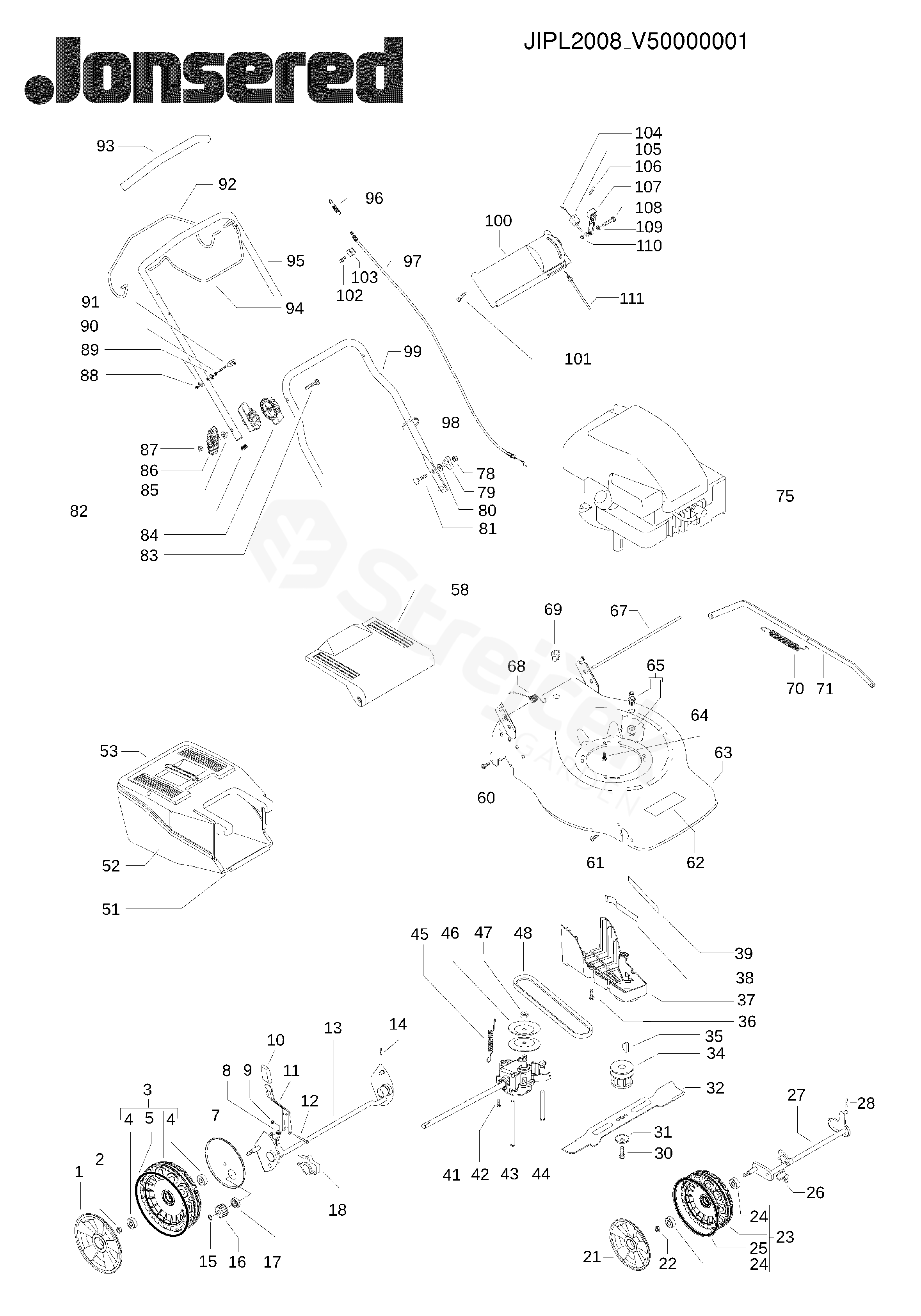

LM 2146 CD
LM 2146 CD, 96515990101, 2009-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LM 2146 CD, 96515990101, 2009-01
1
HUB CAP
544446101
2
MATICE
504857801
3
WHEEL ASSY
502445603
4
BALL BEARING
504548201
5
O-RING
544432803
7
DUST COVER
504827301
8
PRUŽINA
531210817
9
NUT
531208492
10
KNOB
531207986
11
LIFTING LEVER ASSY
501979901
12
SCREW
538235807
13
REAR AXLE
504800101
14
KOLÍČEK
531206653
15
PODLOŽKA
531208772
16
PASTOREK
544342301
17
BEARING
531208778
18
SUPPORT
531205944
21
HUB CAP
544445901
22
MATICE
504857801
23
WHEEL ASSY
502445003
24
BALL BEARING
504548201
25
O-RING
544433103
26
CLAMP
531205057
27
FRONT AXLE ASSY
504856501
28
KOLÍČEK
531206653
30
SCREW
531208008
31
WASHER
531207237
32
MOWER BLADE
531211017
34
ADAPTER
531206169
35
KEY
505290901
36
SCREW
531207856
37
BELT GUARD
544462201
38
WEAR PROTECTION
504046101
39
WEAR PROTECTION
544462501
41
GEARBOX
544343203
42
SCREW
531206677
43
BELT GUIDE
544934401
44
BELT GUIDE
544934301
45
SPRING
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
504034801
51
LEVER
531208300
52
BAG
531208306
53
BAG
531205949
58
DEFLECTOR
531204632
60
SCREW
531208216
61
SCREW
531208844
62
DECAL
531212934
63
DECK
531213910
64
SCREW
531212851
65
CONNECTOR
531205848
67
SHAFT
531205060
68
SPRING
531205999
69
BRACKET
531208043
70
SPRING
531213783
71
ROD
531205069
78
NUT
531207982
79
WING NUT
531204923
80
WASHER
531204904
81
SCREW
531204921
82
PLUG
531208950
83
SCREW
531205842
84
KNOB
531205839
85
WASHER
531205841
86
KNOB
531205840
87
NUT
531207982
88
NUT
531208491
89
PODLOŽKA
531204961
90
NUT
531207165
91
PIN RETAINING SCREW
531205169
92
MANIGLIA FRIZIONE (D.8) (546)
531212074
93
BAG
531208307
94
LOOP
531212467
95
HANDLE
531213441
96
SPRING
531205215
97
CABLE
544908001
98
CABLE HOLDER
531205581
99
MANICO SUPERIORE A546L-SL-LK
531206040
100
PANEL
531205134
101
SCREW
531208844
102
SCREW
531208217
103
SUPPORT
531207923
104
WIRE
531213434
105
CASING
531212689
106
SCREW
531212690
107
BRACKET
531205139
108
SCREW
531207836
109
WASHER
531206666
110
NUT
531208492
111
WIRE
531207754
