Spare parts - Partlist - LM 2155 M LM 2155 M, 96111002900, 2010-01 - FRAME & ENGINE

Everything for your machines

LM 2155 M LM 2155 M, 96111002900, 2010-01

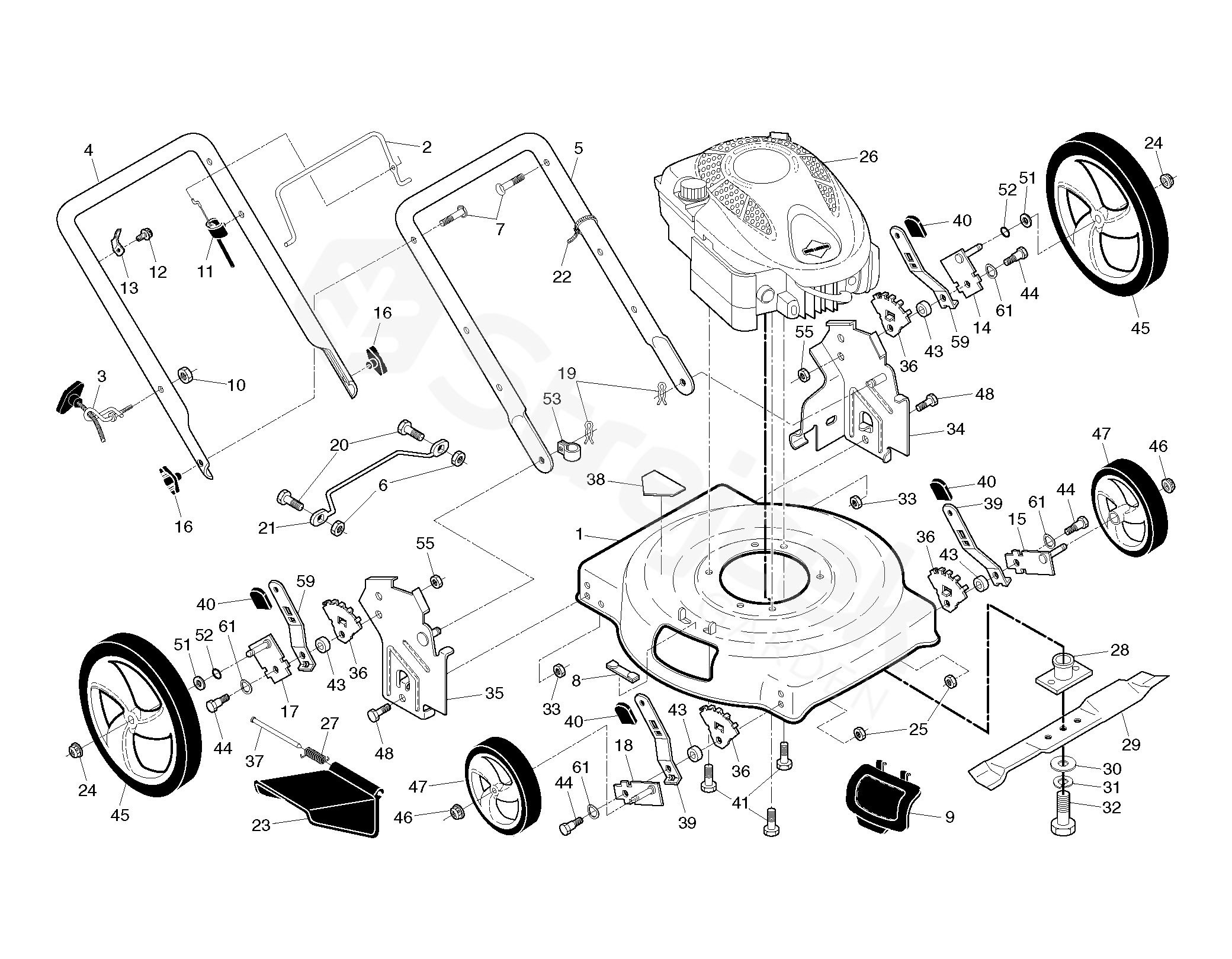

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LM 2155 M, 96111002900, 2010-01

1	HOUSING	532164925
2	BAIL	532413969
3	GUIDE	532194788
4	HANDLE	532195547
5	HANDLE	532174291
6	NUT	532069180
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532158152
12	SCREW	532750634
13	BRACKET	532430034
14	AXLE REAR LH	532410600
15	AXLE FRONT LH	532406689
16	KNOB	532191938
17	AXLE REAR RH	532410601
18	AXLE FRONT RH	532406690
19	PIN RETAINING SCREW	532051793
20	SCREW	871191012
21	GUARD	532431995
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
24	NUT	532409149
25	NUT	532426589
26	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 124T02-1353-B1	000000000
27	TORSION SPRING	532408585
28	ADAPTER	532420097
29	MOWER BLADE	532199379
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	BRACKET	873800500
34	BRACKET LH	532403508
35	BRACKET RH	532403507
36	WHEEL ADJ BRACKET FRONT	532410594
37	HINGE	532160833
38	DECAL	532182166
39	SPRING FRONT	532406428
40	KNOB	532701037
41	BOLT	532150406
43	SPACER	532401629
44	BOLT	532401638
45	WHEEL	532433121
46	MATICE	532409148
47	WHEEL ASSY	532197025
48	BOLT	874760514
51	PODLOŽKA	532088348
52	O-KROUŽEK	532197480
53	CLIP	532197991
55	BOLT	532751153
59	SPRING	532410595
61	WASHER	532401630
