Spare parts
>
Jonsered
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
LM 2147 CMD LM 2147 CMD, 965160101, 2007-04
>
WHEELS & TIRES
Back to
LM 2147 CMD
LM 2147 CMD, 965160101, 2007-04

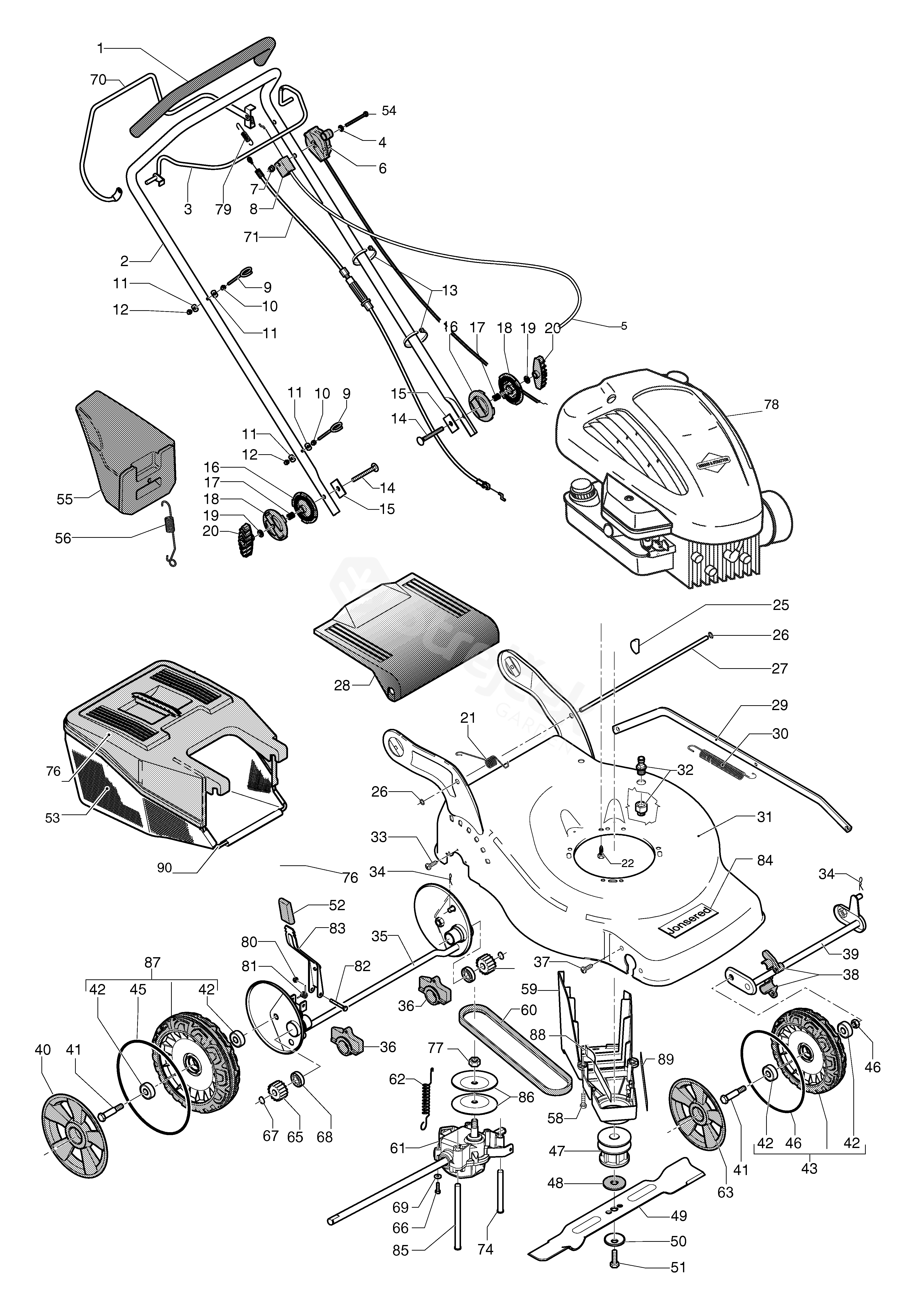

WHEELS & TIRES
LM 2147 CMD
LM 2147 CMD, 965160101, 2007-04
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LM 2147 CMD, 965160101, 2007-04
1
PROTECTOR
531210725
2
HANDLE
531212061
3
LOOP
531212063
4
WASHER
531206666
5
BRAKE WIRE
531213522
6
TRIGGER
531206447
7
NUT
531205213
8
BRACKET
531208043
9
PIN RETAINING SCREW
531205169
10
PODLOŽKA
531204961
11
NUT
531207165
12
NUT
531208491
13
CABLE HOLDER
531205581
14
SCREW
531211480
15
PLATE
531211581
16
SEGMENT
531211473
17
SPRING
531211476
18
SEGMENT
531211474
19
WASHER
531204922
20
KNOB
531205840
21
SPRING
531211840
22
SCREW
531207044
23
PODLOŽKA
531207981
24
NUT
531207982
25
KEY
531204907
26
RETAINING RING
531210824
27
TIE ROD
531211441
28
DEFLECTOR
531205984
29
ROD
531205069
30
SPRING
531213783
31
DECK
531213901
32
CONNECTOR
531205848
33
SCREW
531208216
34
KOLÍČEK
531206653
35
REAR AXLE
501979801
36
SUPPORT
531205944
37
SCREW
531208844
38
CLAMP
531205057
39
FRONT AXLE
544459101
40
HUB CAP
544446101
41
SCREW
544453401
42
BALL BEARING
504548201
43
WHEEL ASSY
502445003
45
O-RING
544432803
46
O-RING
544433103
47
ADAPTER
531205048
48
WASHER
531207243
49
MOWER BLADE
531211017
50
WASHER
531207237
51
SCREW
531208008
52
KNOB
531207986
53
BAG
531208306
54
SCREW
531206212
55
PLUG
531210617
56
SPRING
531211184
58
SCREW
531207856
59
BELT GUARD
544462201
60
BELT
504034801
61
GEARBOX
544343201
62
SPRING
544934701
63
HUB CAP
544445901
65
PASTOREK
544342301
66
SCREW
538240862
67
PODLOŽKA
531208772
68
BEARING
531208778
70
LOOP
531212675
71
CABLE
544908001
74
BELT GUIDE
544934301
75
SPACER
531211966
76
COVER
531208296
77
NUT
504548001
79
SPRING
531210573
80
NUT
531208492
81
PRUŽINA
531210817
82
SCREW
531205212
83
LIFTING LEVER ASSY
501979901
84
DECAL
531212934
85
BELT GUIDE
544934401
86
PULLEY
504547901
87
WHEEL ASSY
502445603
88
WEAR PROTECTION
504046101
89
WEAR PROTECTION
544462501
90
LEVER
531208300
