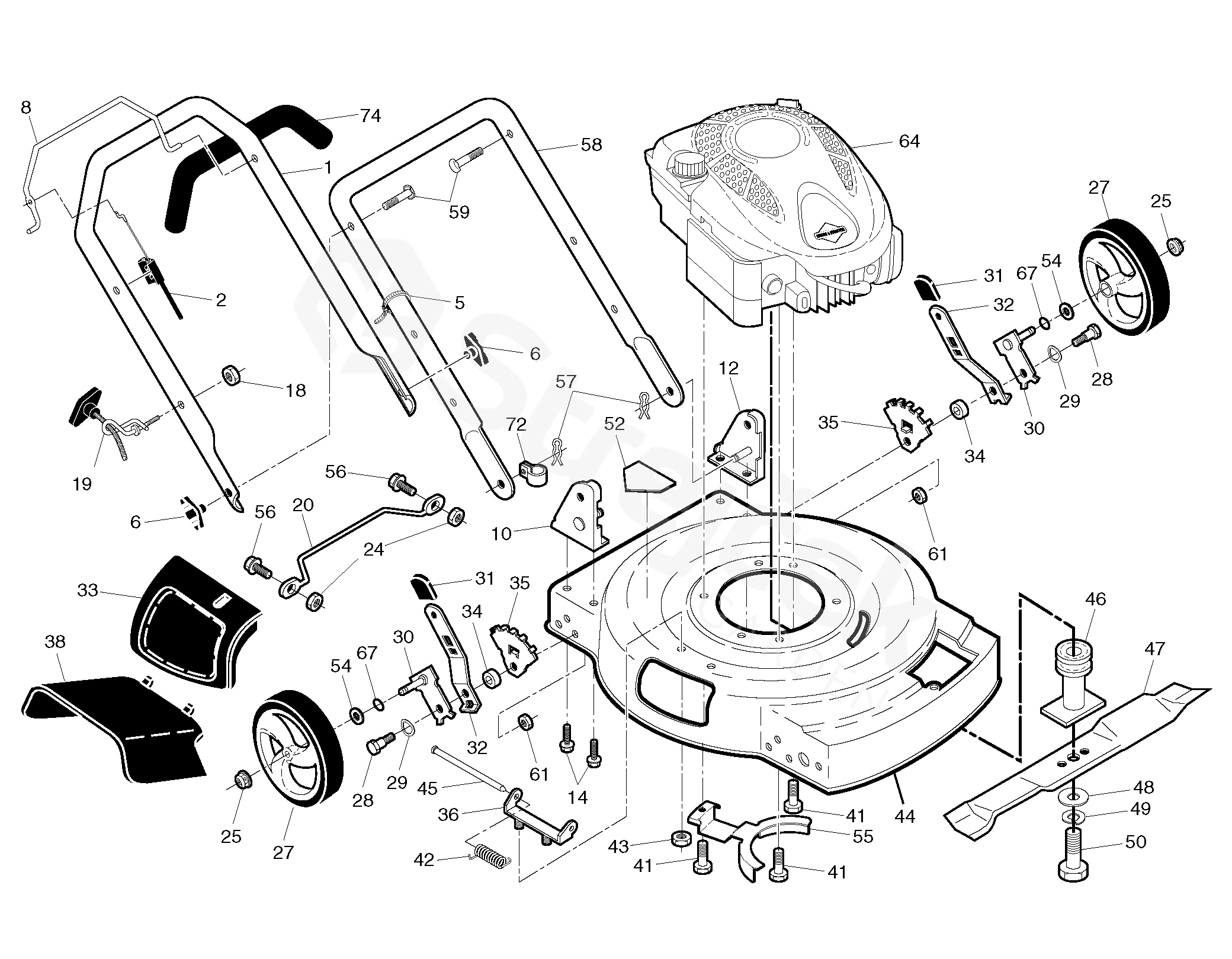

Spare parts - Partlist - LM 2155 MD LM 2155 MD, 96121001902, 2010-11 - FRAME & ENGINE

Everything for your machines

LM 2155 MD LM 2155 MD, 96121001902, 2010-11

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LM 2155 MD, 96121001902, 2010-11

1	HANDLE	532167163
2	CABLE	532183567
5	HOOP	532066426
6	KNOB	532191938
8	CONTROL BAR	532189903
10	BRACKET RH	532170975
12	BRACKET LH	532170977
14	SCREW	532149741
18	MATICE	532132004
19	GUIDE	532194788
20	GUARD	532431995
24	NUT	532069180
25	MATICE	532409148
27	WHEEL	532411324
28	BOLT	532174719
29	WASHER	532401630
30	AXLE	532407871
31	KNOB	532132800
32	SPRING	532410595
33	GUARD	532151889
34	SPACER	532401629
35	BRACKET	532410807
36	BRACKET	532154132
38	DEFL ECTOR, DISCHARGE	532176509
41	BOLT	532150406
42	SPRING	532152124
43	MATICE	873800400
44	HOUSING	532439066
45	ROD	532147286
46	ADAPTER	532421176
47	MOWER BLADE	532199379
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
52	DECAL	532182166
54	PODLOŽKA	532088348
55	KEEPER	532429001
56	SCREW	871191012
57	PIN RETAINING SCREW	532051793
58	HANDLE	532155044
59	HANDLE BOLT	532191574
61	MATICE	873930600
64	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 124T02-1408-B1 FOR SERVICE & PARTS 1-800-233-3723	000000000
67	O-KROUŽEK	532197480
72	CLIP	532197991
74	HANDLE	532164265
	LABEL WARNING NOT SHOWN	532182191
