Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > LM 2156 CMDA LM 2156 CMDA, 96141022303, 2010-12 > DRIVE
Back to

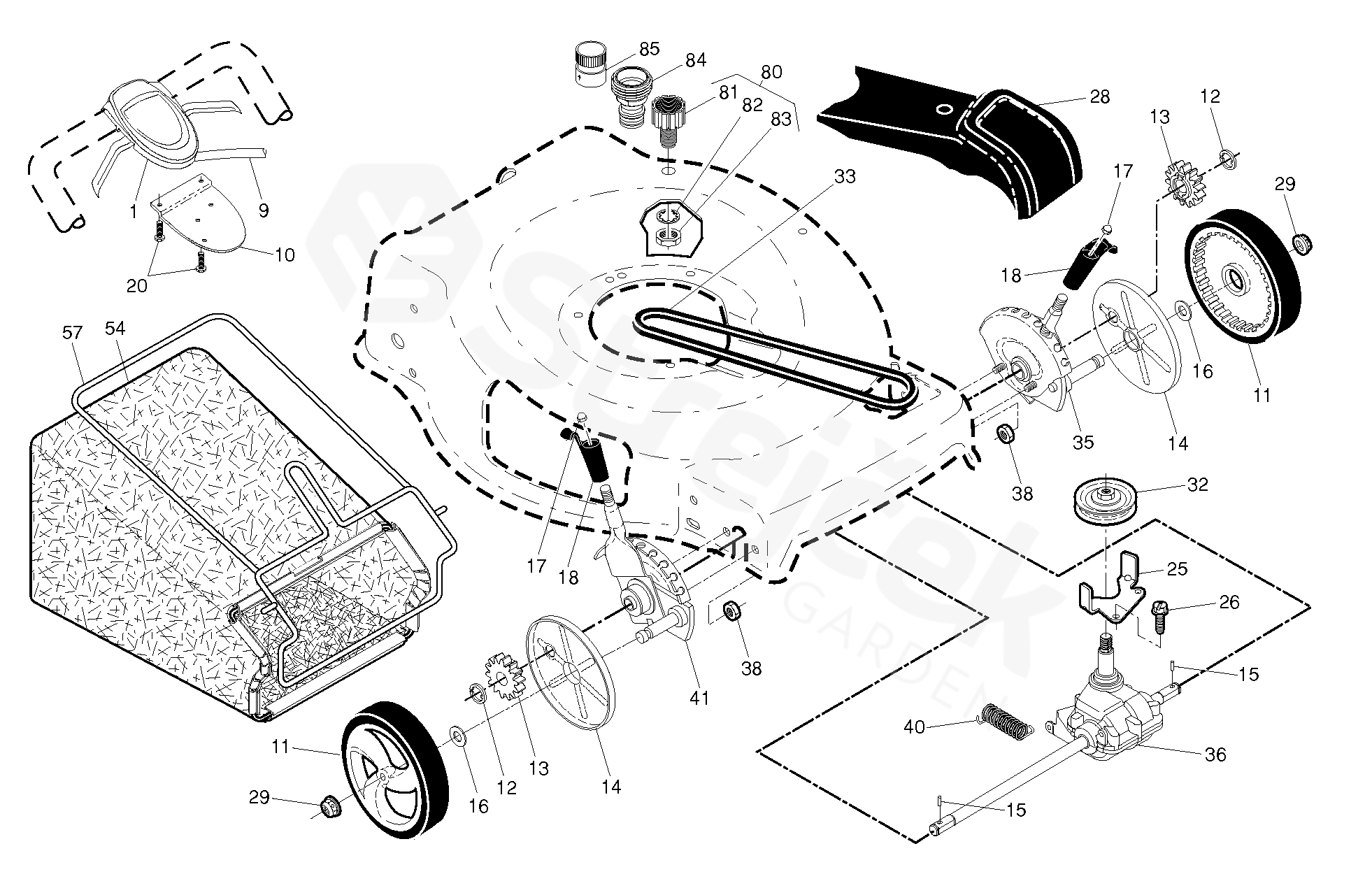

DRIVE
LM 2156 CMDA LM 2156 CMDA, 96141022303, 2010-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LM 2156 CMDA, 96141022303, 2010-12
1 CONTROL 532431381
9 CABLE 532431649
10 BRACKET 532432790
11 KOLO 532402567
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 532189403
15 PAWL, DRIVE 532404845
16 PODLOŽKA 532067725
17 NUT 532413808
18 KNOB 532431895
20 SCREW 532181698
25 BRACKET 532431711
26 SCREW 532163409
28 DRIVE COVER 532432675
29 MATICE 532409148
32 PULLEY 532194018
33 V-BELT 532426609
35 ADJUSTMENT WHEEL 532431124
36 GEARBOX ASSY 532424657
38 MATICE 532191730
40 PRUŽINA 532406558
41 ADJUSTMENT WHEEL 532431121
54 GRASSBAG 532431555
57 GRASSBAG 532419951
80 WATER CONNECTOR 532421114
81 HOSE FITTING 532419735
82 LOCKWASHER 532415585
83 LOCKING NUT 532415586
84 ADAPTER 532432066
85 COUPLING 532416405
