Jonsered
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
LM 2147 CMDE LM 2147 CMDE, 965160201, 2008-02
>
PRODUCT COMPLETE
Back to
LM 2147 CMDE
LM 2147 CMDE, 965160201, 2008-02
PRODUCT COMPLETE

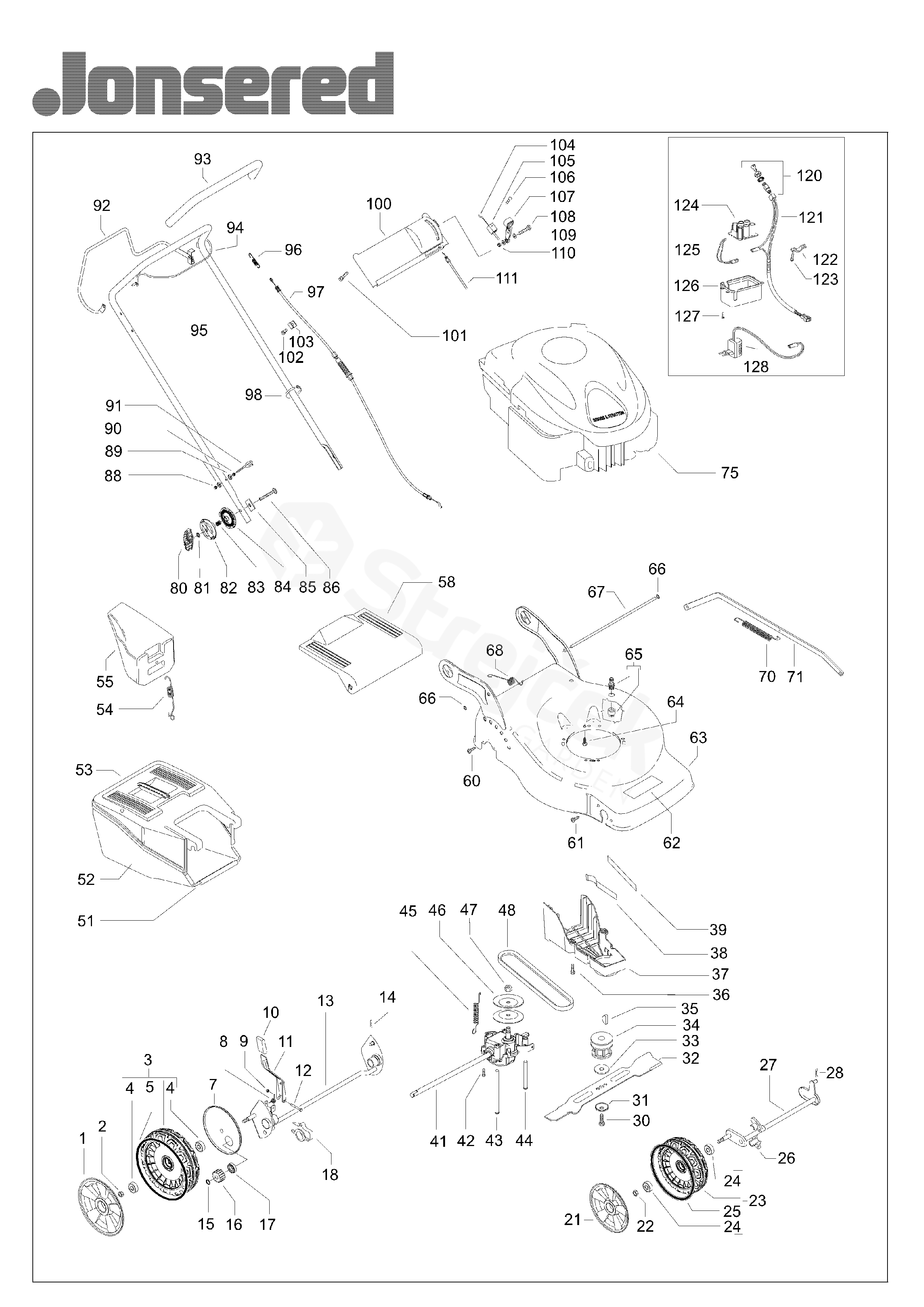

LM 2147 CMDE
LM 2147 CMDE, 965160201, 2008-02
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LM 2147 CMDE, 965160201, 2008-02
1
HUB CAP
544446101
2
MATICE
504857801
3
WHEEL ASSY
502445603
4
BALL BEARING
504548201
5
O-RING
544432803
7
DUST COVER
504827301
8
PRUŽINA
531210817
9
NUT
531208492
10
KNOB
531207986
11
LIFTING LEVER ASSY
501979901
12
SCREW
538235807
13
REAR AXLE
504800101
14
KOLÍČEK
531206653
15
PODLOŽKA
531208772
16
PASTOREK
544342301
17
BEARING
531208778
18
SUPPORT
531205944
21
HUB CAP
544445901
22
MATICE
504857801
23
WHEEL ASSY
502445003
24
BALL BEARING
504548201
25
O-RING
544433103
26
CLAMP
531205057
27
FRONT AXLE
544459101
28
KOLÍČEK
531206653
30
SCREW
531208008
31
WASHER
531207237
32
MOWER BLADE
531211017
33
WASHER
531207243
34
ADAPTER
531205048
35
KEY
531204907
36
SCREW
531207856
37
BELT GUARD
544462201
38
WEAR PROTECTION
504046101
39
WEAR PROTECTION
544462501
41
GEARBOX
544343203
42
SCREW
538240862
43
BELT GUIDE
544934401
44
BELT GUIDE
544934301
45
SPRING
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
504034801
51
LEVER
531208300
52
BAG
531208306
53
COVER
531208296
54
SPRING
531211184
55
PLUG
531210617
58
DEFLECTOR
531205984
60
SCREW
531208216
61
SCREW
531208844
62
DECAL
531212934
63
DECK
531213901
64
SCREW
531212851
65
CONNECTOR
531205848
66
RETAINING RING
531210824
67
TIE ROD
531211441
68
SPRING
531211840
70
SPRING
531213783
71
ROD
531205069
80
KNOB
531205840
81
WASHER
531204922
82
SEGMENT
531211474
83
SPRING
531211476
84
SEGMENT
531211473
85
PLATE
531211581
86
SCREW
531211480
88
NUT
531208491
89
PODLOŽKA
531204961
90
NUT
531207165
91
PIN RETAINING SCREW
531205169
92
LOOP
531212675
93
PROTECTOR
531210725
94
LOOP
531212063
95
MANICO UNICO SAGM HUSQ C/PLANC
531212069
96
SPRING
531210573
97
CABLE
544908001
98
CABLE HOLDER
531205581
100
PLATE
531205609
101
SCREW
531208844
102
SCREW
531208217
103
BRACKET
531208043
104
WIRE
531213434
105
BRACKET
531208043
106
SCREW
531208217
107
BRACKET
531205139
108
SCREW
531207836
109
WASHER
531206666
110
NUT
531208492
111
WIRE
531207754
120
SWITCH
531212514
121
CABLE
531213414
122
CLAMP
531207840
123
SCREW
531208844
124
BATTERY
531212821
125
CABLE
531212818
126
BOX
531207267
127
SCREW
531207190
128
BATTERY CHARGER
531200904
