Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > LM 2247 C LM 2247 C, 967345501, 2016-11 > MOWER DECK / CUTTING DECK
Back to

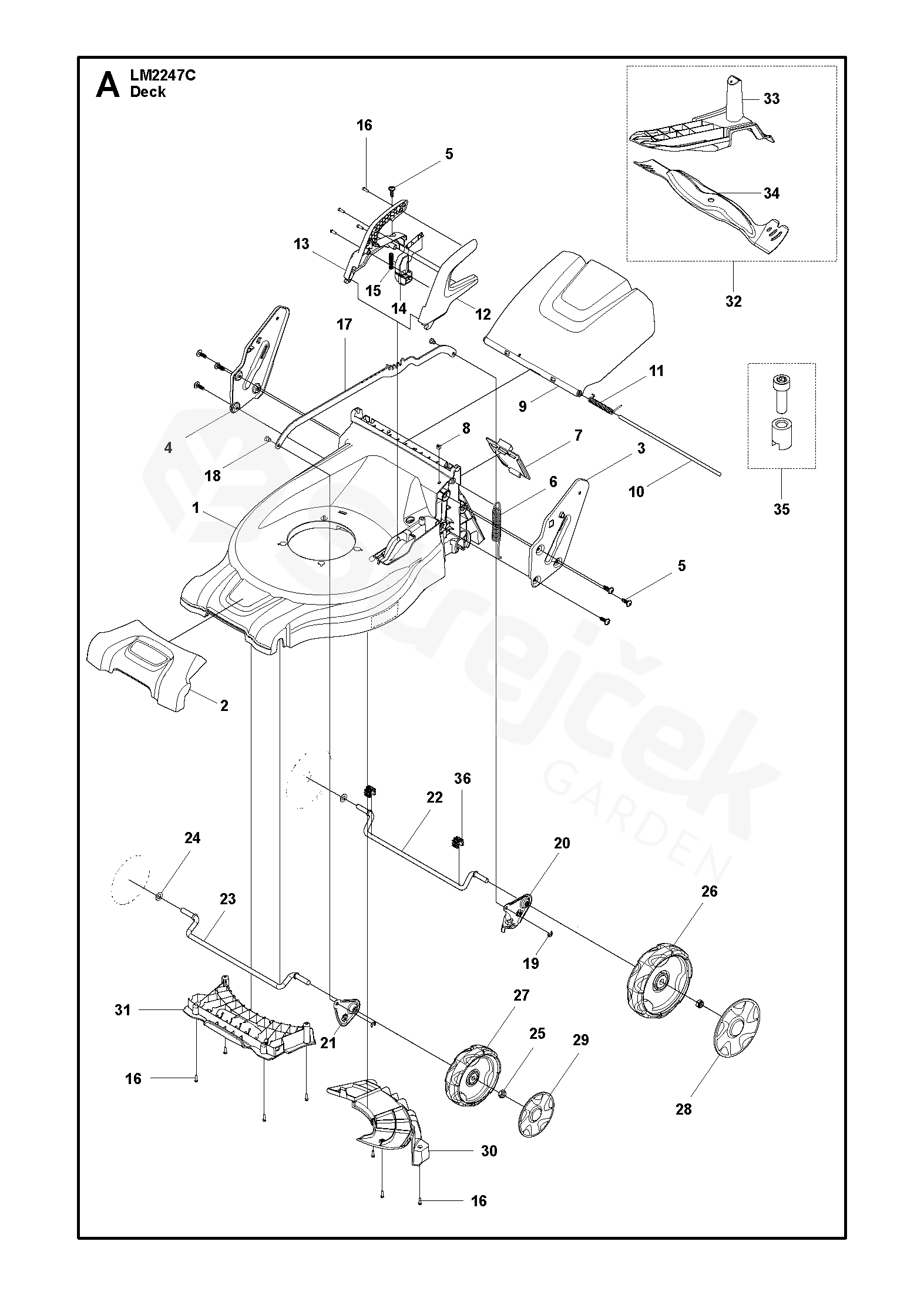

MOWER DECK / CUTTING DECK
LM 2247 C LM 2247 C, 967345501, 2016-11
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LM 2247 C, 967345501, 2016-11
1 CHASSIS 587151004
2 FRONT COVER 587698301
3 HANDLE SUPPORT 587212103
4 HANDLE SUPPORT 587212303
5 SCREW ITXPANT 578175802
6 SPRING 587674401
7 COVER 587095402
8 PÁSEK 579317401
9 HATCH 587101404
10 AXLE 586984601
11 SPRING 587101501
12 COVER HALF 587203702
13 COVER HALF 587203802
14 BUTTON 587697402
15 SPRING 589597601
16 SCREW ITXPANT 502435301
17 ROD 587160801
18 SHAFT 587687001
19 E-CLIP 735311220
20 LINK ARM 587674301
21 LINK ARM 587072401
22 WHEEL AXLE 587072601
23 WHEEL AXLE 587072602
24 PODLOŽKA 577092801
25 NUT 587990901
26 WHEEL ASSY 584611602
27 WHEEL ASSY 587631502
28 HUB CAP 587632801
29 HUB CAP 587632901
30 BELT COVER 587199902
31 SKID PLATE 588202702
32 MULCH KIT 589214801
33 MULCH PLUG 587702701
34 MOWER BLADE 588275701
35 THREAD INSERT 589018701
36 DISTANCE 583055001
