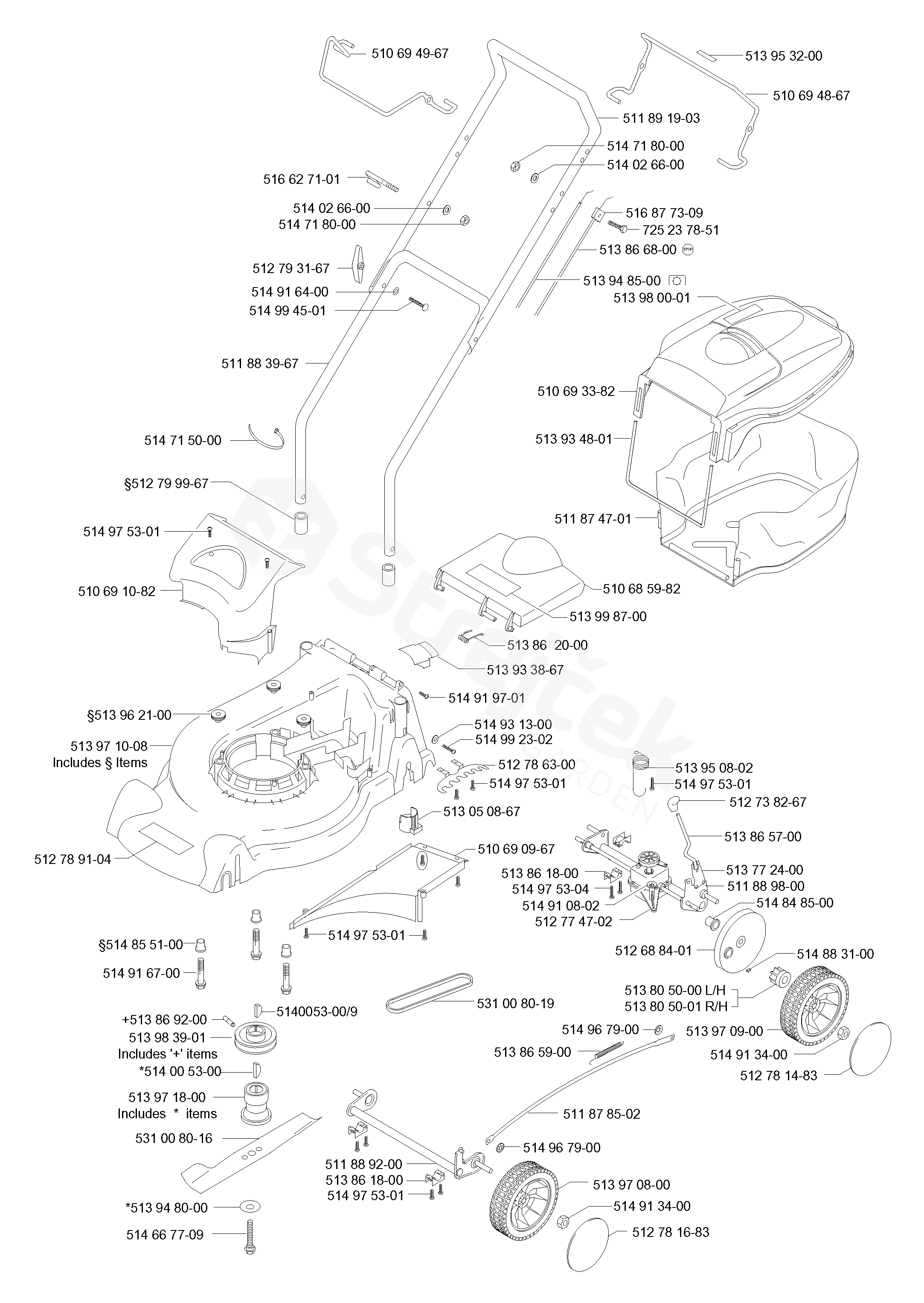

Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > 560 RD 560 RD, 2000-04 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
560 RD 560 RD, 2000-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 560 RD, 2000-04
510685982 COVER 510685982
510690967 PLATE 510690967
510691082 COVER 510691082
510693382 COVER 510693382
510694867 LOOP 510694867
510694967 LOOP 510694967
511874701 BAG 511874701
511878502 TIE STRAP PLAIN 511878502
511883967 HANDLE 511883967
511889200 SHAFT 511889200
511889800 SHAFT 511889800
511891903 HANDLE 511891903
512688401 PLATE 512688401
512738267 KNOB 512738267
512774702 GEARBOX 512774702
512781483 HUB CAP 512781483
512781683 HUB CAP 512781683
512786300 CONTROL 512786300
512789104 DECAL 512789104
512793167 WING NUT 512793167
512799967 SLEEVE 512799967
513050867 SUPPORT 513050867
513772400 BRACKET 513772400
513805000 DRIVE SPROCKET
L/H 		513805000
513805001 DRIVE SPROCKET
R/H 		513805001
513861800 CLAMP 513861800
513862000 SPRING 513862000
513865700 LEVER 513865700
513865900 SPRING 513865900
513866800 WIRE 513866800
513869200 SCREW 513869200
513933867 PROTECTOR 513933867
513934801 RAIL 513934801
513948000 WASHER 513948000
513948500 WIRE 513948500
513950802 SPRING 513950802
513953200 DECAL 513953200
513962100 BUSHING 513962100
513970800 WHEEL 513970800
513970900 WHEEL 513970900
513971008 HOUSING 513971008
513971800 ADAPTER INCLUDES * ITEMS
INCLUDES * ITEMS 		513971800
513980001 DECAL 513980001
513983901 PULLEY INCLUDES '+' ITEMS
INCLUDES '+' ITEMS 		513983901
513998700 DECAL 513998700
514005300 KEY 514005300
514026600 WASHER 514026600
514667709 SCREW 514667709
514715000 STRAP 514715000
514718000 NUT 514718000
514848500 BUSHING 514848500
514855100 SPACER 514855100
514883100 PAWL 514883100
514910802 RETAINING RING 514910802
514913400 NUT 514913400
514916400 WASHER 514916400
514916700 BOLT 514916700
514919701 SCREW 514919701
514931300 WASHER 514931300
514967900 STARLOCK WASHER 514967900
514975301 SCREW 514975301
514975304 SCREW 514975304
514992302 SCREW 514992302
514994501 BOLT 514994501
516627101 HOLDER 516627101
516877309 BRACKET 516877309
531008016 BLADE 531008016
531008019 BELT 531008019
725237851 SCREW EHHM 725237851
514005300/9 514005300/9
