Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > LM 2247 CD LM 2247 CD, 967345601, > MOWER DECK / CUTTING DECK
Back to

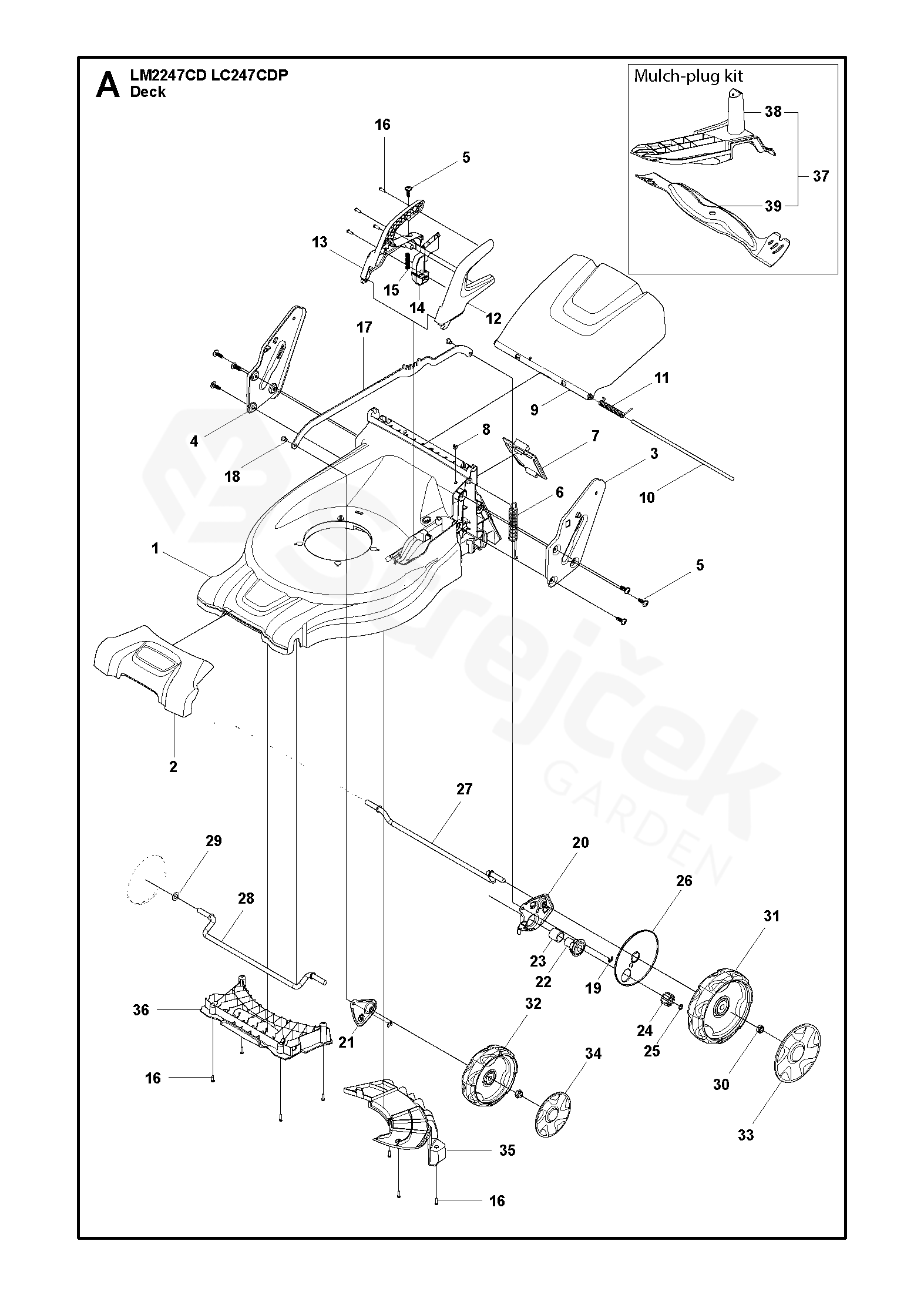

MOWER DECK / CUTTING DECK
LM 2247 CD LM 2247 CD, 967345601,
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LM 2247 CD, 967345601,
1 CHASSIS 587151002
2 FRONT COVER 587698301
3 HANDLE SUPPORT 587212103
4 HANDLE SUPPORT 587212303
5 SCREW ITXPANT 578175802
6 SPRING 587674401
7 COVER 587095401
8 PÁSEK 579317401
9 HATCH 587101402
10 AXLE 586984601
11 SPRING 587101501
12 COVER HALF 587203702
13 COVER HALF 587203802
14 BUTTON 587697402
15 SPRING 587674501
16 SCREW ITXPANT 502435301
17 ROD 587160801
18 SHAFT 587687001
19 E-CLIP 735311220
20 LINK ARM 587072501
21 LINK ARM 587072401
22 BUSHING 501861001
23 TUBE 579682801
24 PASTOREK 544342301
25 CIRCLIP 735311401
26 DUST COVER 587204001
27 WHEEL AXLE 587072601
28 WHEEL AXLE 587072602
29 PODLOŽKA 577092801
30 NUT 587990901
31 WHEEL ASSY 584142202
32 WHEEL ASSY 587631502
33 HUB CAP 587632801
34 HUB CAP 587632901
35 BELT COVER 587199901
36 SKID PLATE 588202702
37 MULCH KIT 589214801
38 MULCH PLUG 587702701
39 MOWER BLADE 588275701
