Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > 580 RD 580 RD, 2002-04 > CHASSIS / FRAME
Back to

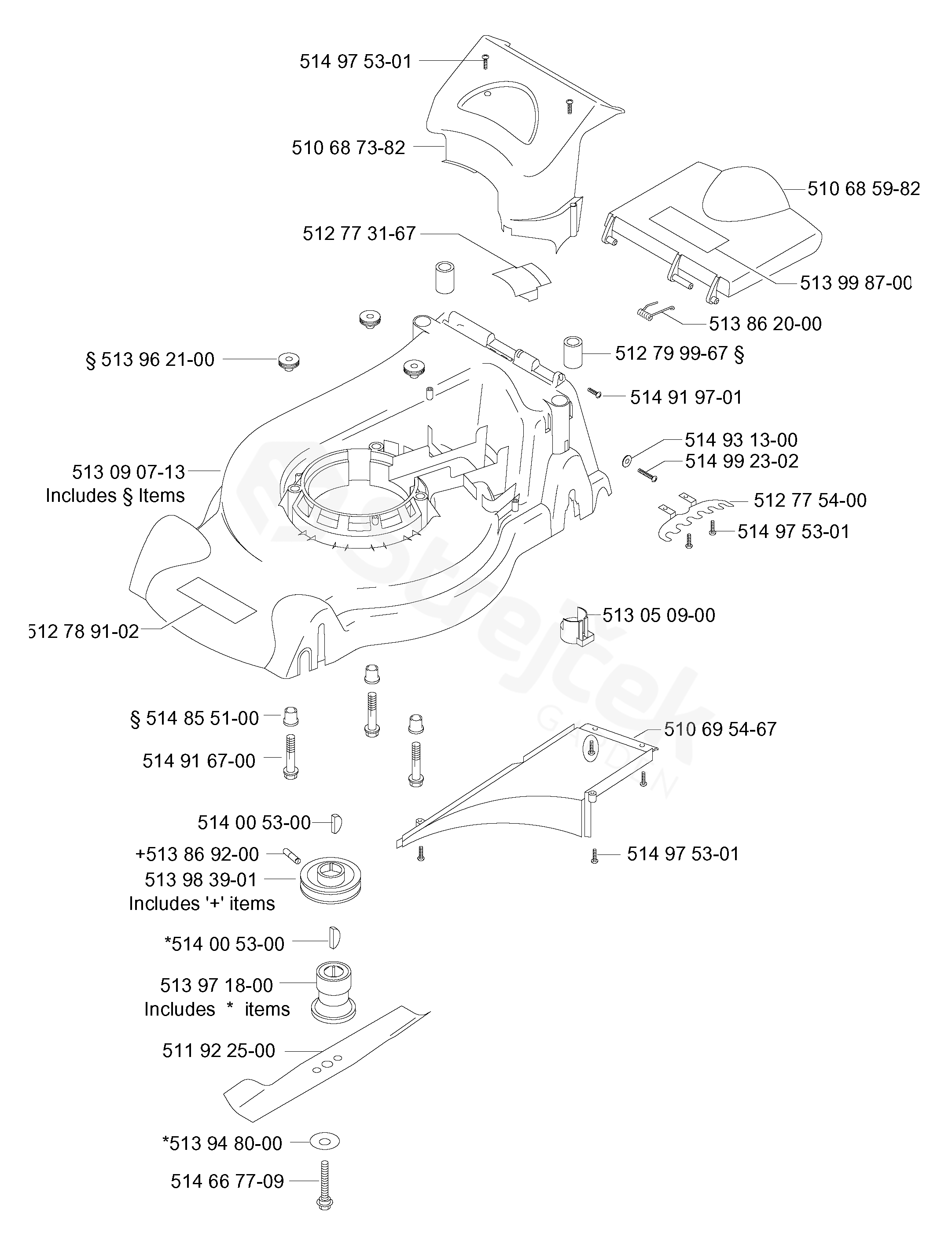

CHASSIS / FRAME
580 RD 580 RD, 2002-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 580 RD, 2002-04
510685982 COVER 510685982
510687382 COVER 510687382
510695467 PLATE 510695467
511922500 MOWER BLADE 511922500
512773167 PLATE 512773167
512775400 ADJUSTER 512775400
512789102 DECAL 512789102
512799967 SLEEVE 512799967
513050900 SUPPORT 513050900
513090713 HOUSING INCLUDES ITEMS
INCLUDES ITEMS 		513090713
513862000 SPRING 513862000
513869200 SCREW 513869200
513948000 WASHER 513948000
513962100 BUSHING 513962100
513971800 ADAPTER INCLUDES * ITEMS
INCLUDES * ITEMS 		513971800
513983901 PULLEY INCLUDES '+' ITEMS
INCLUDES '+' ITEMS 		513983901
513998700 DECAL 513998700
514005300 KEY 514005300
514667709 SCREW 514667709
514855100 SPACER 514855100
514916700 BOLT 514916700
514919701 SCREW 514919701
514931300 WASHER 514931300
514975301 SCREW 514975301
514992302 SCREW 514992302
