Spare parts > Husqvarna > BRUSHCUTTERS/CLEARING SAWS > 253 RJ 253 RJ, 2011-08 > CYLINDER PISTON
Back to

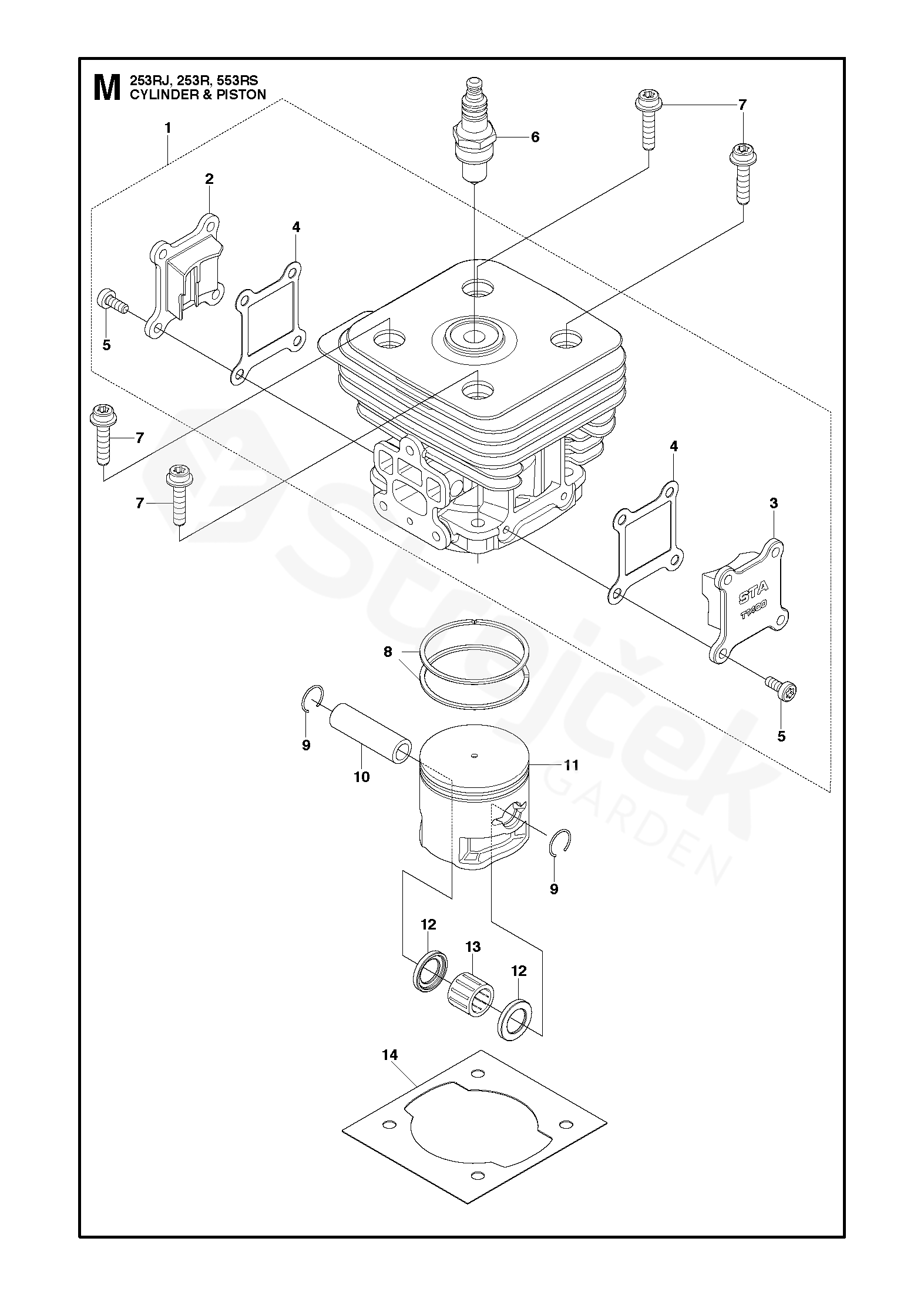

CYLINDER PISTON
253 RJ 253 RJ, 2011-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 253 RJ, 2011-08
1 CYLINDER 582898301
2 COVER 575346801
3 COVER 575346701
4 GASKET 521634601
5 SCREW 504119201
6 SPARK PLUG 521233401
7 BOLT 506745201
8 RING 512311201
9 SNAP RING 502849801
10 PIN 510916901
11 PISTON 528774001
12 WASHER 513622401
13 BEARING 576696301
14 GASKET 521634301
