Spare parts > Jonsered > SNOW BLOWERS/THROWERS > ST 2361 EP ST 2361 EP, 96192007501, 2014-08 > MOTOR
Back to

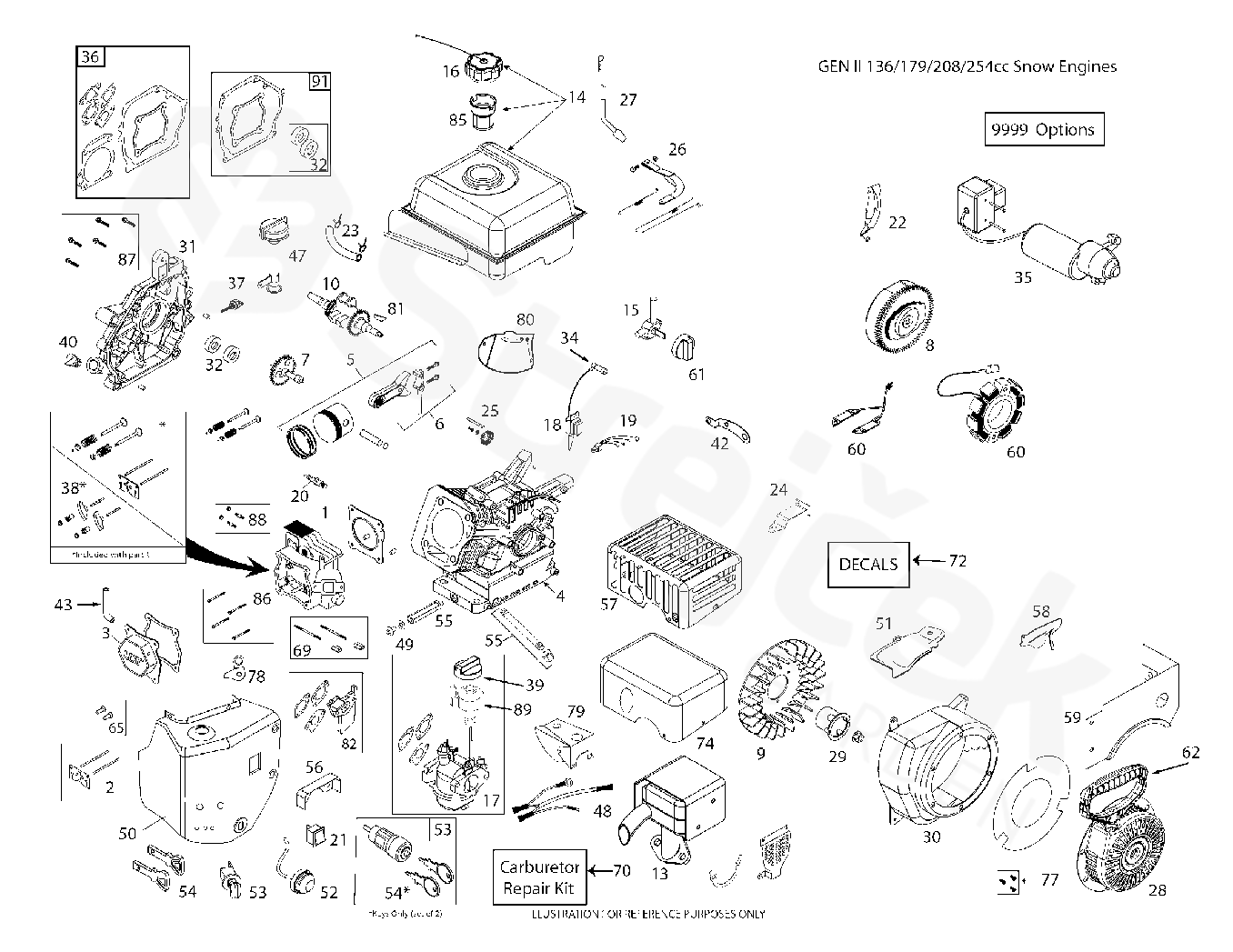

MOTOR
ST 2361 EP ST 2361 EP, 96192007501, 2014-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 2361 EP, 96192007501, 2014-08
1 CYLINDER HEAD
with gasket 		532420578
2 PUSH ROD SERVICE KIT 532420579
3 VALVE COVER SERVICE KIT 532420580
4 CYLINDER 587147501
5 PÍST KOMPL. 532420582
6 CONNECTING ROD 532420583
7 CAMSHAFT 532420584
8 FLYWHEEL 532443892
9 FLYWHEEL 532420586
10 CRANKSHAFT 532446642
13 MUFFLER ASSY 587147701
14 FUEL TANK ASSY 532436564
15 FUEL 532429234
16 FUEL TANK 532424942
17 CARBURETTOR 587147901
18 IGNITION COIL 532443894
19 TBD CONTACT HONDA 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE 		TBD
20 SPARK PLUG 532424939
21 ON/OFF SWITCH 532424957
22 SHLD ELEC START FLYWHEEL 532424975
23 HOSE KIT 532432144
24 SPEED CONTROL BRACKET 532429259
25 GEAR 532429646
26 CARBURETTOR 581768701
27 GOVERNOR 532420602
28 RECOIL 532436967
29 CUP 532436968
30 BLOWER HOUSING ASSY 581192001
31 COVER 581007301
32 SEAL KIT 532429599
34 BOOT 532436966
35 STARTER 532436466
36 GASKET KIT 532429601
37 DIPSTICK 532420961
38 ROCKER ARM KIT 532429691
39 CHOKE 532429224
40 NON REMOVABLE PLUG 532429598
42 TBD CONTACT HONDA 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE 		TBD
43 BREATHER 580353401
47 TUBE ASSY 581007201
48 WIRE HARNESS 532429262
49 OIL PLUG 532435495
50 BOX 532436561
51 SHIELD 532437119
52 FUEL PRIMER BULB ASSY W/HOSE 532424949
53 KEY START ASSY 532424954
54 KIT 532443059
55 OIL PIPE 587154401
56 VAPOR SHIELD 532429260
57 KRYT 532436672
58 GOVERNOR 532424960
59 SKIRT 532436562
60 SOLENOID 532443893
61 FUEL KNOB-SNOW 532432752
62 RUKOJEŤ STARTOVÁNÍ 532443899
65 TAPPET 581372801
69 CARB STUDS AND COUPLINGS KIT 532424951
70 CARBURETTOR 580353601
72 TBD CONTACT HONDA 1-800-426-7701
(532 43 56-47) LABEL KIT 		TBD
74 HEAT SHIELD 587148201
77 BOLT KIT 532432688
78 BRACKET 581459301
79 CARBURETTOR COVER 585773701
80 TBD CONTACT HONDA 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE 		TBD
81 WOODRUFF KEY 585297201
82 ROZPĚRKA 585020503
85 ČISTIČ 586325601
86 BOLT 586327301
87 BOLT 586326901
88 ŠROUB 586326801
89 KNOB 587124801
91 COVER 587525701
9999 JET 586326201
