Jonsered
>
TRACTORS/RIDE MOWERS
>
LT 2217 A LT 2217 A, 96041004300, 2007-04
>

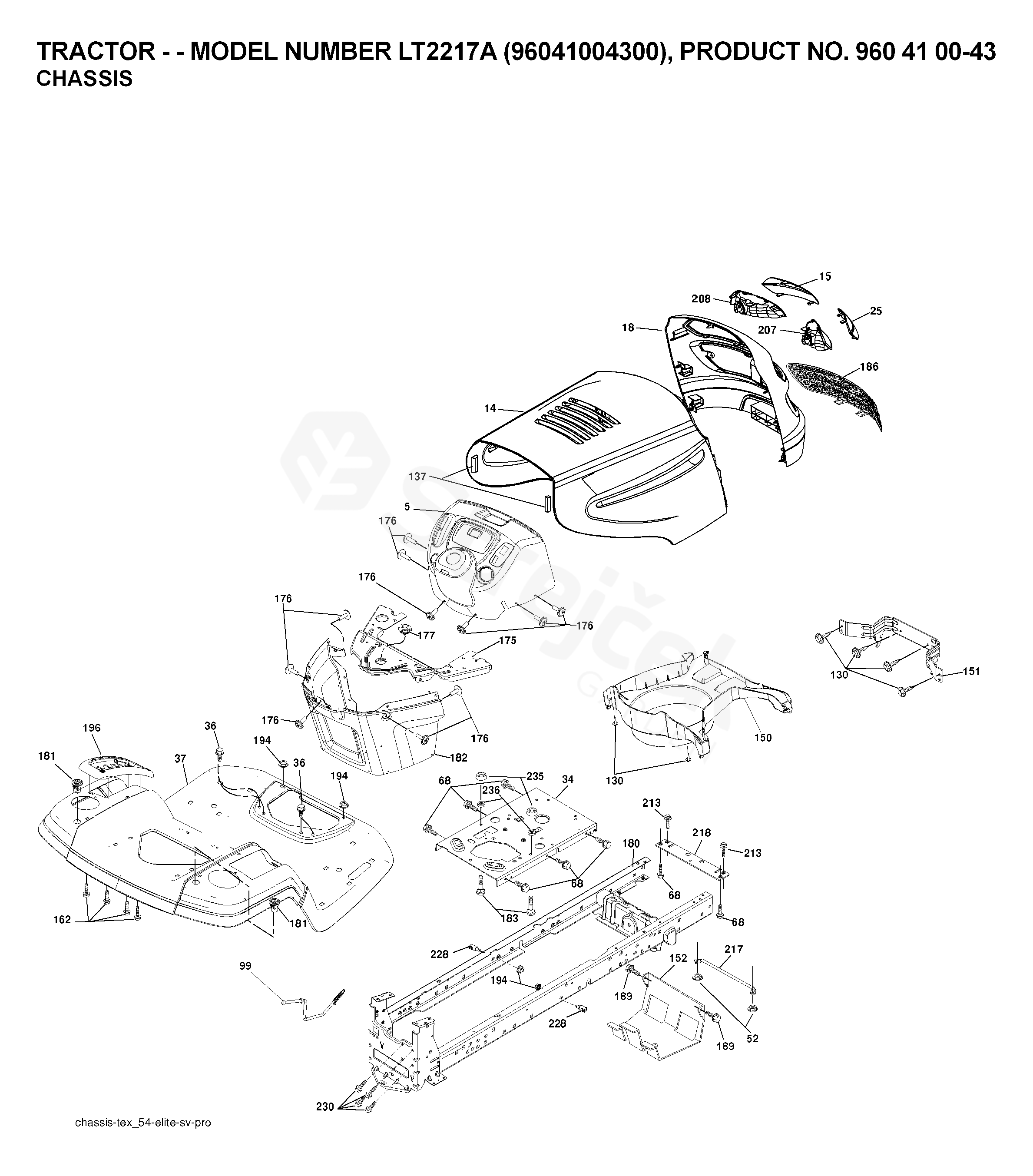

CHASSIS & ENCLOSURES
Back to
LT 2217 A
LT 2217 A, 96041004300, 2007-04
CHASSIS & ENCLOSURES
LT 2217 A
LT 2217 A, 96041004300, 2007-04
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LT 2217 A, 96041004300, 2007-04
5
PANEL
532411279
14
HOOD
532194757
15
LENS GRILLE LH
532189754
18
HOOD
532192915
25
LENS GRILLE RH
532189755
34
PLATE
532196125
36
SCREW
817060512
37
FENDER
532411283
52
MATICE
873680500
68
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
99
ROD
532403376
130
SCREW
532191611
137
BUMPER
532184921
150
DUCT
532184322
151
BRACKET
532407807
152
SHIELD
532199535
162
SCREW
532137729
175
PLATE
532193243
176
SCREW
532400776
177
BUSHING
532195228
180
CHASSIS
532195457
181
BUSHING
532404796
182
PANEL
532193057
183
BOLT
874780520
186
INSERT GRILLE
532189753
189
SCREW
817000512
194
MATICE
873900500
196
PAD
532409728
207
SUPPORT DE PHARE DROIT
532183833
208
SUPPORT DE PHARE GAUCHE
532183832
213
BOLT
874760512
217
SHAFT
532156524
218
PLATE
532196395
228
ŠROUB
532195161
230
BOLT
532170165
235
1/4-20X3/4 CARR BLT
532406129
236
MATICE
873930500
