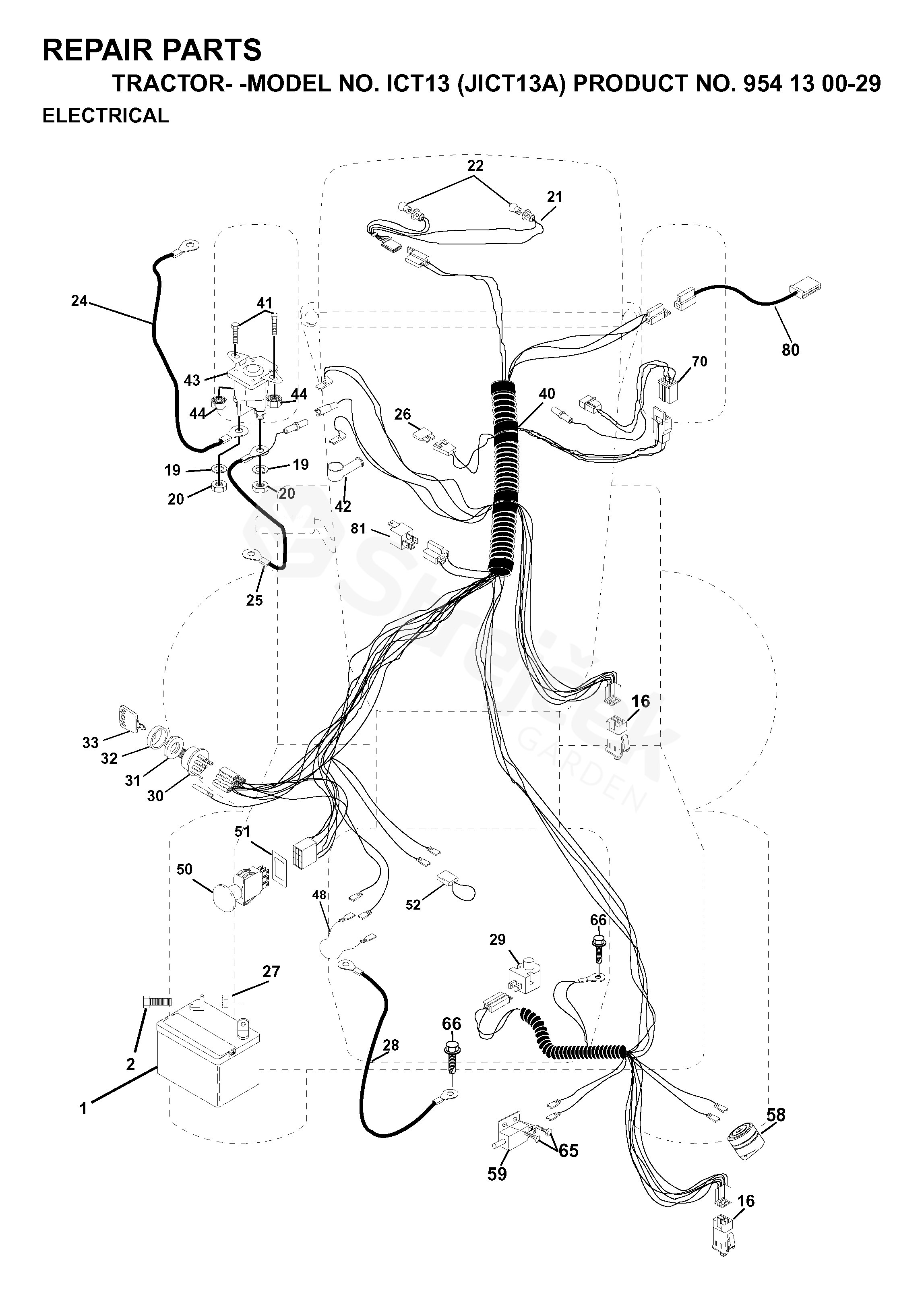

Spare parts > Jonsered > TRACTORS/RIDE MOWERS > ICT 13 ICT 13, JICT13A, 9541300-29, 1999-03 > ELECTRICAL
Back to
ELECTRICAL
ICT 13 ICT 13, JICT13A, 9541300-29, 1999-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ICT 13, JICT13A, 9541300-29, 1999-03
1 BATTERY 532144925
2 BOLT 874760412
16 SWITCH 532153664
19 WASHER 810090400
20 NUT 873350400
21 CABLE ASSY 532166182
22 BULB 532004152
24 CABLE 532124780
25 CABLE 532165987
26 FUSE 532166180
27 MATICE 873510400
28 CABLE 532127725
29 SWITCH 532160784
30 SWITCH 532140301
31 NUT 532124211
32 PROTECTOR 532141226
33 KEY 532122147
40 CABLE ASSY 532166158
41 BOLT 871110408
42 COVER 532131563
43 SOLENOID 532145673
44 NUT 873640400
48 ADAPTER 532140844
50 BRAKER 532154963
51 FRAME 532140405
52 PROTECTOR 532141940
58 BUZZER 532165943
59 SWITCH 532166299
65 SCREW 817211008
66 SCREW 817490608
70 CABLE ASSY 532166668
80 CABLE ASSY 532146685
81 RELAY 532109748
