LT 2218 A LT 2218 A, 96041003500, 960410035, 2007-03
>
CHASSIS & ENCLOSURES
Back to
LT 2218 A
LT 2218 A, 96041003500, 960410035, 2007-03

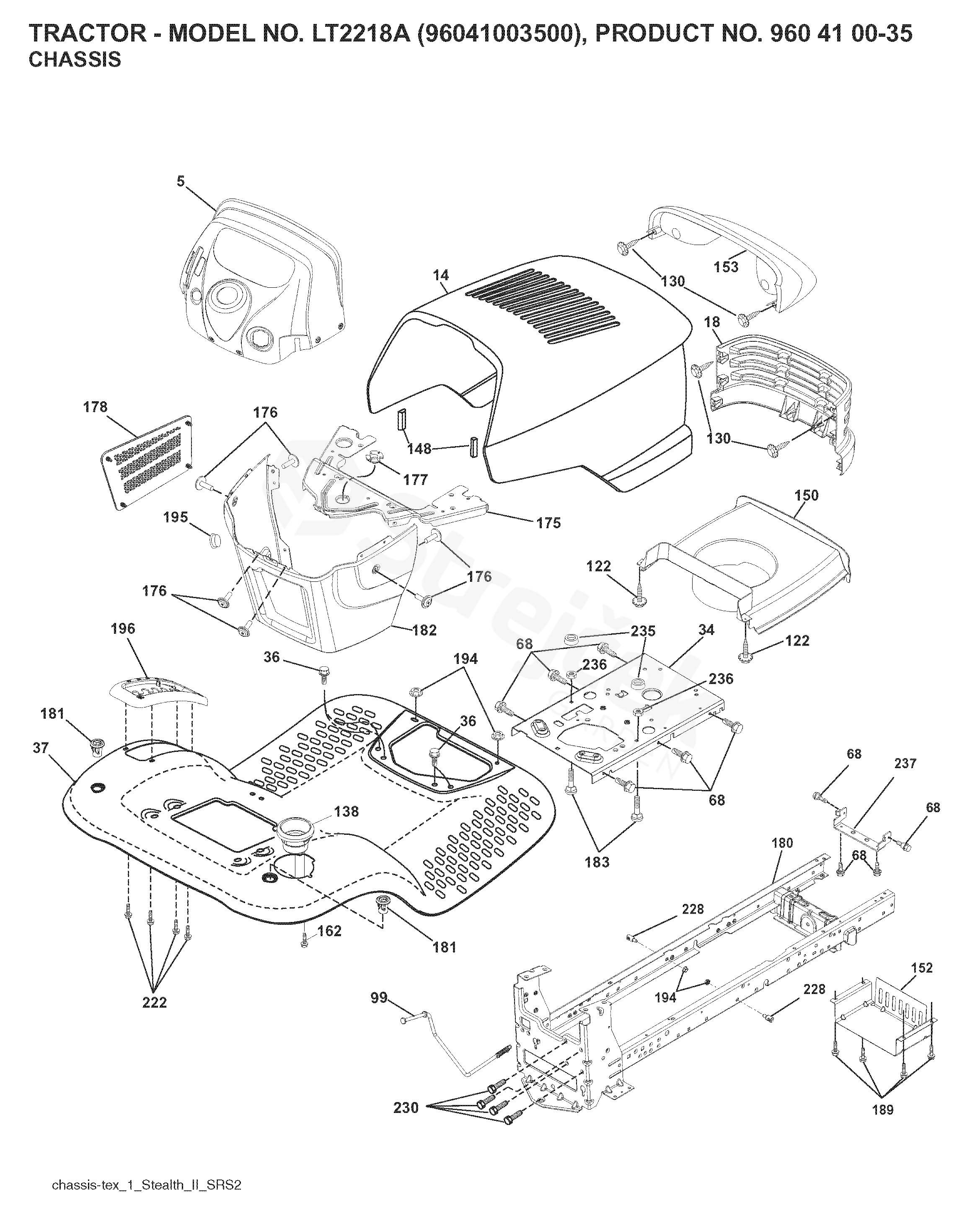

CHASSIS & ENCLOSURES
LT 2218 A
LT 2218 A, 96041003500, 960410035, 2007-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LT 2218 A, 96041003500, 960410035, 2007-03
5
PANEL
532411410
14
HOOD
532181351
18
GRILE
532181352
34
PLATE
532196125
36
SCREW
817060512
37
FENDER
532411418
68
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
99
ROD
532405092
130
SCREW
532191611
138
CONSOLE
532409730
148
ABSORBER
532164655
150
DUCT
532175351
152
SHIELD
532199535
153
LENS
532179761
162
SCREW
532142432
175
PLATE
532193236
176
SCREW
532400776
177
BUSHING
532195227
178
HOLDER
532195651
180
CHASSIS
532195457
181
BUSHING
532404796
182
PANEL
532192551
183
BOLT
874780520
189
SCREW
817000512
194
MATICE
873900500
195
TROU*RPL.PAR 532401556428
532404137
196
PAD
532409728
222
SCREW
532137729
228
ŠROUB
532195161
230
BOLT
532170165
235
1/4-20X3/4 CARR BLT
532406129
236
MATICE
873930500
237
BRACKET
532196394
PLUG
532411411
