Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LT 2114 A LT2114A, 96011030202, 2013-05 > MOWER DECK / CUTTING DECK
Back to

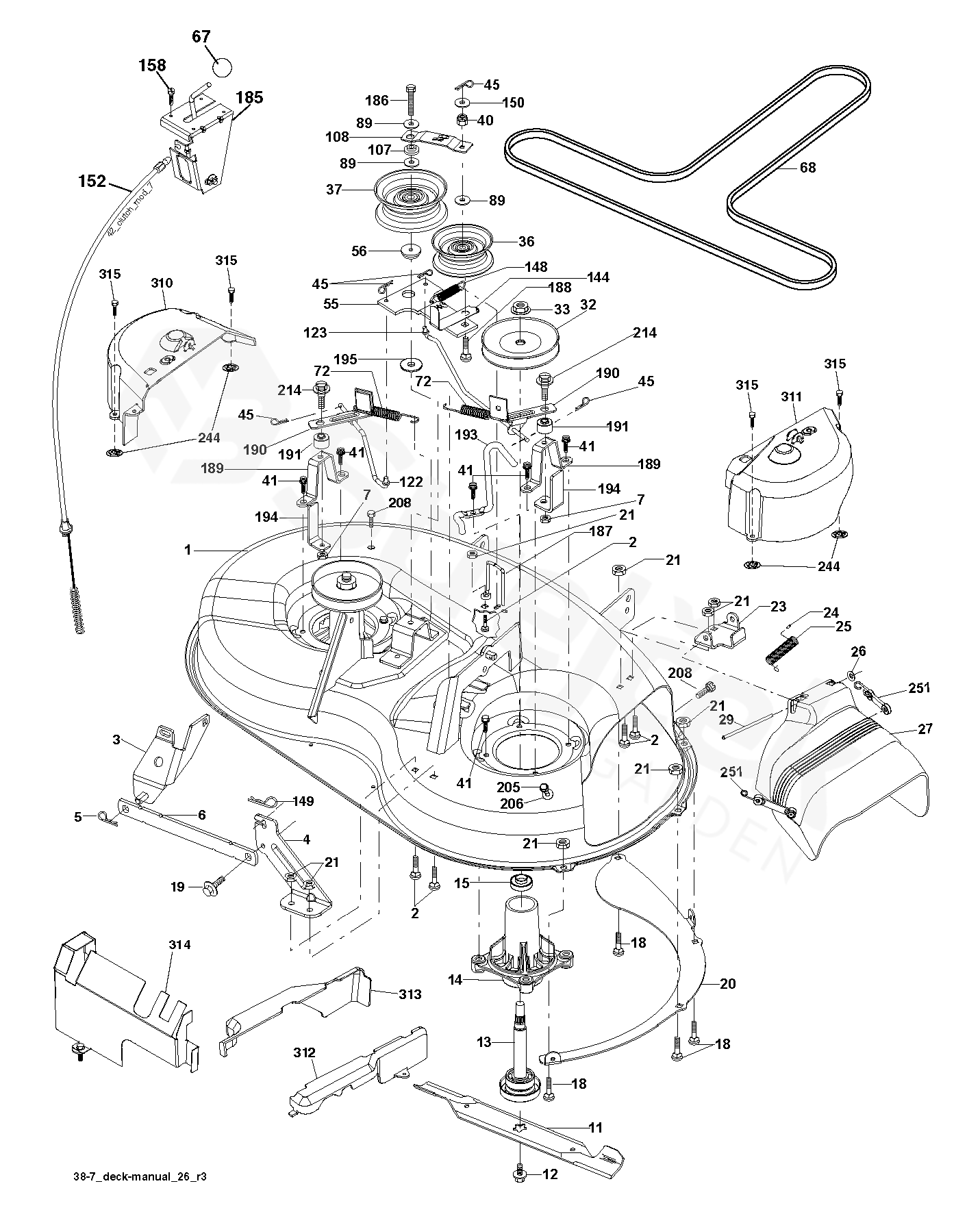

MOWER DECK / CUTTING DECK
LT 2114 A LT2114A, 96011030202, 2013-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT2114A, 96011030202, 2013-05
1 DECK SHELL 532192556
2 BOLT 872140506
3 BRACKE 532138017
4 SUPPORT CARTER ARRIERE 532192568
5 RETAINING RING 532124670
6 LEVER 532178024
7 BRACKET 873800500
11 RIDE ON BLADE 532193957
12 SCREW 584309301
13 HRÍDEL 587256501
14 BEARING HOUSING 532187281
15 BEARING 585323901
18 BOLT 872140505
19 SPEC. BOLT 532132827
20 BAFFLE 532400095
21 MATICE 873680500
23 HINGE 532192557
24 HUB CAP 532105304
25 TORSION SPRING 532197026
26 MATICE 532110452
27 DEFLECTOR 532401618
29 HRÍDEL 532131491
32 PULLEY 532153532
33 MATICE 532400234
36 PULLEY 532131494
37 PULLEY 532193198
40 MATICE 873680600
41 BOLT 584953901
45 RETAINING RING 532124788
55 LEVER 532133840
56 SPACER 532165723
67 KNOB 532106932
68 BELT 532193214
72 RESSORT RETOUR FREIN DE LAME 532193216
89 WASHER 819131311
107 SPACER 532133502
108 LEVER 532133503
122 ROD 532410189
123 ROD 532410190
144 BELT GUIDE 532193414
148 SPRING 532169022
149 SPRING 532165898
150 WASHER 819091210
152 CABLE 532193235
158 SCREW 817720408
185 HEAD ASM. CABLE CLUTCH 532188234
186 SCREW 817490644
187 BELT GUIDE 532193412
188 BOLT 532165891
189 SUPPORT BRAS DE FREIN 532192559
190 ARM 532192560
191 SPACER 532192561
193 BELT GUIDE 532193413
194 GARDE DE FREIN DE LAME 532194105
195 PODLOŽKA 819133210
205 SCREW 817490416
206 PODLOŽKA 819091416
208 SCREW 817670608
214 BOLT 532193782
244 MATICE 532423062
251 ELASTIC STRAP 532436087
310 COVER 532432356
311 COVER 532432357
312 SHIELD 532432359
313 SHIELD 532432358
314 SHIELD 532432355
315 SCREW 817600406
CUTTING DECK 532431841
