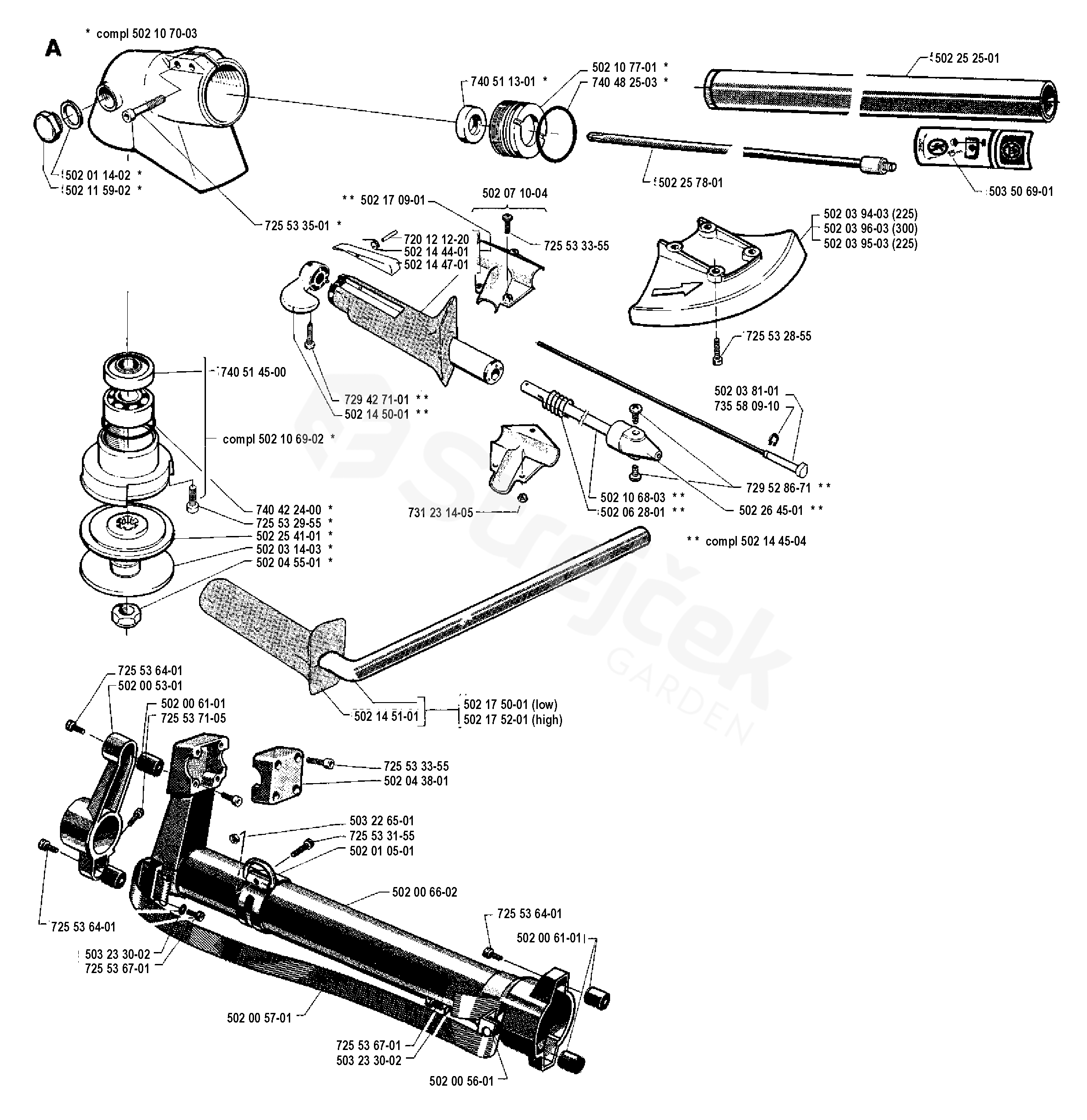

Spare parts - Partlist - 265 RX 265 RX, 1992-05 - SHAFT & HANDLE

Everything for your machines

265 RX 265 RX, 1992-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 265 RX, 1992-05

502005301	RETAINER	502005301
502005601	BELT TENSIONER	502005601
502005701	SADDLE GIRTH	502005701
502006101	DAMPER	502006101
502006602	SUSPENSION	502006602
502010501	EYELET	502010501
502011402	GASKET	502011402
502031403	SUPPORT FLANGE	502031403
502038101	SHAFT FLEXIBLE	502038101
502039403	SAW BLADE GUARD 225 225	502039403
502039503	SAW BLADE GUARD 10 225	502039503
502039603	BLADE GUARD 12 300	502039603
502043801	HANDLEBAR BRACKET	502043801
502045501	NUT	502045501
502062801	RECOIL SPRING	502062801
502071004	RETAINER	502071004
502106803	TUBULAR SHAFT	502106803
502106902	GEAR CASE COVER	502106902
502107003	GEAR HOUSING ASSY	502107003
502107701	STOP SLEEVE	502107701
502115902	PLUG	502115902
502144401	SPRING	502144401
502144504	HANDLEBAR RIGHT	502144504
502144701	THROTTLE LOCKOUT	502144701
502145001	THROTTLE TRIGGER	502145001
502145101	HANDLE	502145101
502170901	HANDLEBAR RIGHT	502170901
502175001	HANDLEBAR LEFT LOW	502175001
502175201	HANDLEBAR HIGH	502175201
502252501	TUBE DRIVESHAFT ASSY	502252501
502254101	DRIVER	502254101
502257801	DRIVE SHAFT ASSY	502257801
502264501	SPRING GUIDE	502264501
503226501	ČTYŘHRANNÁ MATICE	503226501
503233002	WASHER	503233002
503506901	DECAL	503506901
720121220	PARALLEL PIN	720121220
725532855	SCREW	725532855
725532955	SCREW IHSCM	725532955
725533155	SCREW IHSCM	725533155
725533355	SCREW IHSCM	725533355
725533501	SCREW IHSCM	725533501
725536401	SCREW	725536401
725536701	SCREW	725536701
725537105	SCREW	725537105
729427101		729427101
729528671	SCREW CCRPANT	729528671
731231405	HEXAGON NUT	731231405
735580910	LOCKWASHER	735580910
740422400	O-RING	740422400
740482503	O-RING	740482503
740511301	SEALING RING	740511301
740514500	SEALING RING	740514500
