Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LT 2115 LT 2115, 96011012200, 960110122, 2006-01 > SEAT
Back to

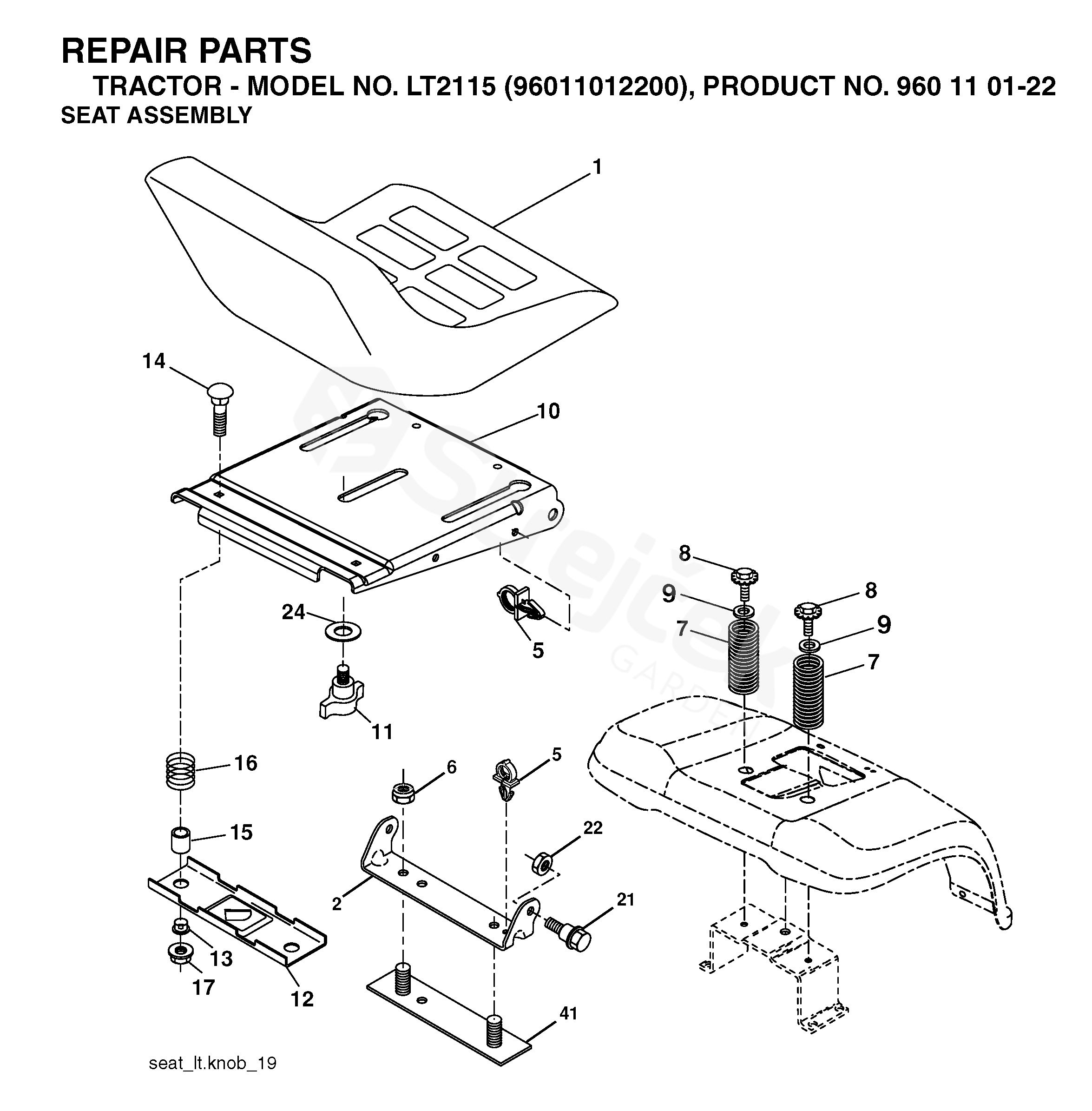

SEAT
LT 2115 LT 2115, 96011012200, 960110122, 2006-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT 2115, 96011012200, 960110122, 2006-01
1 SEAT 532188704
2 BRACKET 532180166
5 CLIP 532145006
6 NUT 873800600
7 SPRING 532124181
8 SCREW 817000616
9 WASHER 819131614
10 SUPPORT DE SIEGE 532195696
11 WING NUT 532166369
12 BRACKET 532174648
13 BUSHING 532121248
14 BOLT 872050412
15 SPACER 532134300
16 SPRING 532121250
17 LOCKNUT 532123976
21 BOLT 532171852
22 BRACKET 873800500
24 WASHER 819171912
41 PÁSEK 532140675
