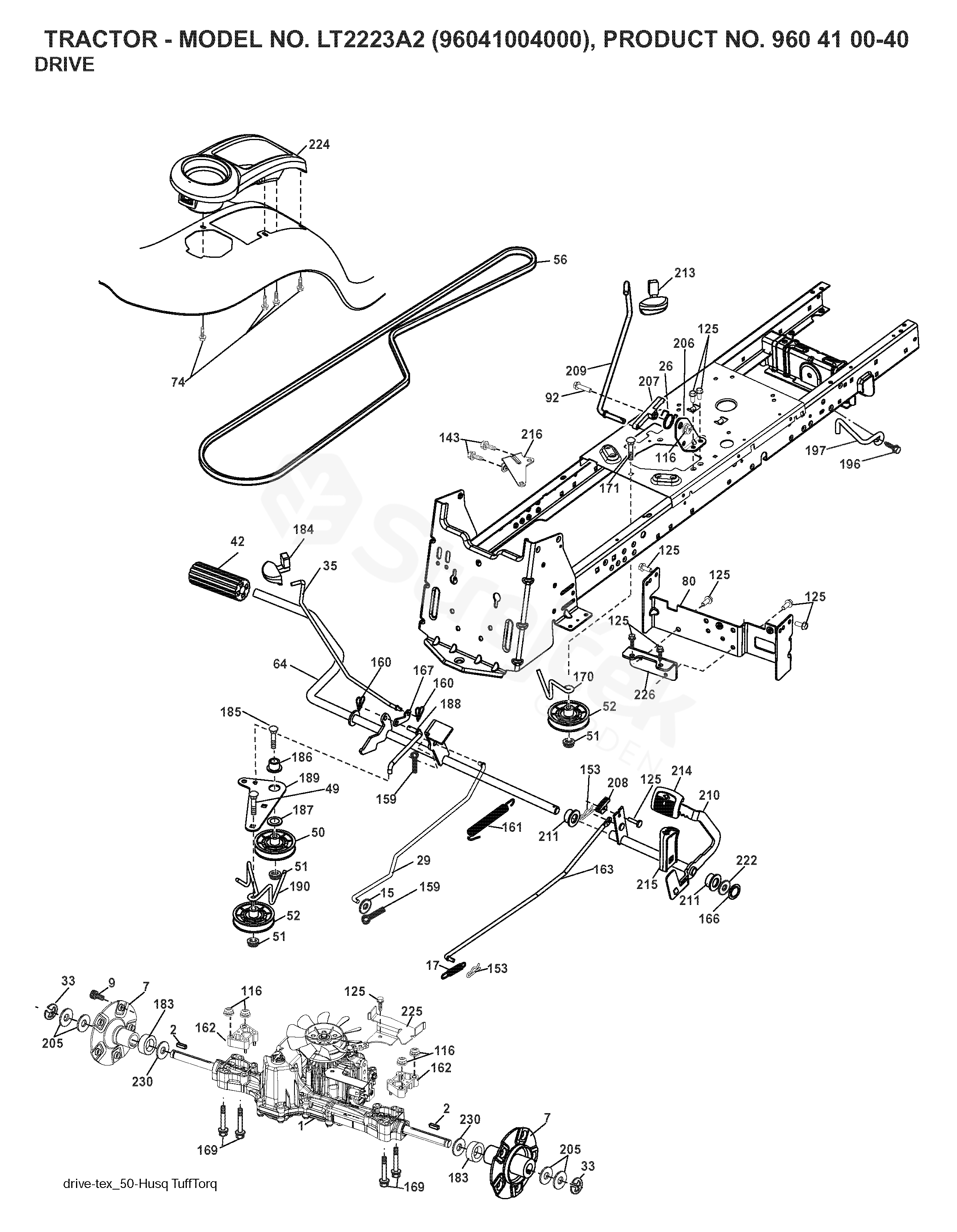

LT 2223 A2 LT 2223 A2, 96041004000, 960410040, 2007-07

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LT 2223 A2, 96041004000, 960410040, 2007-07

1	TRANSAXLE.K46BN.PEDAL CONTROL	532414006
2	KEY	532186211
7	HUB	532199844
9	BOLT	532140080
15	PODLOŽKA	819131316
17	SRPING.BRAKE.K46.GREENSUBS/2	532413678
26	SPRING	532199679
29	ROD	532403806
33	RETAINER RING	812000001
35	ROD	532197275
42	PEDAL RUBBER	532124872
49	BOLT	872110614
50	PULLEY	532194327
51	MATICE	873900600
52	PULLEY	532194326
56	BELT	532130969
64	HRÍDEL	532197865
74	SCREW	532142432
80	STRAP	532404483
92	BOLT	874760520
116	MATICE	873900500
125	SCREW	817000512
143	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
153	RETAINING RING	532124788
159	SPLIT PIN	876020412
160	KOLÍČEK	532169484
161	SPRING	532195403
162	SPACER	532195785
163	ROD	532401034
166	NUT	532197290
167	LATCH	532405257
169	BOLT	874490560
170	HLÍDAČ	532194322
171	BOLT	872110616
183	SPACER	532400424
184	CONTROL	532411716
185	BOLT	872110620
186	ROZPĚRKA	532194321
187	PODLOŽKA	819133210
188	LINK	532194323
189	DESKA	532194317
190	BELT GUIDE	532194318
196	SCREW	817000616
197	BRACKET	532199769
205	PODLOŽKA	532121748
206	BRACKET	532197867
207	LATCH	532197868
208	OPĚRNÁ MISKA	532197869
209	ROD	532199466
210	ARM	532197860
211	BEARING	532120183
213	KNOB	532412324
214	PEDAL	532401722
215	PEDAL	532401723
216	BRACKET	532196131
222	PODLOŽKA	879212010
224	CONSOLE	532412298
225	BELT GUIDE	532403319
226	BRACKET	532400831
230	PODLOŽKA	532188967
