Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LT 2115 CMA LT 2115 CMA, 96061001002, 954130224, 2005-05 > SEAT
Back to

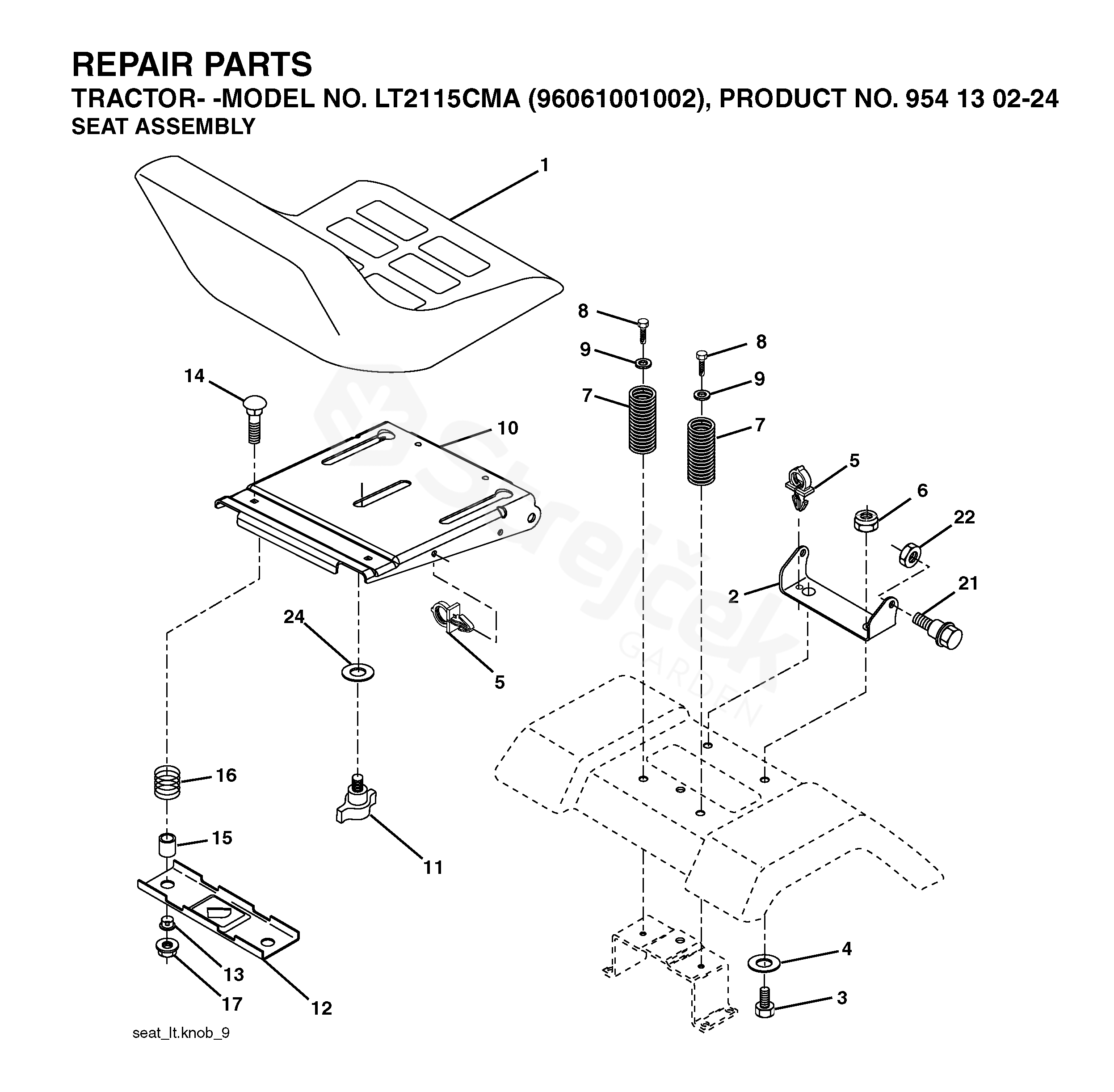

SEAT
LT 2115 CMA LT 2115 CMA, 96061001002, 954130224, 2005-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT 2115 CMA, 96061001002, 954130224, 2005-05
1 SEAT 532188705
2 BRACKET 532180166
3 SCREW 871110616
4 WASHER 819131610
5 CLIP 532145006
6 NUT 873800600
7 SPRING 532124181
8 SCREW 817000616
9 WASHER 819131614
10 PLATE 532180186
11 WING NUT 532166369
12 BRACKET 532121246
13 BUSHING 532121248
14 BOLT 872050412
15 SPACER 532134300
16 SPRING 532121250
17 LOCKNUT 532123976
21 BOLT 532171852
22 BRACKET 873800500
24 WASHER 819171912
