Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LT 2313 LT 2313, 96041037301, 2016-03 > ENGINE
Back to

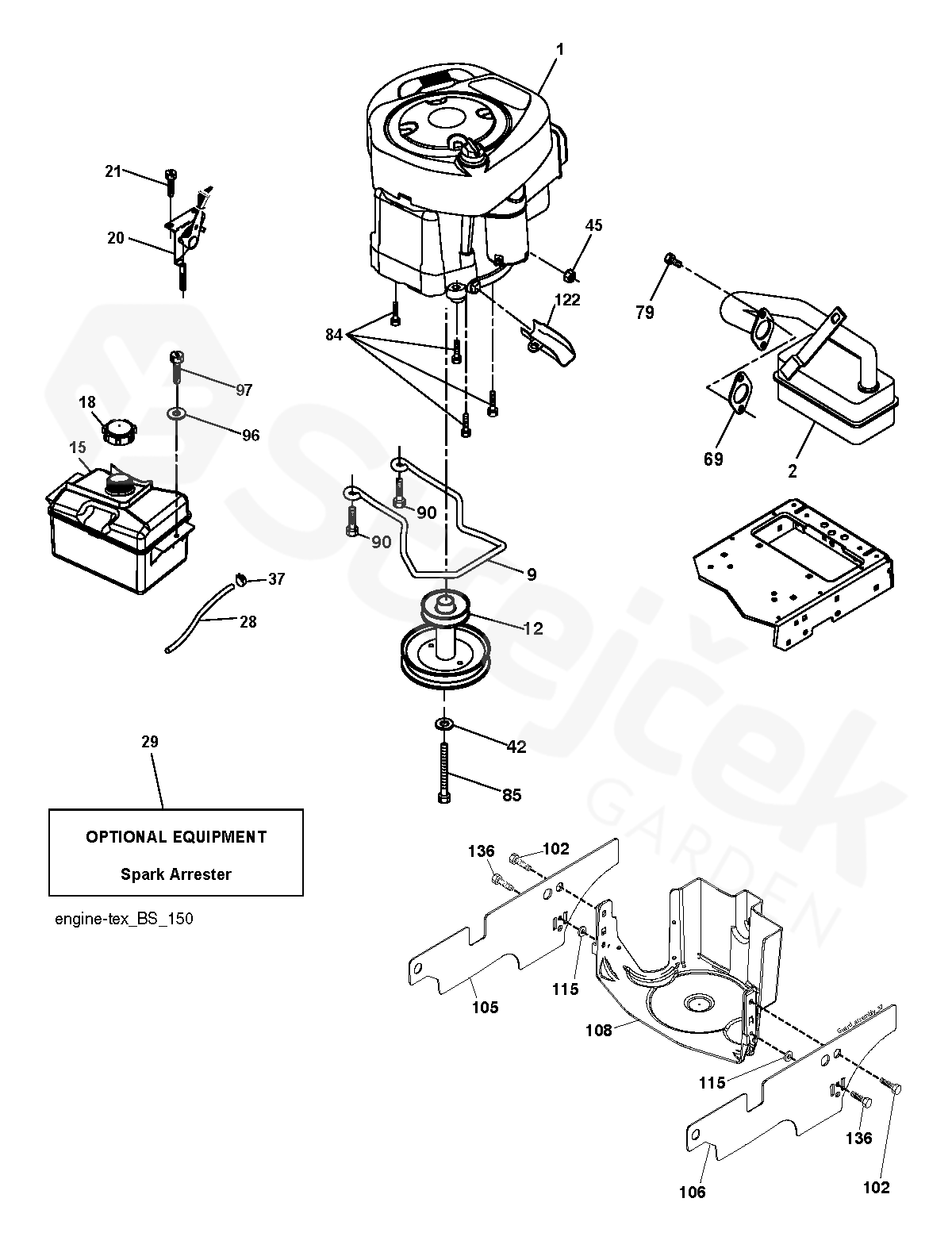

ENGINE
LT 2313 LT 2313, 96041037301, 2016-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT 2313, 96041037301, 2016-03
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE B&S MODEL NO. 21R707-0018-B1 (585688201) 		000000000
2 MUFFLER 532179758
9 KEEPER 582540302
12 PULLEY 586729001
15 TANK 581289901
18 HUB CAP 532430220
20 CONTROL 532183897
21 SCREW 532416358
28 HADICE 532137040
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 WASHER 810040700
45 MATICE 873510400
69 GASKET 532165291
79 SCREW 532192334
84 SCREW 817060620
85 BOLT 532173937
90 SCREW 817000616
96 PODLOŽKA 819091416
97 SCREW 817670412
102 SCREW 817000512
105 SAFETY GUARD 501267202
106 SAFETY GUARD 501268202
108 COVER 587179501
115 RETAINER 532431761
122 EXTENSION PIPE 532421922
136 SCREW 532421756
