Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LR 13 LR 13, J8F1336TC, 954130021, 2000-02 > ENGINE
Back to

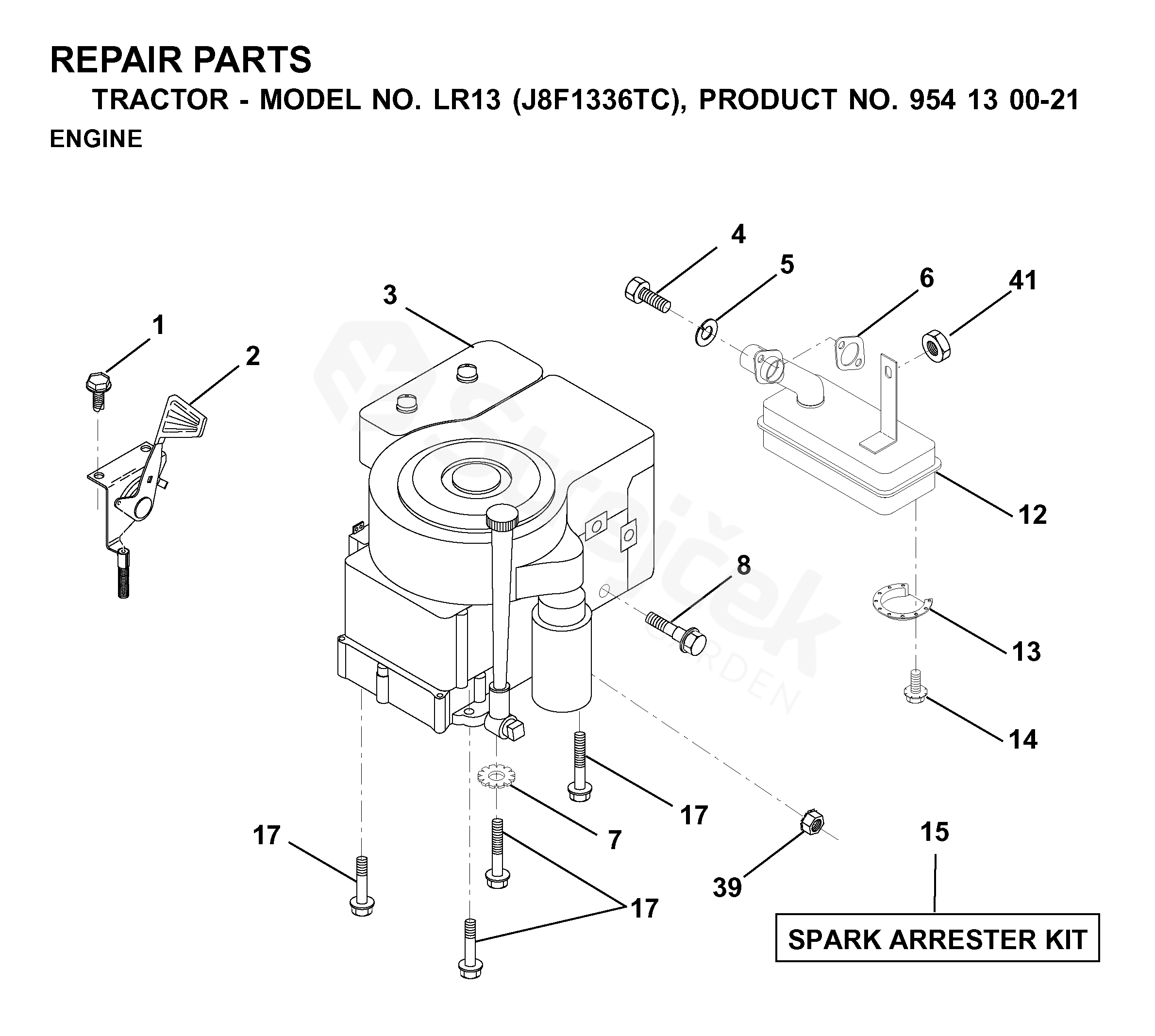

ENGINE
LR 13 LR 13, J8F1336TC, 954130021, 2000-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LR 13, J8F1336TC, 954130021, 2000-02
1 ROD Hinge 817720410
2 THROTTLE TRIGGER 532132752
4 SCREW 532123528
5 PODLOŽKA 810040500
6 GASKET 532165291
7 PODLOŽKA 811050600
8 BOLT 532081328
12 MUFFLER 532156448
13 DEFLECTOR 532101326
14 SCREW 817030808
15 SPARK ARRESTER KIT 532137180
17 SCREW 817490624
39 NUT 532128861
41 MATICE 873900500
