Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LR 2107 C LR 2107 C, 953876582, 2006-05 > STEERING
Back to
STEERING
LR 2107 C LR 2107 C, 953876582, 2006-05

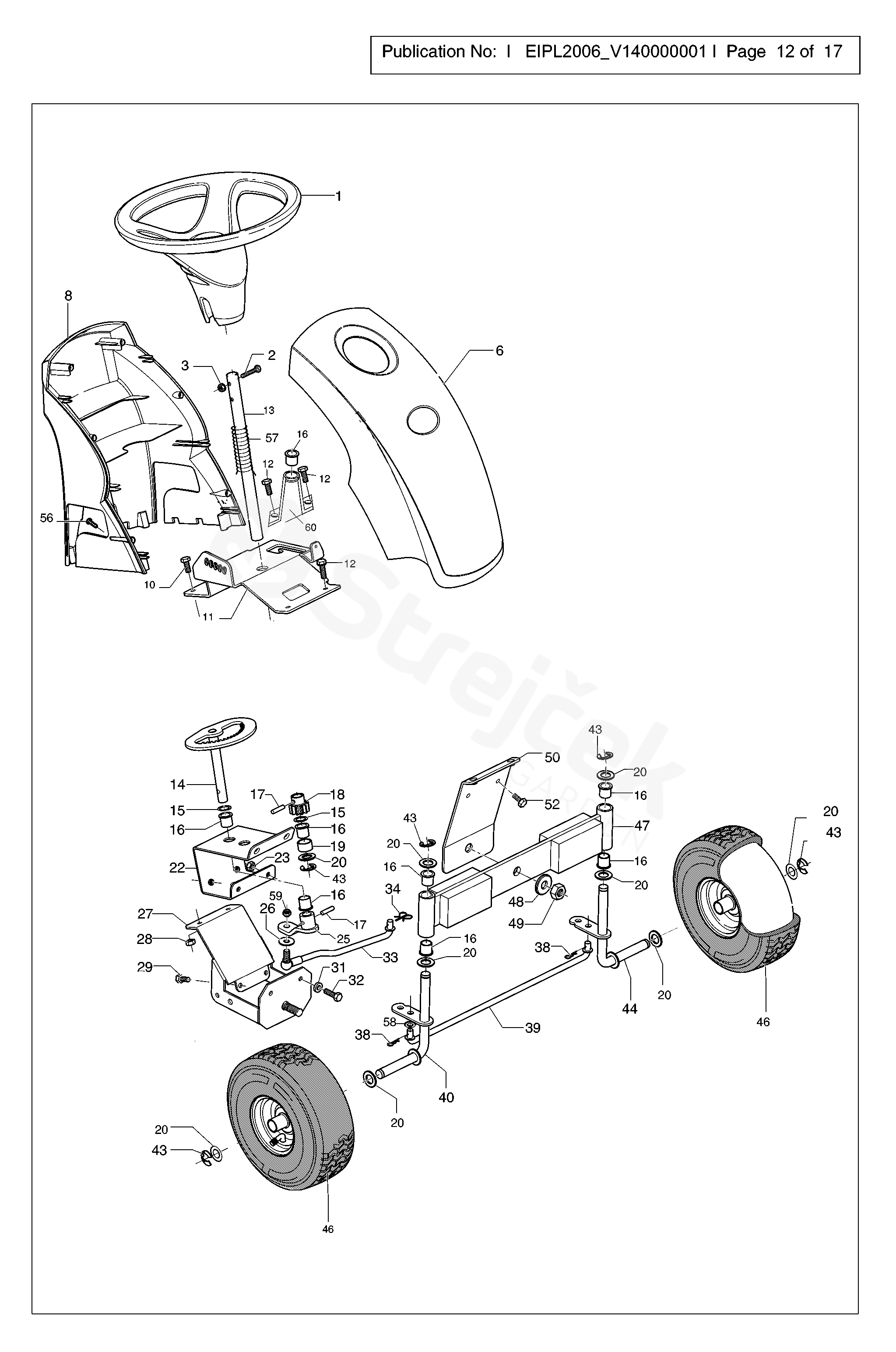

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LR 2107 C, 953876582, 2006-05
1 STEERING WHEEL 531213508
2 SCREW 531212810
3 NUT 531208063
6 HOOD 531213089
8 HOOD 531212134
10 SCREW 531212928
11 PLATE 531211411
12 SCREW 531206922
13 SHAFT 531213507
14 GEAR 531211420
15 WASHER 531212168
16 BUSHING 531206742
17 RESILIENT PIN D6X24, 531212807
18 GEAR 531212154
19 SPACER 531212297
20 WASHER 531206744
22 PLATE 531212924
23 NUT 531212927
25 SUPPORT 531212786
26 WASHER 531207122
27 GEARHOUSING 531213460
28 NUT 531208599
29 SCREW 531205787
31 SPACER 531205732
32 SCREW 531208585
33 ARM 531211413
34 COTTER PIN 10, 531213177
38 KOLÍČEK 531206653
39 ROD 531211414
40 WHEEL-SUPPORT RIGHT, 531212149
43 WASHER 531206926
44 WHEEL-SUPPORT LEFT, 531212148
46 WHEEL 531213537
47 AXLE, 531211418
48 WASHER 531206740
49 NUT 531205455
50 PLATE 531211416
52 SCREW 531205787
53 SCREW 531213093
56 SCREW 531206433
57 SHAFT 531212174
58 WASHER 531207122
59 NUT 531207161
60 SUPPORT 531213473
