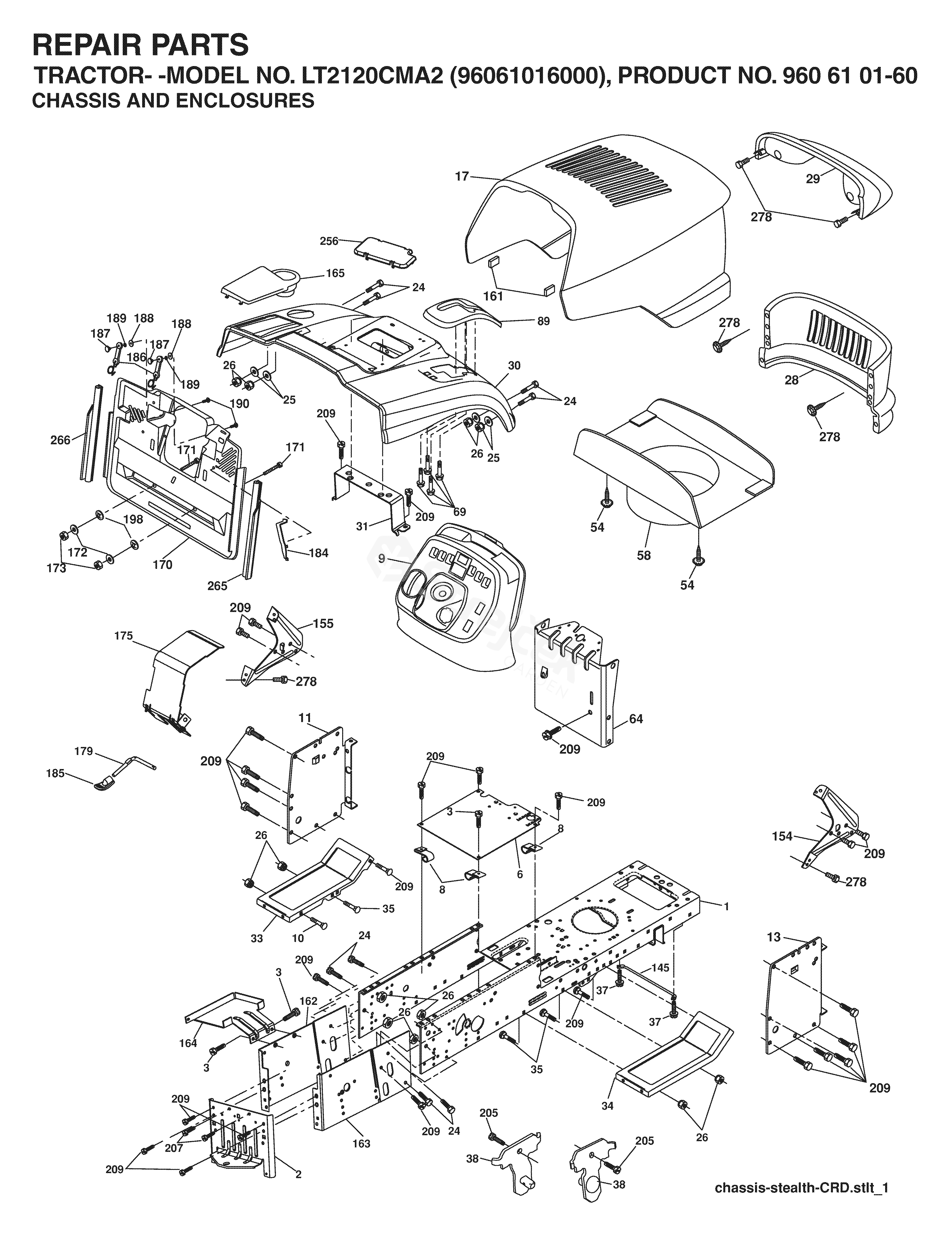

LT 2120 CMA2 LT 2120 CMA2, 96061016000, 960610160, 2006-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LT 2120 CMA2, 96061016000, 960610160, 2006-03

1	CHASSIS	532174620
2	DRAWBAR	532180384
3	SCREW	817060612
6	PLATE	532184419
8	CLIP	532126471
9	TABLEAU*RPL.PAR 532193636428	532194975
10	BOLT	872140608
11	PLATE	532167203
13	PANEL	532178298
17	HOOD	532181351
24	BOLT	874780616
25	PODLOŽKA	819131312
26	NUT	873800600
28	GRILE	532181352
29	LENS	532179761
30	GUARD	532197344
31	BRACKET	532165156
33	PLATE	532181193
34	PLATE	532181194
35	BOLT	872110606
37	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
38	BRACKET	532181748
54	SCREW	532192512
58	DUCT	532175351
64	BRACKET	532184340
69	SCREW	532142432
89	BRACKET	532197366
145	SHAFT	532156524
154	BRACKET	532183925
155	BRACKET	532183926
161	ABSORBER	532164655
162	BRACKET	532180382
163	BRACKET	532180383
164	SUPPORT	532165605
165	COVER	532181356
170	COVER	532199488
171	5/8-11 NUT TOP LOCK	872140620
172	WASHER	819132016
173	MATICE	873510600
175	DOOR TRAP	532188203
179	ROD PIVOT FBI	532188202
184	BRACKET	532174662
185	KNOB	532181101
186	LATCH	532160793
187	NUT	532125004
188	WASHER	819061216
189	WASHER	810071000
190	SCREW	871081010
198	PODLOŽKA	532168937
205	SCREW	817490608
207	SCREW	817670508
209	SCREW	817000612
256	COVER	532181361
265	SEALING	532185704
266	SEALING	532185703
278	SCREW	532191611
