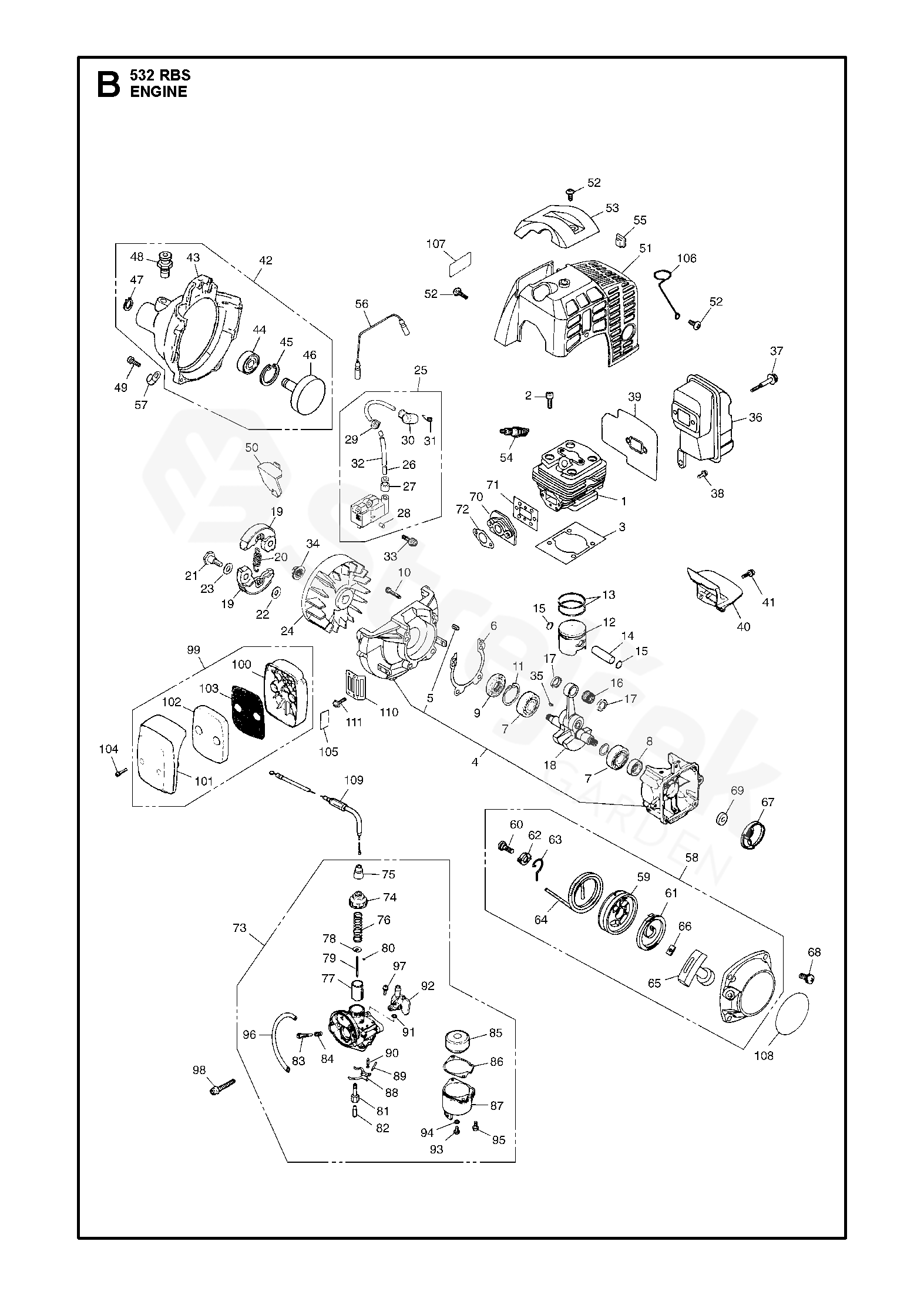

Spare parts - Partlist - 532 RBS 532 RBS, 2015-12 (Latin America) - ENGINE

Everything for your machines

532 RBS 532 RBS, 2015-12 (Latin America)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 532 RBS, 2015-12 (Latin America)

1	CYLINDER	512272201
2	BOLT	513412501
3	GASKET	510064301
4	CRANKCASE	585565201
5	KOLÍČEK	505296101
6	GASKET	505296401
7	BEARING	505296501
8	SEALING	504121501
9	SEAL	505296701
10	BOLT	506609401
11	POJISTNÝ KROUŽEK	504121001
12	PISTON	515375101
13	PISTON RING	510917701
14	PISTON PIN	510916601
15	KROUŽEK	516283001
16	BEARING	505297301
17	PODLOŽKA	513752401
18	CRANKSHAFT	585153001
19	SHOE	513242301
20	SPRING	513371601
21	SCREW	505297801
22	PODLOŽKA	505298001
23	PODLOŽKA	505298101
24	ROTOR	521743401
25	COIL	512274001
26	CORD.HIGH	505298401
27	HUB CAP	505042801
28	PEN	521743701
29	GROMMET	515415301
30	HUB CAP	505298801
31	SPRING	515415201
32	TUBE	521749501
33	BOLT	514233801
34	MATICE	504118001
35	KEY	506689401
36	MUFFLER	521619201
37	BOLT	516071501
38	BOLT	505299501
39	GASKET	526522801
40	PLATE.MUFFLER	505299701
41	SCREW	505299801
42	HOUSING ASSY	521743301
43	HOUSING	525919701
44	BEARING	529269801
45	KROUŽEK	506609901
46	DRUM	576203801
47	KROUŽEK	516124101
48	STOPPER	512527001
49	BOLT	505300201
50	PLATE	505300401
51	COVER	577328101
52	SCREW	505300601
53	GUARD	505301101
54	SPARK PLUG	503235109
55	GROMMET	505301301
56	CORD	521743601
57	CLAMP	521525101
58	RECOIL-A	515366901
59	REEL	504114701
60	SCREW	515367101
61	SPRING.SPIRAL	504115001
62	COLLAR	504114601
63	ARM	504114801
64	ROPE	505302801
65	KNOB	505303401
66	STARTER HANDLE	504114001
67	PULLEY	504114401
68	SCREW	505304401
69	COLLAR	505304601
70	INSULATOR	515369801
71	GASKET.INSU	505304901
72	GASKET	515369701
73	CARBURETOR-A	512272601
74	HUB CAP	513369801
75	HUB CAP	513192101
76	SPRING.THROTTLE	513165101
77	VALVE	521742901
78	SPRING.RECEIVE	513165301
79	NEEDLE	521743001
80	CLIP	513165201
81	JET	513245601
82	JET	521743101
83	SCREW.ADJUST	513370301
84	SPRING	513370401
85	FLOAT	513232201
86	PACKING	513245901
87	CHAMBER	513245801
88	HINGE	513246001
89	PEN	513246101
90	VALVE.NEEDLE	513370501
91	RING	513246601
92	COCK	513251701
93	SCREW	513233201
94	GASKET	513168301
95	SCREW	510464101
96	PIPE	513370701
97	SCREW	510464201
98	SCREW	510483201
99	FILTER HOUSING	577328301
100	FILTER HOUSING	577328401
101	FILTER COVER	577328501
102	ELEMENT	513259301
103	SCREEN	513247701
104	SCREW	515370801
105	LABEL	513185301
106	CLAMP	513494601
107	DECAL	577328801
108	DECAL	577328901
109	CABLE	510939001
110	GUARD	505296201
111	SCREW	505299801
